Neutrik NL4MPRXX Receptacle speakON XX Series 4 Pole Round Flange

The Neutrik NL4MPRXX connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

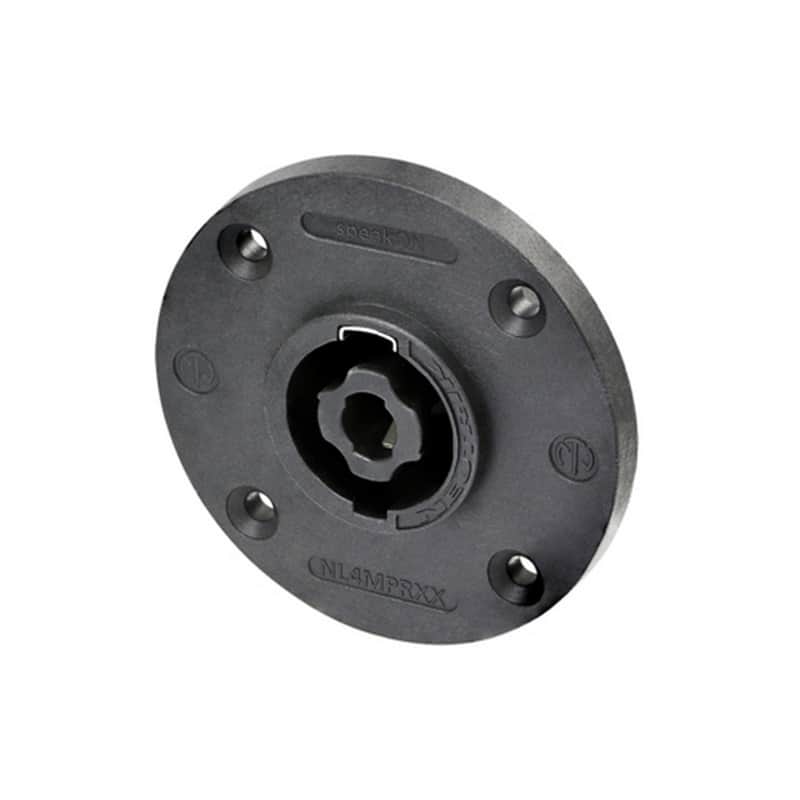

4 pole chassis connector, black round G-size flange, countersunk thru holes, 3/16†flat tabs.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Attention: speakON is NOT to be used as an AC mains or power supply connector!

Key Features

\n
• IEC 61984 certified > IEC 62368-1 compliant
  \n
\n
• Glass reinforced V-0 materials make it extremely robust and dependable
  \n
\n
• Precise keyway for secure mating
  \n
\n
• Accurate twist lock latching system
  \n
\n
• Metal insert in locking area
  \n
\n
• Airtight design - optimized for speaker applications
\n

Technical Specifications

Gender
\n male
\n Contact resistance
\n < 2 m OHMS
\n Dielectric strength
\n 2.8 kVac
\n Insulation resistance
\n >0.1 GO (after dampheat)
\n Rated current per contact
\n 25 A rms continuous (audio rating significantly higher, depending on signal)
\n Rated voltage
\n 250 V ac
\n Attention
\n speakON is NOT to be used as an AC mains or power supply connector!
\n Lifetime
\n > 5000 mating cycles
\n Termination
\n 3/16†flat tabs (e.g., NLFASTON)
\n Locking device
\n Quick Lock
\n Chassis shape
\n Round G-size flange
\n Layout
\n Four thru holes
\n Contact plating
\n Ag
\n Locking element
\n Stainless Steel
\n Shell
\n Polyamide (PA 6.6)
\n Contacts
\n Copper Alloy
\n Flammability
\n UL94 V-0
\n Temperature range
\n -30 Degrees C to +80 Degrees C
