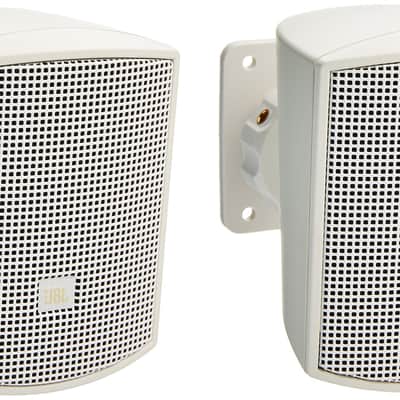

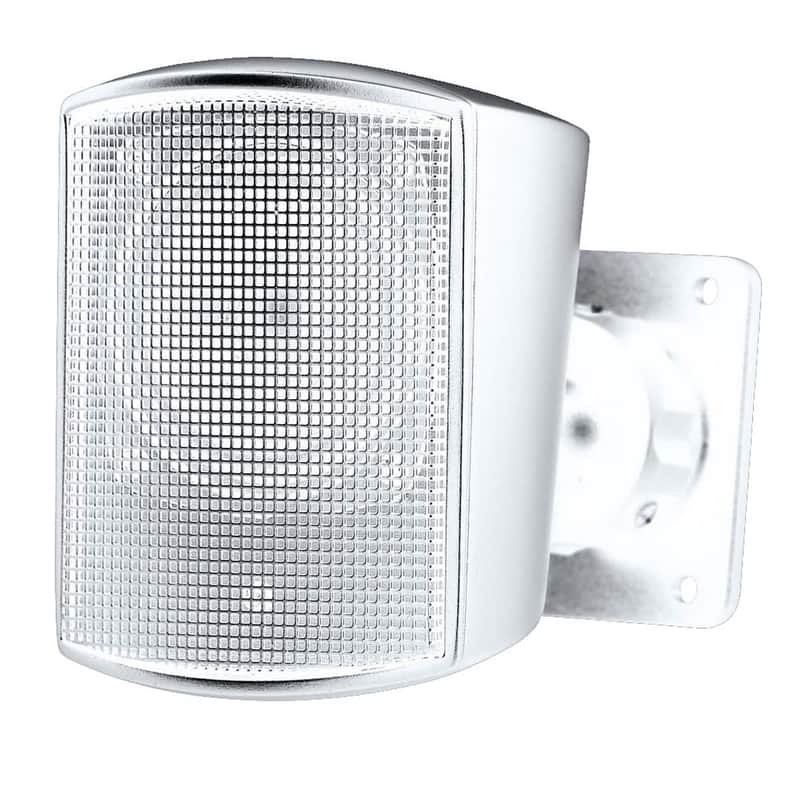

JBL CONTROL 52-WH Surface Mount Satellite Speaker Satellite Loudspeaker

Consistent Impedance and Extended High Frequency Response

The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.

Key Features

• Stylish, unobtrusive design fits into a wide variety of decors
• Ability to intermix with Control 42C in-ceiling and Control 62P pendant satellite speakers
• 16 ohms impedance
• Wall-mount brackets included
• Available in black or white

Technical Specifications

Frequency Range (-10 dB) : 140 Hz – 20 kHz
Frequency Response (±3 dB) : 180 Hz – 17 kHz
Power Capacity : 50 Watts Continuous Program Power (2 hrs)
25 Watts Continuous Pink Noise (2 hrs)
30 Watts Continuous Program Power (100 hrs)
15 Watts Continuous Pink Noise (100 hrs)
Nominal Sensitivity : 85 dB (4.0V/1m = 1W)
82 dB (2.83V, 1m)
Nominal Coverage Angle : 150° x 150° (omnidirectional)
Rated Maximum SPL (1m) : 94 dB average, 100 dB peak
Nominal Impedance : 16 ohms
Transducer Driver : 60 mm (2.5 in) with polypropylene cone, butyl rubber surround, 19 mm (0.75 in) copper-clad coil, vented Nomex® former, secondary bucking magnet, and copper sleeved pole piece for high frequency extension.
Input Connector : Removable locking 2-pin connector with screw-down terminals.
Max wire 12 AWG (2.5 mm2)
Material : High impact polystyrene, painted zinc-plated metal grille.
Dimensions (H x W x D) : Cabinet: 115 x 84 x 96 mm (4.5 x 3.3 x 3.75 in)
Wall bracket: 51 mm (2.0 in)
Net Weight : 0.7 kg (1.5 lbs)
Shipping Weight : 0.8 kg (1.8 lbs)
Included Accessories : Wall bracket (both speaker and wall parts), 2-pin locking connector.
