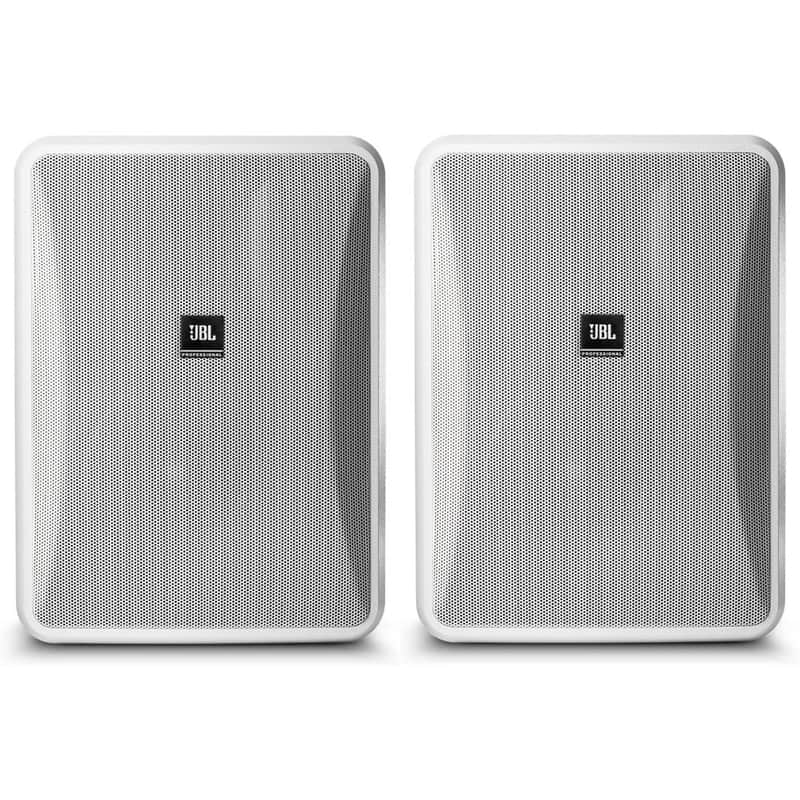

JBL CONTROL 28-1L-WH Low Impedance 8 Ohm Background Speaker White Pair

\n\n High Output 8 Ohm Indoor Outdoor Background Foreground Speaker \n

The Control 28-1L is a two-way 8" speaker with rich sonic character, wide coverage, consistent coverage, versatile mounting, and a contemporary high-design look that fits into a wide range of decors, This makes Control 28-1L an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

\n

Key Features

\n\n

\n
• 8" woofer with woven fiberglass cone
\n
• 1" PEI diaphragm tweeter with fluid cooling
\n
• Contemporary, high-design appearance
\n
• Built-in InvisiBall mounting hardware, plus available U-bracket
\n
• Weather resistant enclosure and transducers
\n
• Wide 100 degrees x 100 degrees coverage
\n
• 120 Watt power handling (240 Watt program)
\n
• High fidelity sound character with broad frequency response of 45 Hz - 20 kHz.
\n

\n

Technical Specifications

\n

Frequency Range (-10 dB)\n45 Hz to 20 kHz\nFrequency Response (+/-3 dB)\n62Hz - 16 kHz\nPower Rating\n240 W Continuous Program (2 hrs)\nMaximum Input Voltage\n27.5 V RMS (2 hrs), 55.0 V peak\nMaximum SPL\n112 dB ave. Continuous Pink Noise (118 dB peak)\nSensitivity\n91 dB, 1W/1m (ave. 100 Hz - 10 kHz)\nCoverage Angle\n100 degrees x 100 degrees\nDirectivity Factor (Q)\n7.3 (averaged 1kHz - 16kHz)\nNominal Impedance\n8 ohms\nCrossover Type\n2nd order low-pass, 1st order high-pass, plus conjugate shaping\nRecommended Protective High-Pass\n45 Hz high-pass (24 dB/oct)\nLow Frequency Driver\n200 mm (8 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.\nHigh Frequency Driver\n25 mm (1 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton voice coil former.\nEnclosure Material\nHigh Impact Polystyrene (HIPS) with 10% glass fill, painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.\nGrille\nHighly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-28WMG-1 (&-WH) available with WeatherMax multi-layer foam and tight-weave mesh vapor barrier backing.\nInstallation\nInvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-28WMG-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.\nEnvironmental\nIP-44 per IEC529 (IP-55 when installed with the optional MTC-28WMG-1 WeatherMax grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-28WMG-1 WeatherMax grille for breaking up driving rain and for especially difficult environments.\nTermination\nScrew-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.\nAgency Rating\nROHS-compliant\nColors\nBlack (RAL9004) or white (-WH, RAL9016)\nDimensions (H x W x D)\n386 x 282 x 219 mm (15.2 x 11.1 x 8.6 in); 277 mm (10.9 in) deep total when mounted on InvisiBall wall-mount bracket.\nNet Weight\n6.2 kg (13.5 lbs)\nShipping Weight\n13.4 kg (29.5 lbs) pair-packed (for 2 speakers)\nIncluded Accessories\nInvisiBall wall-mounting system, 6 mm x 180 mm hex key\nOptional Accessories\nMTC-28UB-1 - Yolk-type U-bracket (&-WH)
