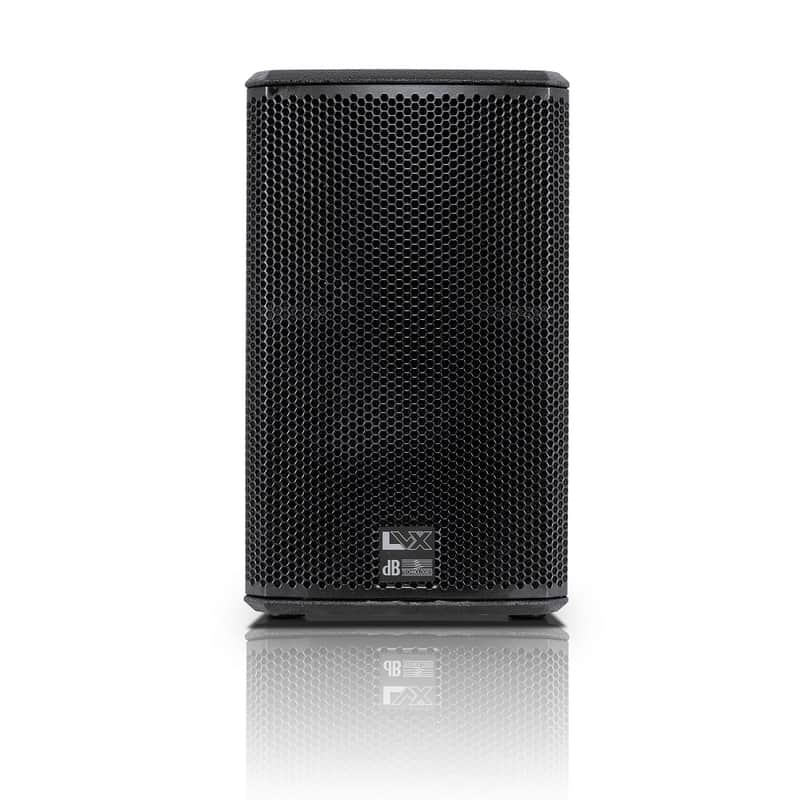

DB Technologies LVX-10-BLM-01 10 2-Way Active Speaker (400W, Black)

The DB Technologies LVX-10 is a 10" 800W speaker designed for versatility. The dispersion of the constant directivity horn is symmetric and rotatable in order to keep the same coverage in case of horizontal use. The digital amplifiers (DIGIPRO® series) are completely silent due to the low thermal dissipation and control audio crossover, frequency response, and acoustic alignment and 2 different preset EQ. the LVX 10 has a single top handle for easy transport. A D36mm pole mount cup on the bottom allows LVX speakers to be placed on poles or tripods.

Mounting bracket options are available separately. All models and related accessories are available in black or white finishes. The white installation version of all four models comes without the pole mount cup and the handles, providing a very transparent look.

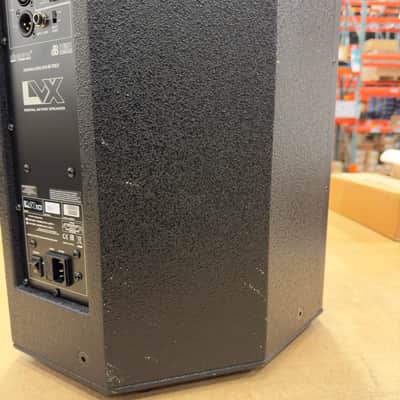

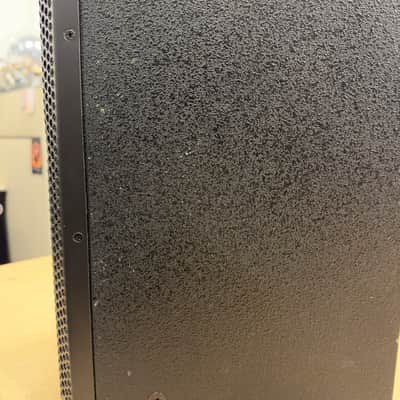

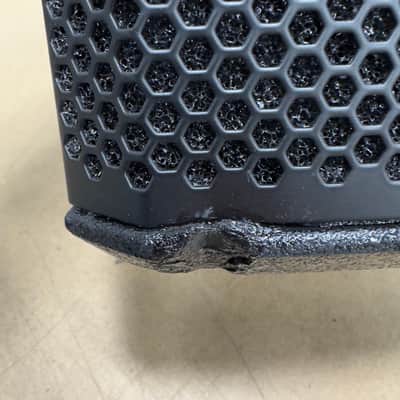

This item has cosmetic flaws but is in working condition. Please contact your Sales Pro for more information on this and other products.

DB Technologies LVX-10 [Blemished Item] Applications:

Live sound

Stage Monitoring

Portable and installed audio-visual systems

Clubs/Restaurants

Ballroom

Houses of worship

Museums and Theatres

DB Technologies LVX-10 [Blemished Item] Features:

• 2-Way Active Speakers
• 400W Class-D Digipro® amplifier
• 10” woofer (2” voice coil)
• 1” compression driver
• 90° x 70° directivity
• Rotatable Compr. Driver Horn
• AD/DA 24 bit 48 kHz
• EQ presets selection
• Peak, RMS, Thermal Limiter
• 12x M8 Rigging points
• No Cooling Fan, quiet operation

DB Technologies LVX-10 [Blemished Item] Specifications:

• Technical Data:
  • Speaker Type: 2-Way Active Speaker
• Acoustical data:
  • Frequency Response [-10dB]: 60 - 20.000 Hz
  • Frequency Response [-6dB]: 70 - 19.000 Hz
  • Max SPL: 125 dB
  • HF: 1"
  • Directivity: 90 x 70°
  • Horn: Rotatable CD Horn
  • LF: 10"
• Amplifier:
  • Amp Technology: Digipro® G2
  • Amp Class: Class-D
  • Peak Power: 800 W
  • PRG Power: 400 W
• Processor:
  • Controller: DSP 24bit/48kHz
  • System Presets: Flat, Processed
  • Limiter: Dual Active Peak, RMS, Thermal
  • Crossover Frequency LF-HF: 2050 Hz
  • Slope LF-HF: 24 dB/Octave
• Mechanics:
  • Housing: MDF
  • Angles Up: Monitor use 40°
  • Handles: (1) side
  • Rigging points: (12) M8
  • Pole Mount: D36 mm
  • Dimensions (WxHxD): 11.8 x 18.9 x 11.8 in
  • Weight: 29.76 lbs
