Teenage Engineering OB-4 (Black) - Portable High Fidelity Loudspeaker [Three Wave Music]

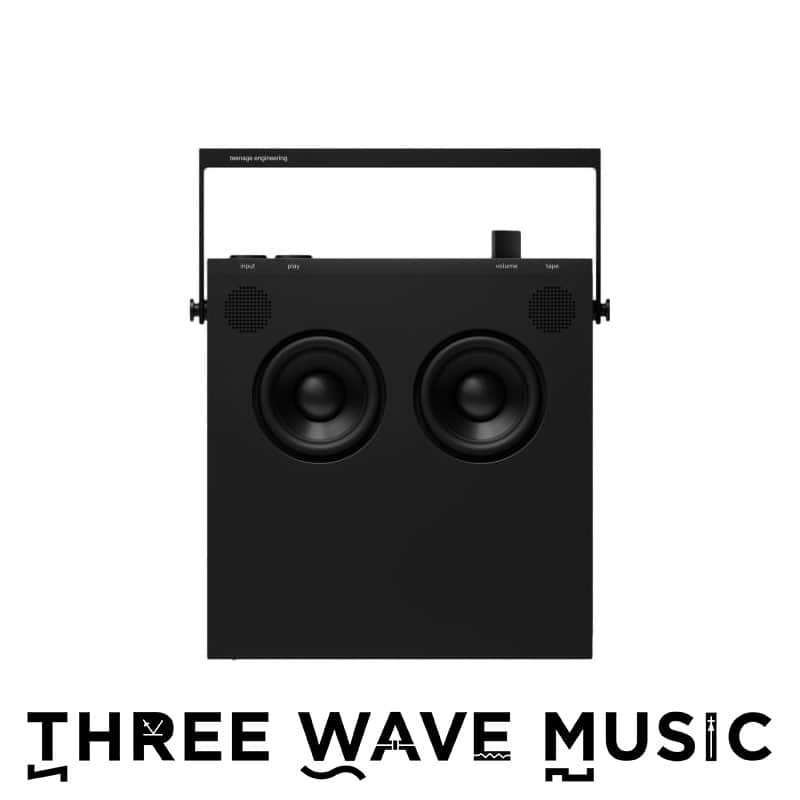

the magic radio.   introducing OB–4, the portable high fidelity loudspeaker with two 4'' bass drivers and a pair of neodymium tweeters that deliver crystal clear, open natural sound with 38 watts per channel — that's around 100 decibels  of incredible sounding stereo. listen using line input, bluetooth, FM radio and disk. the interface is minimal, with only the things you really need. yet if you look below the surface, there's a lot more than meets the eye.      what's all the hocus pocus about?   have you ever wished you could instantly rewind when listening to the radio, to hear the title of the song just played? OB–4 continuously memorises everything you listen to on an endless looping tape*.rewind, time-bend and loop at the flick of your fingertips. on purpose or by accident. instant rewind on radio is just one of the OB-4's magic tricks.   natural sound

four tailor-engineered speaker elements deliver pure quality sound and a stereo field that fills the entire room. a flow-optimised bass reflex duct delivers deep natural bass.

72 hrs listening

how about normal radio listening for a week without charging? the high capacity lipo battery delivers about
8 hours of noise at max volume, or an average of 40 hours on a single charge.

the wireless part

the OB–4 hardware platform supports both high-definition bluetooth classic and bluetooth low energy standards. workswith ortho remote for wireless volume control.

smart antenna we've spent years fiddling with the antenna so you won't have to. and for those tricky listening places, we've included a fine-tuned smart spiral antenna that neatly integrates in the handle.    motorized userinterface.

use your fingers to grab, spin and interact with the sound. digital-motion controlled volume knob and tape reel. we call it the next level of user experience.

turn your mind on with disk mode. if you skip the traditional inputs like line in, bluetooth and FM radio, you end up in disk mode. this is where we will continuously develop new experimental features for the OB–4. it's our public research space, where we allow ourselves to explore and prototype everything that this media-instrument, as we like to call it, can become. for now, there are three functions on the disk; ambient, karma and metronome.   the handle-stand   designed to be played outdoors, in public spaces and at high volume; carried on one shoulder with speaker elements facing the head. note: it is assumed that passers-by share the same musical taste. or why not give it a home in your kitchen? with any luck, the iconic handle makes it a breeze to carry anywhere, and can even be used as a stand for a more relaxed listening position.      technical specifications speaker principle flow optimized bass reflex duct and semi unified chamber.
frequency range 52 – 25000 Hz
dimensions 232.5 x 284 x 57.5 mm
weight
1.7 kg

materials amorphous polymer glass fibre reinforced pc and milled aluminium.
design features fine pitch tweeter grille, gel dampened handle, custom direct drive volume knob and tape dial.
  max SPL @ 1 m stereo configuration 92 dB unsupported wideband
bass capability @ 1 m 104 dB SPL supported


active crossover frequency 3.5 kHz
configuration stereo 2 + 2
tweeter high efficiency ferrofluid cooled neodymium driver.
woofer
long throw high power capacity neodymium driver.
amplifier 2 x 38 W ultra high efficiency class D
wireless Bluetooth® classic (AAC) Bluetooth® 5 LE FM radio
inputs 3.5 mm stereo in (2.8 Vpp for 0 dBFS)
battery life normal volume FM: 72 hours bluetooth high volume: 8 hours


general power requirements AC 100-240 V 50/60 Hz universal built-in power supply
colors
red matte black navy ochre gray orange

included accessories: mains power cable antenna
compatible add-ons: ortho remote shoulder strap
product name OB–4 (ortho book 4)
HARM code 8518220000
country of origin: czech republic
