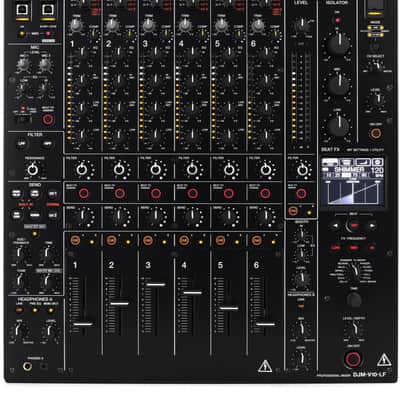

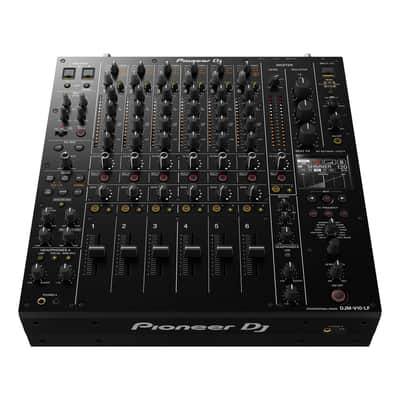

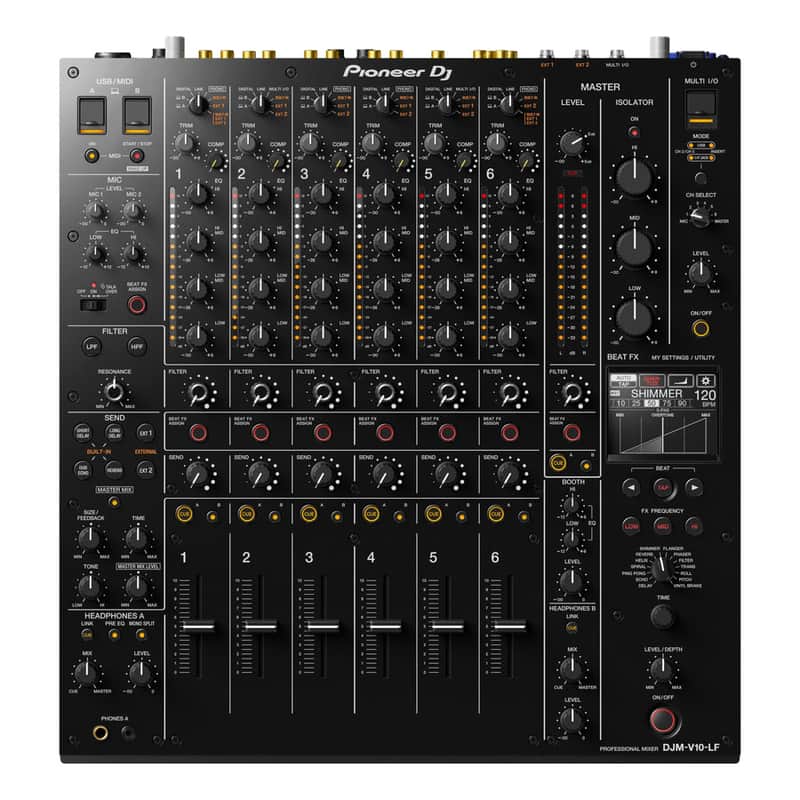

The DJM-V10-LF features new, longer channel faders with optimized curves and a new custom-designed curve preset to enable you to perform smooth and accurate mixes. The 60 mm shaft slide faders enable you to control the volume of the audio source from each channel precisely. What’s more, a brand-new fader curve setting has been added to the unit and the faders have been appropriately weighted to enhance the potential offered by their elongated range. All the other features and specifications of the DJM-V10-LF are the same as the DJM-V10, which has become popular with the most creative DJs since its release in early 2020. The 6-channel unit is loaded with unique features and produces warm audio with energy and presence.\n

Key Features

\n\n

\n
• 3-band master isolator
\n
• Dual headphones output and booth EQ
\n
• Lockable power cable
\n
• DJM-REC compatible
\n
• 6 Channels
\n
• 4-band EQ
\n
• 14 Beat FX
\n

\n

Technical Specifications

\nMIDI Control\nFull assignable MIDI controls\nDVS Control\nrekordbox\nSerato DJ Pro\nTRAKTOR PRO 3\nWhat's in the box\nDJM-V10-LF\nPower Cord\nWarranty (for some regions)\nQuick Start Guide\nPrecautions for Use\nSampling Rate\n96 kHz\nWidth\n17.23 in\nHeight\n4.25 in\nDepth\n18.39 in\nWeight\n26.24 lb\nFrequency Range\n20 - 40000 Hz\nA/D Converter\n32 bit\nD/A Converter\n32 bit\nS/N Ratio Line\n105 dB\nS/N Ratio Phono\n88 dB\nS/N Ratio Mic\n79 dB\nDistortion\n< 0.005 % (LINE)\nChannels\nEQ\n4 band\nPerformance Control\nChannels\n6\nFilter\nHPF\nLPF\nSEND\nShort Delay\nLong Delay\nDub Echo\nReverb\n2 Externals (1/4-inch TS jack)\nMULTI I/O\n1/4-inch jack\nUSB (Type A)\nBeat FX\nDelay\nEcho\nPing Pong\nSpiral\nHelix\nReverb\nShimmer\nFlanger\nPhaser\nFilter\nTrans\nRoll\nPitch\nVinyl Brake\nMic\nMic Connection\nXLR / 1/4-inch Jack Combo\n1/4-inch TRS Jack\nTalkover\n3 Position Switch\nTerminals\nInputs\n6 DIGITAL (Coaxial)\n6 LINE (RCA)\n4 PHONO (RCA)\nSend/Return\n3 SEND (1/4-inch TS jack)\n3 RETURN (1/4-inch TS jack)\nLAN\n1\nUSB\n2 USB B ports\n1 USB A port\nOutputs\n2 MASTER (XLR, RCA)\n1 BOOTH (1/4 inch TRS Jack)\n4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)\n1 REC OUT (RCA)\n1 DIGITAL (AES/EBU)\n1 MIDI (DIN)
