Woodward Schumacher 1190:1 [9500 Ohms] Silvertone B80-15-1C Vintage Output Transformer OT Tested Tube Amp Audio

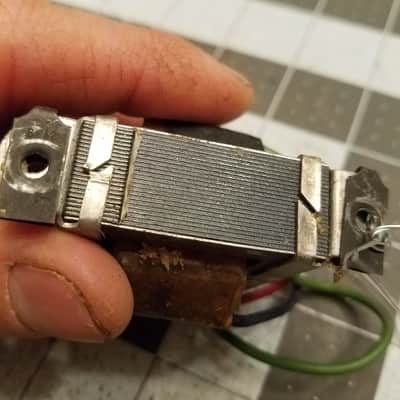

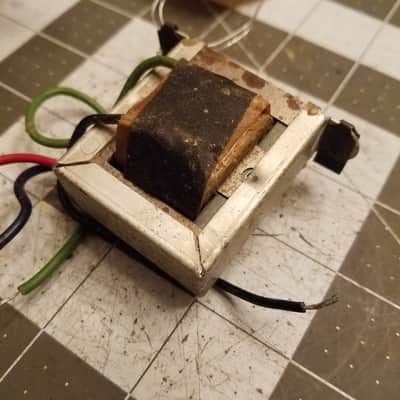

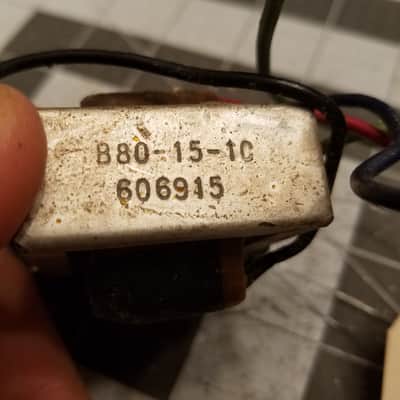

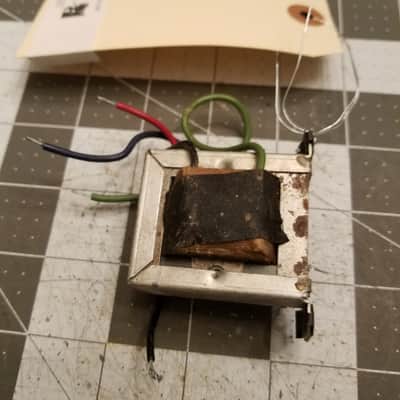

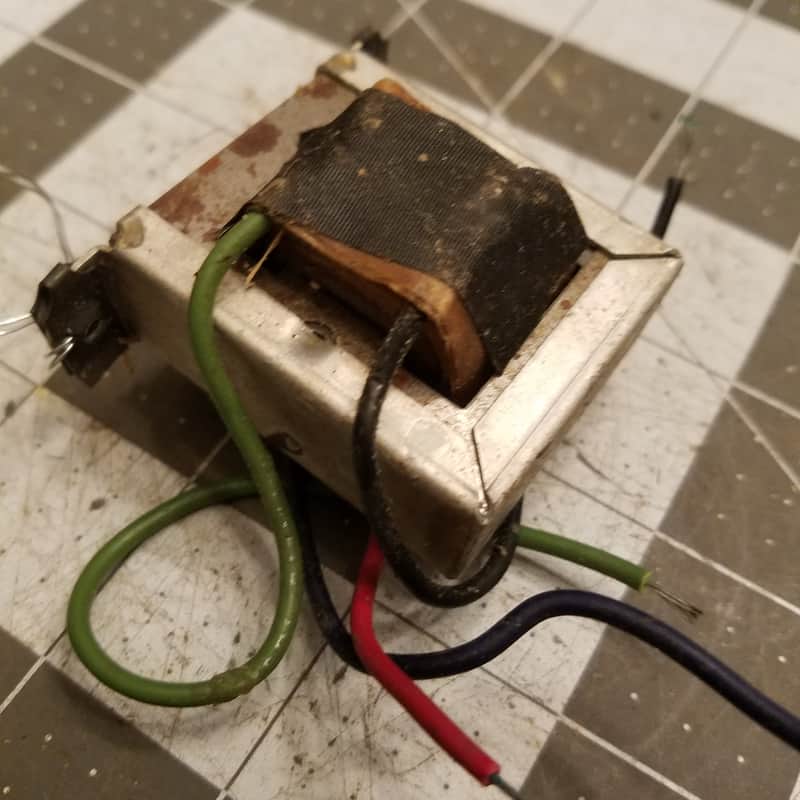

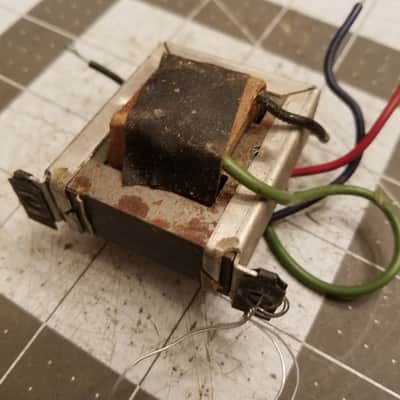

One (1) fully 1.00 kHz AC tested and guaranteed vintage tube amp output transformer. AC testing using an oscilloscope allows us to find and reject transformers with noisy outputs, which a simple resistance or continuity test will not reveal. Made in USA in by Woodward-Schumacher for Silvertone. IEA date code 606915. Weighs 0 lbs 9 oz. Center-to-center bolt spacing is 50 mm, and height of casing is 49 mm. Quantity sometimes available - please enquire.
This transformer was originally used to connect a 6V6 output tube to a speaker.

Using a 10V_pp, 1.00 kHz input to the primary coil, we have verified these connections for this vintage transformer:

The turns ratio (pri:sec) is 34:1, leading to an impedance ratio for the main secondary coil of 1190:1. This winding of the transformer would provide a 9500 ohm load resistance to the tube plate if you hook it to an 8 ohm speaker.


Serial number O-1037.
