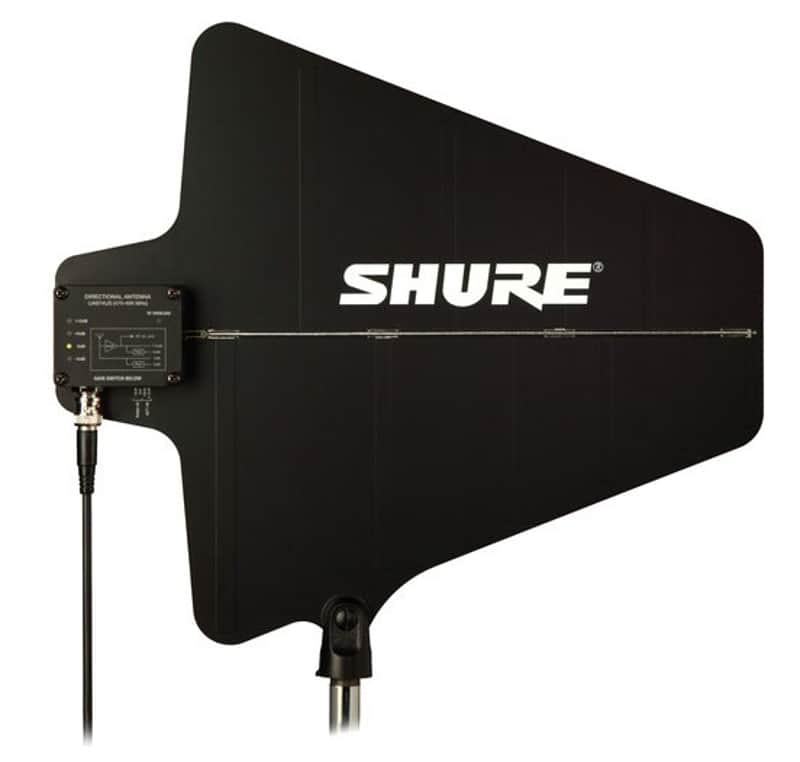

Shure UA874WB Active Directional Antenna 470-900MHz

Enhance UHF wireless system signal reception with the Shure UA874WB, a wideband active directional antenna designed for a frequency range of 470 to 900 MHz. Utilizing a log periodic dipole array, this antenna delivers a cardioid pattern that focuses on the desired coverage area while effectively rejecting RF signals outside that area, surpassing the performance of standard 1/2-wave omnidirectional antennas.

Featuring an integrated amplifier with four gain settings, the UA874WB compensates for signal loss caused by varying degrees of coaxial-cable attenuation.

Versatile installation options include stand-mounting, ceiling suspension, or wall-mounting using the integrated swivel adapter bracket.

Shure UA874WB Features:

• For Shure Receivers/Antenna Distribution
• Improve Wireless Signal Reception
• Wideband Frequency Range: 470 to 900 MHz
• Four-Position Gain Selector Switch
• Low-Noise Signal Amplifier
• Makes Up for Coaxial Transmission Loss
• Rugged Construction
• Mounts Easily to Microphone Stands
• Integrated Swivel Threaded Adapter

Shure UA874WB Specifications:

• RF Frequency Range: 470 to 900 MHz
• Connector Type: BNC, Female
• Impedance: 50 Ohms
• Reception Pattern: 70°, 3 dB Beam Width
• Third-order Overload Intercept Point: OIP3: >30 dBm
• Antenna Gain: 7.5 dBi, On Axis
• Signal Gain: Switchable
• Active: +12 dB, +6 dB (±1 dB)
• Passive: 0 dB, -6 dB (±1 dB)
• RF Overload LED Threshold: -5 dBm, RF Overload LED Does Not Operate for Passive Gain Settings
• Power Requirements: 10 to 15 VDC Bias from Coaxial Connection, 75 mA
• Operating Temperature Range: 0 to 145°F / -18 to 63°C
• Storage Temperature Range: -20 to 165°F / -29 to 74°C
• Dimensions: 14.1 x 12.4 x 1.4" / 359 x 316 x 36 mm
• Weight: 11.2 oz / 317 g
