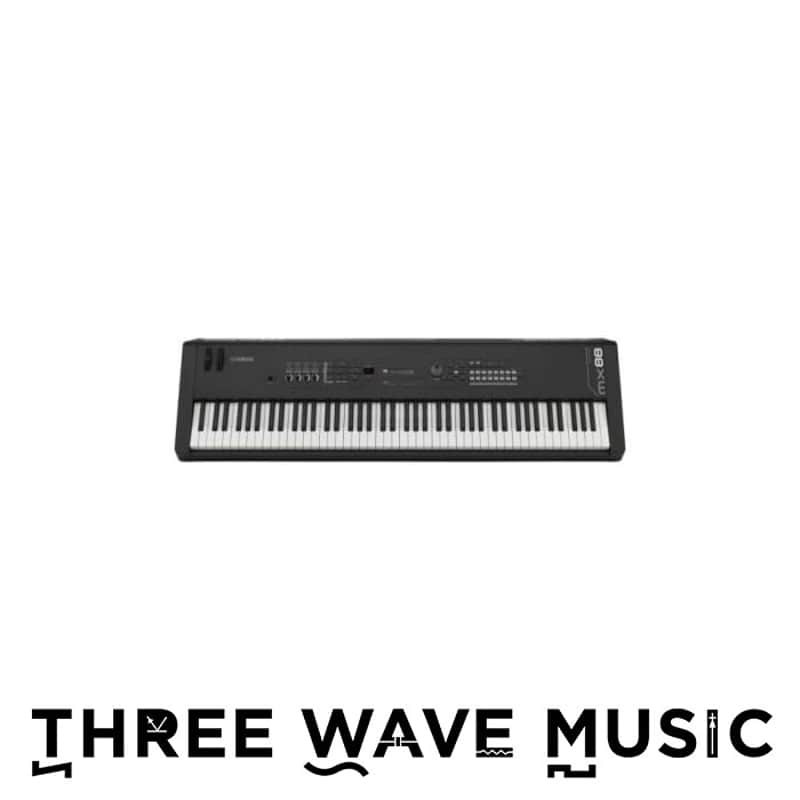

The MX88 is a compact, lightweight Music Synthesizer with over 1000 Voices from the legendary MOTIF series plus deep computer and iOS integration. The MX88 Synthesizer features 88 graded and weighted keys for pianists for legendary performances from the stage to the studio.

• Motif Sound Engine: layer, zone, switch, cycle, randomize and control up to 8 elements within a single voice
• Virtual Circuitry Modeling (VCM) re-creates the sound and behavior of vintage effect and signal processors
• Damper Resonance DSP recreates the sound of the inside of a grand piano when the dampers are off the strings.
• 128 notes of polyphony ensures dropout-free performance playing live or with full 16-track sequences
• GHS weighted action is heavier in the low keys and lighter in the high keys, just like an acoustic piano.
• DAW Remote controls the transport, mixer and software instruments directly from the front panel controls.
• Class Compliant USB Audio/MIDI for true "plug and play" connectivity without installing any drivers
• Record/playback stereo audio and 16 channels of MIDI data via a single USB cable without any external devices
• The USB "TO DEVICE" port allows connection of USB flash drives for storing and recalling data
• A 3.5mm aux line input lets you connect and hear mobile devices, tablets and more through the instrument
• Auto power off saves energy by shutting down after a period of inactivity

Specs Dimensions Width 1320 mm Height 168 mm Depth 405 mm Weight Weight 13.9kg Keyboard Number of Keys 88 Initial Touch Yes Tone Generator AWM2 Maximum Polyphony 128 notes Multi Timbral Capacity 16 parts (Internal) Wave Approx.166 MB (when converted to 16-bit linear format) Voices Preset: 1,106 Normal Voices + 61 Drum Kits, GM: 128 Normal Voices + 1 Drum Kit, User: 128 Normal Voices + 8 Drum Kits Performance User: 128 (16 parts) Effects Reverb x 9 types (42 presets), Chorus x 17 types (88 presets), Insertion Effect x 48types (267 presets) x 4, Master EQ (5 bands) Tempo (BPM) 5 – 300 Songs 27 Demo Songs Patterns 208 Patterns Arpeggio 999 types Sequence formats SMF Format 0 (playback only) Sequence Software compatible with the Remote Control function For Windows®: Cubase 8 or later, SONAR X2 Producer For Mac®: Cubase 8 or later, Logic Pro X, Digital Performer 9 *Functions to be controlled differ depending on the software Controllers Pitch Bend Wheel x 1, Modulation Wheel x 1, Assignable Knob x 4, [DATA] dial x 1 Display 3 digit LED + 20 x 2 line character LCD (backlit) Connectors OUTPUT [L / MONO] / [R] (standard phone jack), [PHONE] (standard stereo phone jack), [FOOT CONTROLLER], [SUSTAIN], MIDI [IN] / [OUT], USB [TO HOST] (Class Compliant support)/ [TO DEVICE], [AUX IN], DC IN Power Supply 9 W Accessories

AC adaptor (PA-150B or an equivalent recommended by Yamaha), Owner' Manual, Cubase AI Download Information
