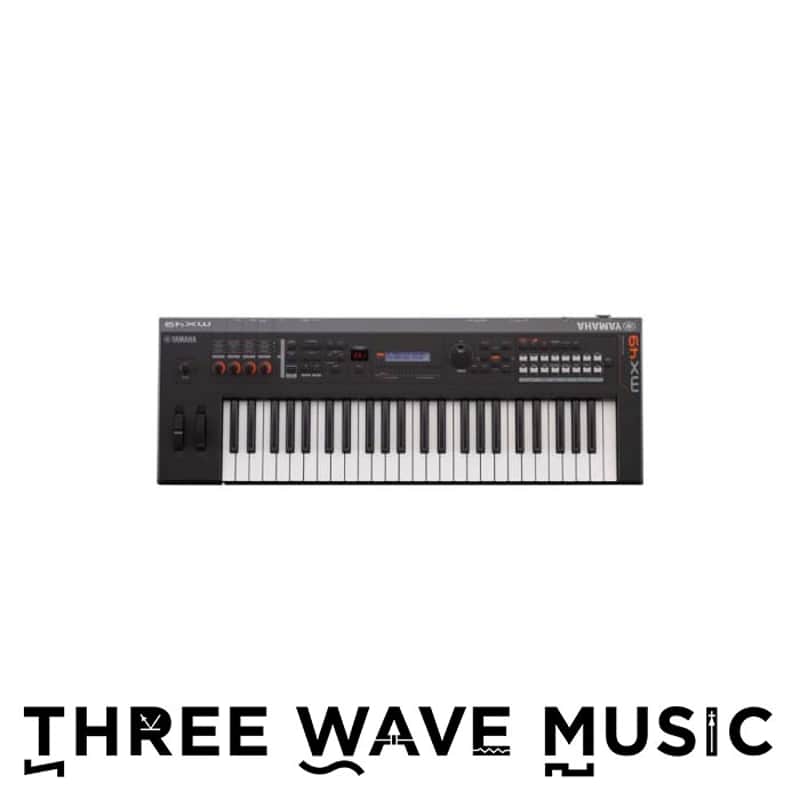

The MX49 is a compact, lightweight Music Synthesizer with over 1000 Voices from the legendary MOTIF series plus deep computer and iOS integration. The MX49 Synthesizer features 49 semi-weighted keys for synth players for legendary performances from the stage to the studio.

• Motif Sound Engine: layer, zone, switch, cycle, randomize and control up to 8 elements within a single voice
• Virtual Circuitry Modeling (VCM) re-creates the sound and behavior of vintage effect and signal processors
• Damper Resonance DSP recreates the sound of the inside of a grand piano when the dampers are off the strings.
• 128 notes of polyphony ensures dropout-free performance playing live or with full 16-track sequences
• 49-key FSB synth action
• DAW Remote controls the transport, mixer and software instruments directly from the front panel controls.
• Class Compliant USB Audio/MIDI for true "plug and play" connectivity without installing any drivers
• Record/playback stereo audio and 16 channels of MIDI data via a single USB cable without any external devices
• The USB "TO DEVICE" port allows connection of USB flash drives for storing and recalling data
• A 3.5mm aux line input lets you connect and hear mobile devices, tablets and more through the instrument
• Auto power off saves energy by shutting down after a period of inactivity

Specs Dimensions Width 830 mm Height 91 mm Depth 298 mm Weight Weight 3.8kg Packing Box Width 981 mm (38-5/8") Height 185 mm (7-5/16") Depth 388 mm (15-1/4") Keyboard Number of Keys 49 Initial Touch Yes Tone Generator AWM2 Maximum Polyphony 128 notes Multi Timbral Capacity 16 parts (Internal) Wave Approx.166 MB (when converted to 16-bit linear format) Voices Preset: 1,106 Normal Voices + 61 Drum Kits, GM: 128 Normal Voices + 1 Drum Kit, User: 128 Normal Voices + 8 Drum Kits Performance User: 128 (16 parts) Effects Reverb x 9 types (42 presets), Chorus x 17 types (88 presets), Insertion Effect x 48types (267 presets) x 4, Master EQ (5 bands) Tempo (BPM) 5 – 300 Songs 27 Demo Songs Patterns 208 Patterns Arpeggio 999 types Sequence formats SMF Format 0 (playback only) Sequence Software compatible with the Remote Control function For Windows®: Cubase 8 or later, SONAR X 2 Producer For Mac®: Cubase 8 or later, Logic Pro X, Digital Performer 9 *Functi ons to be controlled differ depending on the software Controllers Pitch Bend Wheel x 1, Modulation Wheel x 1, Assignable Knob x 4, [DATA] dial x 1 Display 3 digit LED + 20 x 2 line character LCD (backlit) Connectors OUTPUT [L / MONO] / [R] (standard phone jack), [PHONE] (standard stereo phone jack), [FOOT CONTROLLER], [SUSTAIN], MIDI [IN] / [OUT], USB [TO HOST] / [TO DEVICE], [AUX IN], DC IN Power Supply 9 W Accessories

AC adaptor (PA-150B or an equivalent recommended by Yamaha), Owner' Manual, Cubase AI Download Information
