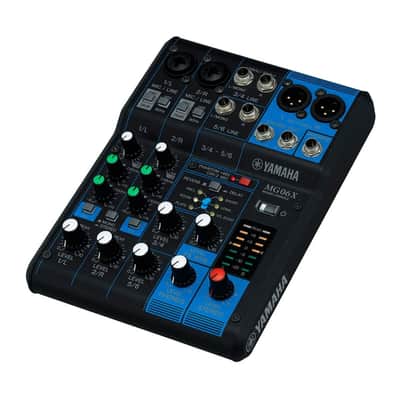

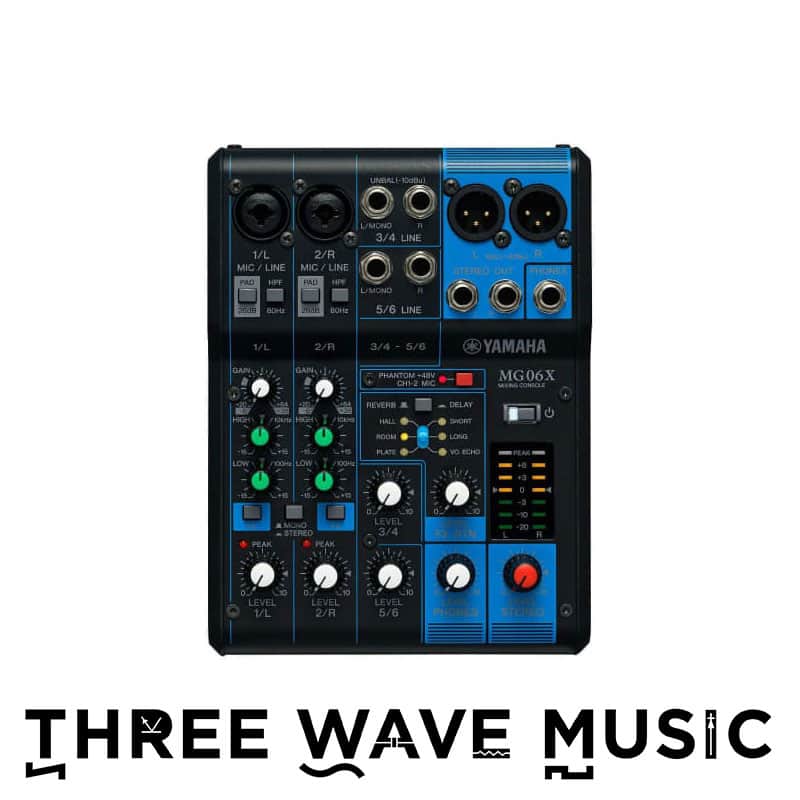

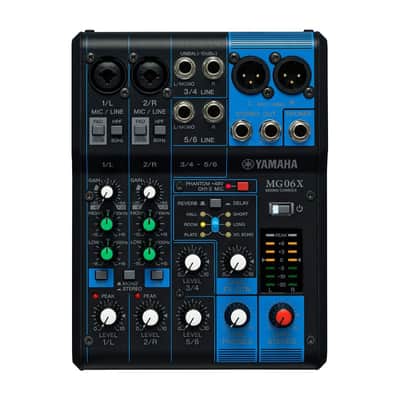

6-Channel Mixing Console

• Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
• 1 Stereo Bus
• “D-PRE” mic preamps with an inverted Darlington circuit
• High-grade effects: SPX with 6 programs
• XLR balanced outputs
• PAD switch on mono inputs
• +48V phantom power
• Metal chassis

SPECS MIXING CAPABILITY On-board processors SPX algorithm: 6 programs I/O Phantom power +48 V INPUT CHANNELS Mono[MIC/LINE] 2 Stereo[LINE] 2 OUTPUT CHANNELS STEREO OUT 2 PHONES 1 BUS Stereo: 1 INPUT CHANNEL FUNCTION PAD 26 dB (Mono) HPF 80 Hz, 12 dB/oct (Mono) EQ HIGH (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving EQ LOW (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping Level Meter 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB] TOTAL HARMONIC DISTORTION 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min FREQUENCY RESPONSE +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min HUM & NOISE LEVEL Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) CROSSTALK -88 dB POWER REQUIREMENTS PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha POWER CONSUMPTION 12 W DIMENSIONS W 149 mm (5.9") H 62 mm (2.4") D 202 mm (7.9") NET WEIGHT 0.9 kg (1.98 lbs.) ACCESSORIES Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A OTHERS Operating Temperature: 0 to +40˚C
