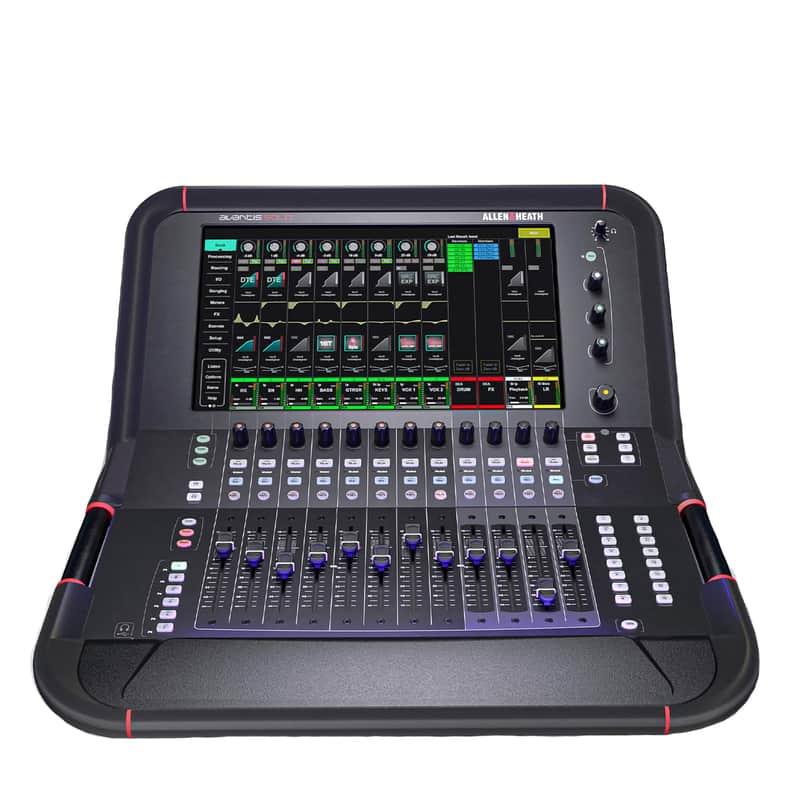

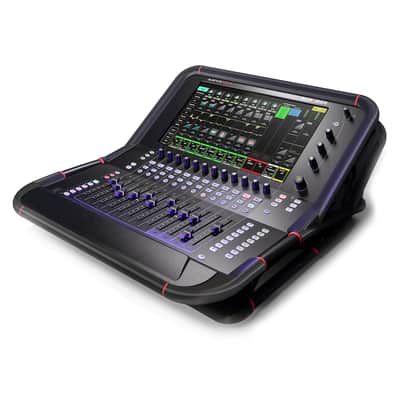

Allen & Heath Avantis Solo 64 Channel 12 Fader Digital Mixing Console with 15.6-Inch HD Capacitive Touchscreen

As Flexible as It Is Small - The Allen & Heath Avantis Solo 64 Channel 12 Fader Digital Mixing Console with 15.6-Inch HD Capacitive Touchscreen

Avantis Solo distills Allen & Heath Avantis into a potent single screen package. Powered by Allen & Heath’s award winning XCVI FPGA, Avantis Solo boasts 64 channels of input processing with 42 configurable busses; an intelligent SLink port connecting Avantis Solo with the Everything I/O range of remote expanders; studio-grade hardware emulations from Allen & Heath’s flagship dLive system via the optional dPack upgrade; and a super strong yet lightweight full metal chassis.

• 96kHz FPGA Processing

• 64 Input Channels
• 42 Bus
• Fully Configurable Mix Architecture
• dPack Upgrade for Additional dLive Processing
• 12 RackExtra FX slots with dedicated stereo returns
• Two 128×128 I/O Ports for Audio Networking
• 16 DCAs
• Range of Remote Expanders

96kHz XCVI Core

Avantis is the third console range to be powered by the 96kHz XCVI core – pioneered by Allen & Heath using next generation FPGA technology, with parallel virtual processing cores delivering 64 full processing inputs and a configurable 42 bus architecture with phase coherency on all mix outputs. XCVI employs variable bit depth for ultimate precision and noise performance, a 96bit mix bus, and offers ultra-low latency at just 0.7ms. XCVI also enables DEEP processing, embedding class-leading processing emulations directly within the input and mix channels.

Easy Expansion with Everything I/O

Avantis Solo is as flexible as it is small, onboard sLink allows for connection to our wide range of audio expanders, whilst two large format I/O card slots support MADI, Dante and Waves cards for a whole host of recording and integration options. For more control you can add our IP remote controllers, connect with MixPad, or Custom Controller, or put the artist in the driving seat with our ME Personal Mixer range.

Continuity UI - Touch the Big Picture

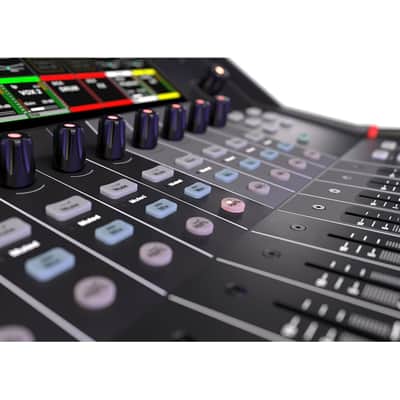

Continuity UI allows you to see and instantly interact with more of what matters, enabling a seamless connection between the physical controls and the crisp 1080p Full-HD display. The channel rotaries let you work gains or pans, then at the touch of a button, dynamically fold the display to show EQ or compressor parameters across the whole bank. Avantis Solo features a FastGrab tab on the right-hand side of the screen, giving you split-second access to key freely-assignable parameters like aux sends, EQ, compressor and FX on the currently selected or specific channel. The whole system is set-up to dynamically surface the information you need at any moment and put control right at your fingertips.

Get dLive Processing with dPack Right out of the box, Avantis Solo is loaded with powerful processing tools that will easily meet the demands of most users and applications. Want more options? Upgrade your console to Avantis dPack, and you’ll get additional processing from Allen & Heath’s flagship dLive system, including Dyn8 (up to 16 instances), DEEP Compressors, and the Dual-Stage Valve preamp. Best of all, all future dPack updates will be automatically included, forever and free of charge. Full Metal Chassis

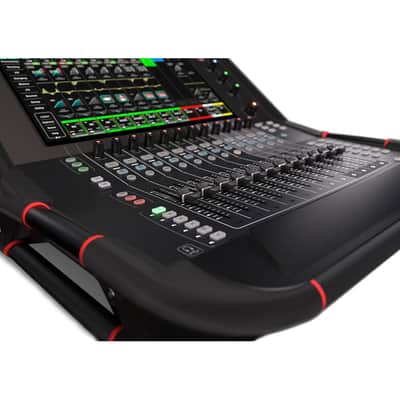

Avantis Solo may be small, but definitely mighty. Encased in a super-strong, full metal tubular exo-skeleton, Avantis Solo effortlessly blends the practicality of a strong and sturdy outershell, with eye catching design.

Dante, Waves and More

Two additional I/O Ports allow Avantis Solo to benefit from the full range of current dLive option cards, including Dante (64x64 and 128x128), Waves, gigaACE, MADI and more, expanding the scope for system integration, digital splits, recording and connectivity the Allen & Heath DT range of Dante enabled expanders. For local I/O, Avantis is well equipped with 6 XLR analogue inputs, 6 XLR analogue outputs, plus AES (1x Stereo In, 1x Stereo Out).

12 RackExtra FX Engines

Allen & Heath has a well-earned reputation for crafting FX emulations that rival the very best third party plug-ins, but with none of the associated hassle. Avantis is armed with 12 stereo FX engines and features the acclaimed RackExtra library of emulations of legendary classic reverbs, gated reverbs, delays, modulators and more. All FX have dedicated stereo returns so you don’t need to waste input channel.

SPECIFICATIONS

Inputs

• Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
• Mic/Line: Preamp Fully recallable
• Input Sensitivity: -60 to +15dBu
• Analogue Gain: +5 to +60dB, 1dB steps
• Pad -20dB Active PAD
• Maximum Input Level: +30dBu (PAD in)
• Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
• Mic EIN: -127dB with 150Ω source
• Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at +24V
• Digital Inputs
• AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
• SRC range 24 bit, 32k - 192kHz, with bypass option

Outputs

• Analogue XLR Outputs: Balanced, Relay protected
• Output Impedance: <75Ω

• Nominal Output: +4dBu = 0dB meter reading
• Maximum Output Level: +22dBu
• Residual Output Noise
• -95dBu (muted, 22-22kHz)
• -90dBu (muted, 0-80kHz)
• Digital Outputs
• AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
• 96kHz sampling rate, globally switchable to 48kHz, 44.1kHz

System

• Measured balanced XLR In to XLR Out, 22-40kHz, minimum Gain, Pad out

• Dynamic Range: 109dB
• System Signal to Noise: -92dB
• Frequency Response: 20Hz - 30kHz (+0/-0.8dB)
• THD+N (analogue in to out) 0.0015% @ +16dBu output, 1kHz 0dB gain

• Headroom: +18dB
• Internal operating Level: 0dBu
• dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)

• Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)

• Meter Peak indication: -3dBFS (+19dBu at XLR out)
• Sampling Rate: 96kHz
• Operating Temperature Range: 0 degrees C to 40 degrees C, 32 degrees F to 104 degrees F

• Mains Power 100-240V AC, 50-60Hz, 150W max
• Audio playback
• Mono/stereo .WAV files
• 16 / 24 bit
• 44.1 / 48 / 96 kHz
• MP3 files
• FLAC files
• Audio Recording
• Stereo .WAV files
• 24 bit
• 96 kHz

Weights and Dimensions

• Unboxed
• Width x Depth x Height: 546 x 627 x 269 mm (21.5 x 24.7 x 10.6 in)
• Weight: 17.5kg (38.6lbs)
• Boxed
• Width x Depth x Height: 830 x 730 x 425 mm (32.6 x 28.7 x 16.7 in)
• Weight: 24.3kg (53.6lbs)

Manufacturer: Allen & Heath
Model: AVANTIS-S/12X
SKU: I758483-N-7-WHXA
UPC: 6938122253360
