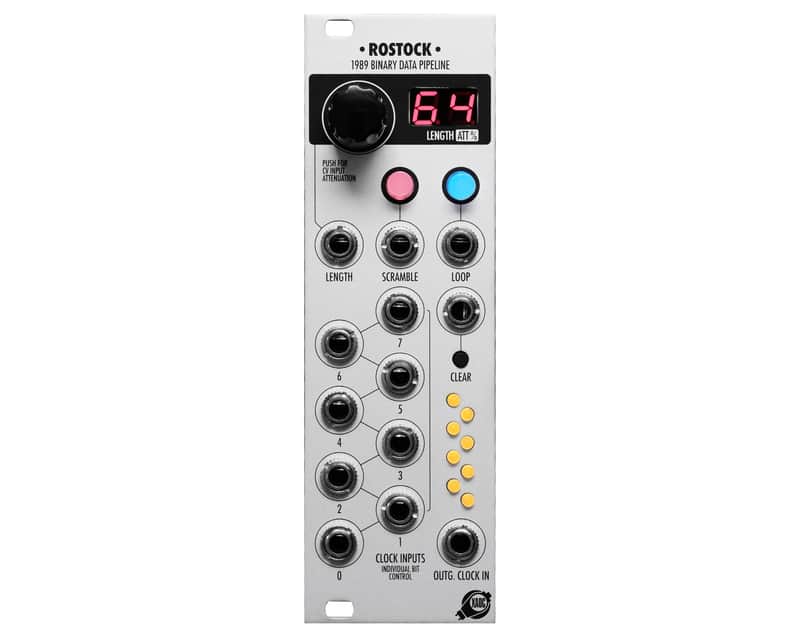

1989 XAOC Devices Rostock binary Data Pipeline

The Rostock is another part of the expanding Leibniz Binary Subsystem which connects the other Leibniz modules using the data ribbon connectors at the back. It functions as a digital version of a BBD delay or analog shift register. It consists of a chain of memory cells passing bits to each other every clock cycle like a data pipeline.
The delay length is variable from 1 to 64 stages (with optional looping and scrambling). The Rostock can even control video signals because the bits can change at extreme rates (up to 2MHz).

Features:

• Leibniz Binary Subsystem component
• Shift register / delay memory of up to 64 stages
• Voltage controlled length
• Looping and scrambling
• Optional individual clock input to each bit line

Technical Details:

• Eurorack synth compatible
• 8hp, skiff friendly
• Current draw: +70mA/-40mA
• Reverse power protection

• 8 HP

CVModulation Digital Looper Delay
