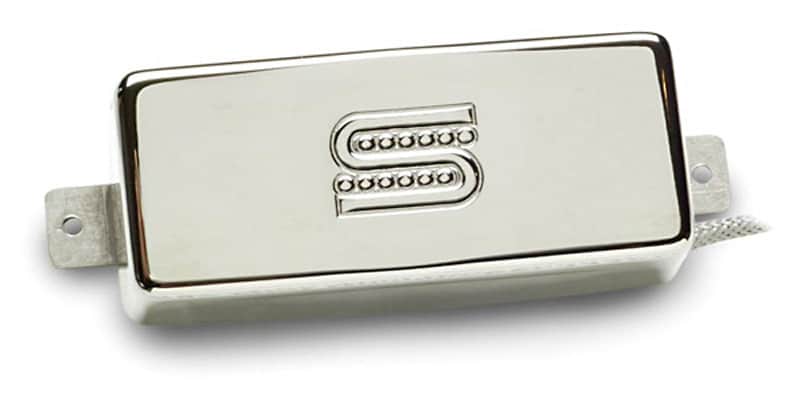

The Seymour Duncan SM-1 Vintage Mini Humbucker - Bridge. FREE shipping anywhere in the USA!

Application
Vintage-correct replica of classic Firebird® pickup. Great for jazz, blues, rockabilly, classic rock and heavy rock.

Description
The sound is somewhat of a tonal cross between a single-coil and a humbucker. They're brighter and livelier than a full-size humbucker with more "bell tone." The Alnico 5 magnet and moderate output coil windings make it an authentic tonal reproduction of the great sound of a classic Firebird®. Comes with vintage-style single-conductor hookup cable.

Complete setup
Available in both neck and bridge versions. Also, the Vintage is commonly used in the neck with an SM-2 Custom or SM-3 Seymourized in the bridge position for higher output and versatility.

Guitars
For balanced and warm instruments. Works especially well with soft wood bodies (e.g., mahogany and swamp ash) and rosewood fingerboards.

Available mods
Available in both neck or bridge models.

Audio courtesy of

About the Guitars: We used a a '70s Firebird with a fresh set of American Flyer 10-46 gauge strings.

About the Amps: We employed the "highest common denominator" philosophy in our amp selection. For clean tones, we used a silverface Fender Super Reverb with stock 4x10 "blue frame" speakers. We kept the Bright Switch "On" throughout. For crunch tones, we used a well-worn Marshall JCM 800 50 watt master volume head through a new Marshall 1960A Celestion®-loaded 4x12 cabinet. We plugged into the High output. With both amps we close miked straight-on with SM-57s through a Soundcraft Spirit Folio Mixer.

These are the amp settings:

Fender Super Reverb Bright Switch 3 5 6.5 4.5 2.5 On Volume Treble Midrange Bass Reverb Marshall JCM 800 Output 5.5 10 4 4 2 7 High Presence Bass Midrange Treble Master Pre-Amp



Players
Sonny Landreth, Rick McRae / George Strait Band, Martha Davis / Motels, Tom Principato

Specifications
- Cable: 1 conductor braided shield
- DC Resistance: Neck: 6.54 k, Bridge: 7.57 k
- Resonant Peak: Neck: 7 KHz, Bridge: 6 KHz
- Magnet: Alnico V Bar
- EQ (B/M/T): 5 / 4 / 6

Returns:
Most pickups can't be returned once installed because of the installation process that requires soldering, etc. Seymour Duncan however offers a fantastic 21 Day Return Policy! Here's the details:
Seymour Duncan / Basslines offers our 21 Day Real World Exchange Policy on all new pickups purchased in the U.S. and some other participating countries, which states the following: If for any reason you're not satisfied with the pickup's sound or construction, return it and your receipt to your dealer, or direct to the factory within 21 days for exchange with another pickups of equal or lesser value. To do this, please just and include your invoice number and the new pickup you'd like to exchange towards.
