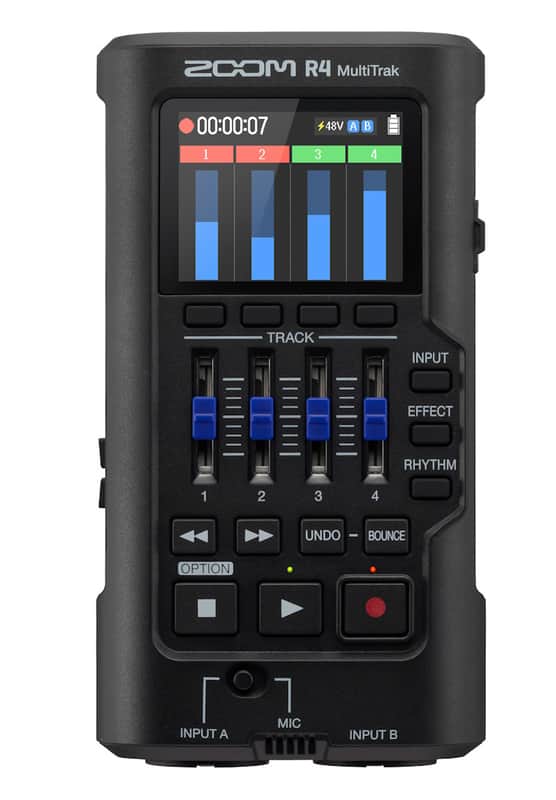

Zoom R4 Multi-Track Recorder with 32-Bit Float Recording w/ EQ & Effects

All of our engineers are musicians and they designed the R4 MultiTrak to empower musicians to explore big ideas. With a unique dedicated ‘bounce track’ and 32-bit float recording, the R4 is perfect for capturing your most ambitious compositions. With the R4, you can record up to four tracks, mix and then bounce them to the dedicated ‘bounce track.’ This lets you free up additional tracks to keep adding layers. You can also ‘undo’ your last bounce, allowing you to mix your tracks further or record new ones if necessary. 32-BIT FLOAT RECORDING Don’t worry about your audio signal clipping. The R4 captures perfect audio with every take, without the need to set gain. The R4 has 2 XLR/TS combo inputs with tried and tested Zoom preamps. You can plug in microphones, instruments, keyboards, and more. Each track features a 3-band EQ, pan, echo, and reverb to refine your mix. Apply effects to input A such as amp simulations, delays, distortions and more. The R4 features a high-quality built-in microphone, perfect for acoustic guitars, vocals, or capturing a quick reference recording. The R4 has a rhythm section preloaded with over 80 different drum patterns to play along with featuring genres such as rock, hip hop, funk, heavy metal, and more. Tracks that you record are automatically saved individually, even after they have been bounced. These tracks or any other audio files can be loaded into a project on the R4 The R4 is also a powerful 2-in/ 2-out USB audio interface with 32-bit float technology. Connect it to either your computer or smartphone. With a fader for each track and dedicated hardware buttons for the most used functions, you won’t need to menu dive to record your music. The R4 can be powered by 4 AA Batteries, or through its USB-C port. Transport Controls Play, stop, and record functions. Bounce / Undo Controls Create bounces and undo your last bounce. Input Selection (Button) Assign inputs to recording tracks. Effects (Button) Access input effects. Rhythm (Button) Access rhythm and metronome controls. Inputs 2 XLR/TS combo inputs. Built in Mic - High-quality built-in microphone. Headphone Output - Stereo 3.5mm output to monitor your recordings. Headphone volume control - Adjust the volume of the headphone output. LCD Screen - 2 inch Color LCD display. Micro SD Slot - Up to 1 TB Micro SD card. Tripod mount - ¼”-20 thread to mount to tripods and other accessories. Rubber Feet - Non-skid feet to keep the R4 from moving while using it on a table.

• INPUTS CHANNELS: 2(XLR/TS INPUTS)+1(BUILT IN MIC) XLR/TS INPUTS CONNECTORS XLR(2: HOT)/TS combo jacks INPUT GAIN: Adjustment unnecessary(dual AD converter circuits used) INPUT IMPEDANCE: XLR 2.3kΩ , TS 1MΩ MAXIMUM INPUT LEVEL: MIC: +4 dBu PHANTOM POWER: +48V EQUIVALENT INPUT NOISE: −120 dBu or less (IHF-A) MIC INPUT MIC TYPE: Omni-directional SENSITIVITY: -32 dB, 1 kHz at 1 Pa INPUT GAIN: Adjustment unnecessary (dual AD converter circuits used) MAX SOUND PRESSURE INPUT: 115 dB SPL
• OUTPUTS HEADPHONE CONNECTOR: 3.5mm stereo mini jack MAXIMUM OUTPUT LEVEL: 20 mW +20 mW(32 Ω load)
• RECORDING RECORDING MEDIA 4GB–32GB microSDHC cards 64GB–1TB microSDXC cards
• WAV SUPPORTED FORMATS 48kHz 32-bit float mono/stereo MAXIMUM SIMULTANEOUS RECORDING TRACKS: 2 INPUT POWER SUPPLIES BATTERIES: 4 AA AC ADAPTER: ZOOM AD-17 (DC 5 V/1 A)• USB bus power is supported.
• DISPLAY LCD: TFT/240x320dot, BACK LIGHT:WHITE,
• USB CONNECTOR: USB Type-C
• MASS STORAGE CLASS: USB 2.0 High Speed
• AUDIO INTERFACE WITH REC CLASS: USB 2.0 High Speed SAMPLING RATE: 48kHz BIT RATE: 24-bit/32-bit float CHANNELS: 2 in/2 out

  MPN: ZR4
