Power

The MXR Wylde Audio Chorus is powered by a single 9-volt battery (remove bottom plate to install), a 9-volt AC adapter such as the Dunlop ECB003, or an MXR Brick Series power supply.

Directions

• Run a cable from your guitar to the WA38’s INPUT jack and run another cable from the WA38’s OUTPUT jack to your amplifier. Optional Stereo Mode: run an additional cable from the THRU OUTPUT jack to the input of a second amp. Using this jack automatically sends the delayed signal only to the MONO output jack when the effect is on and outputs a buffered copy of the input signal.
• Start with all knobs at 1o’clock. Turn the effect on by depressing the footswitch.
• Rotate the DEPTH knob clockwise to increase the intensity of the effect or counterclockwise to decrease it.
• Rotate the RATE knob clockwise to increase the speed of the chorus effect or counterclockwise to decrease it.
• Rotate the LEVEL knob clockwise to increase overall effect volume or counterclockwise to decrease it.
• Rotate the LOW knob clockwise to retain more low end or counterclockwise to cut more low end.
• Rotate the HIGH knob clockwise to retain more high end or counterclockwise to cut more low end.

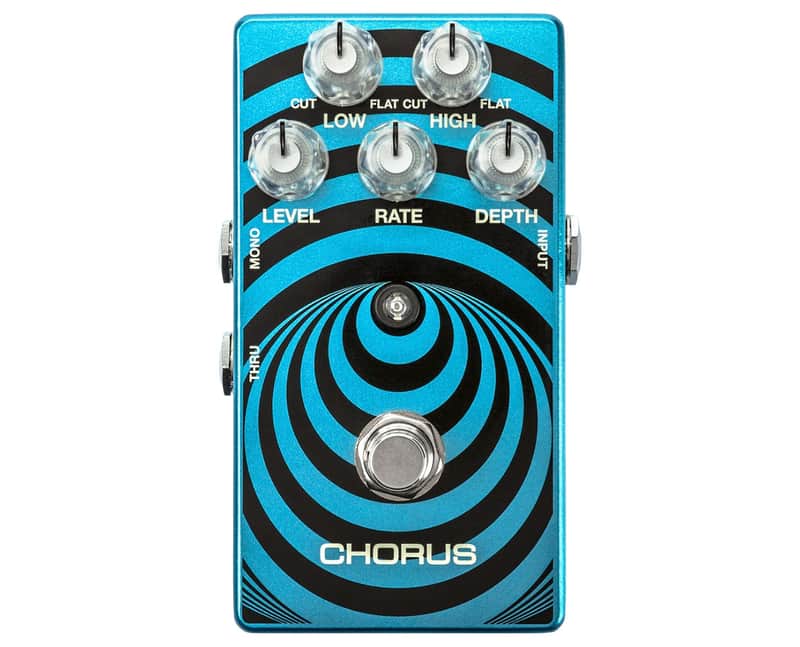

• Footswitch toggles effect on/bypass (blue LED indicates on)
• Thru Output jack engages stereo mode
• Level knob controls overall effect volume
• Low knob controls amount of low frequency cut
• High knob controls amount of high frequency cut
• Depth controls overall intensity of chorus effect
• Rate knob controls speed of chorus effect

Features

• Input Impedance : 1 MO
• Output Impedance : 1 kO
• Noise Floor : -96 dBV (effect on) -106 dBV (bypass)
• Tone Controls : (Low) 70 Hz to 800 Hz 12 dB/oct shelf
• Tone Controls : (High) 660 Hz to flat 6 dB/oct shelf
• Bypass : Buffered
• Current Draw : 13 mA
• Voltage Requirements : 9 volts DC
