Connect Nearly Anything, Even Wirelessly - The Heritage Audio R.A.M. 1000 Desktop Monitor Controller

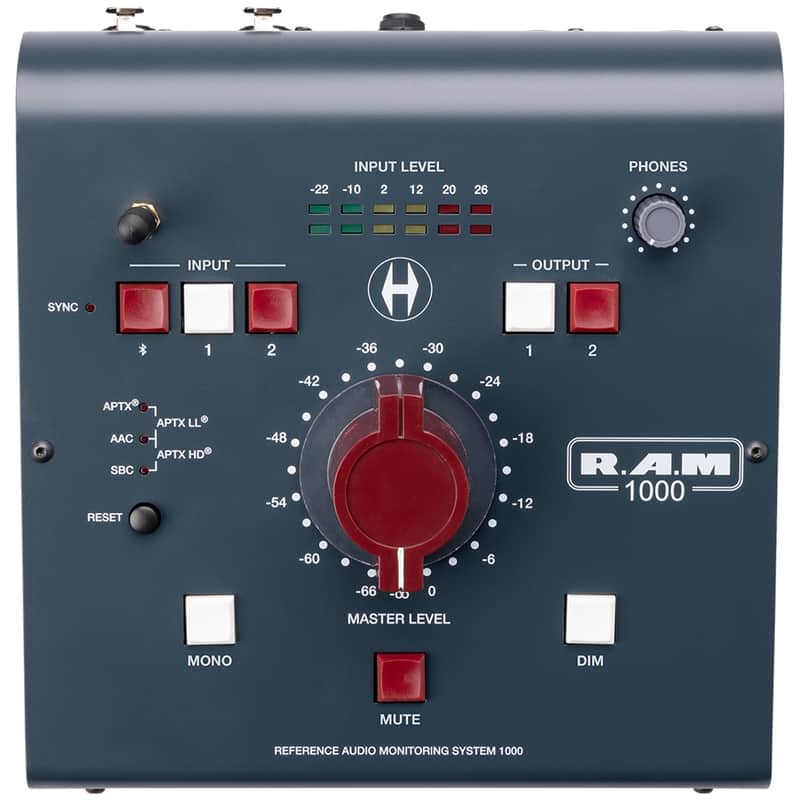

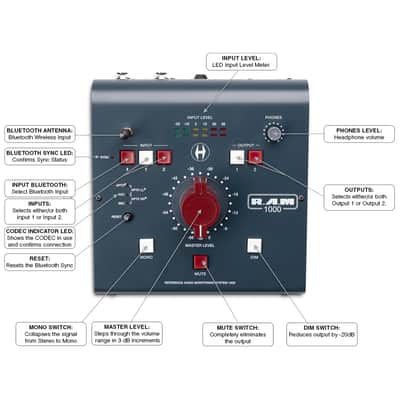

With the RAM1000 you´ll have everything you need to control what you hear right at your fingertips. The new addition to the Heritage Audio family of monitor controllers could not be easier to navigate. Things are kept simple to make sure they don´t get in the way of your creativity. Operation is intuitive with 3 selectable input buttons to the left and 2 output buttons to the right with a huge, beautiful Marconi type knob dead center to make sure you always control exactly what you want. The addition of the ubiquitous MUTE, DIM and MONO keep those options within reach. There has also been a high quality headphone output included for when you need to make a critical listening decision that only headphone monitor can offer.

Bluetooth has basically become a standard within studios around the world in the last few years. Therefore, it was an easy call to make sure that the RAM1000 was also prepared to provide it as well as including all latest CODEC options to insure the highest quality transmission possible. There is even an option to switch the routing from OUTPUT 1 to your soundcard/interface for recording…. This will make it easy to plug in an instrument to rehearse along to a mix and when ready, simply route it on to your recording device. Couldn´t be easier…

• Bluetooth reception with the latest codecs
• Use multiple Input and Output selections simultaneously
• High-quality headphone monitoring
• Quick option to send a signal out to your interface for recording
• Classic European console design, inspired by the best console master sections with exclusively-designed Master Level control
• Easy USB-C powering (cables included)

SPECIFICATIONS

• THD+N Ratio @ 1kHz 26dBu: <0.01%.
• Noise Floor @ Input GND: <-88dBu.
• Phase @ 1kHz: 0º.
• Dimensions (WxHxL): 190mm x 85mm x 200mm.
• Balanced and floating inputs and outputs: Inputs and Outputs TRS JACKs, unbalanced compatible.
• 24 Step Passive Attenuator: In 3dB steps for sub-tenth dB precision between left and right channels.
• Mute: Less than 100dBu.
• No added distortion or noise.
• Insertion loss: Less than 0,2dB.

Manufacturer: Heritage Audio
Model: RAM SYSTEM 1000
SKU: I758499-N-1-WHXA
UPC: 790757533295
