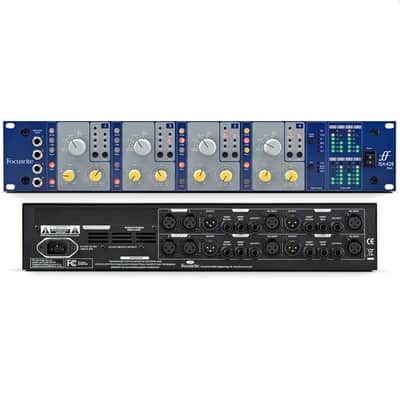

ISA 428 MKII  FOCUSRITE

 4 Channel Rackmount Microphone Pre-Amplifier

ISA 428 MkII incorporates four of Focusrite's renowned mic pres in a simple-to-operate 2U enclosure, placing four mic preamps, instrument inputs and line ins at your fingertips. The original Focusrite mic pre was designed to suit the microphones of the time; today's model makes one small change, adding three additional input impedances to the classic ISA 110 setting, allowing you to match any microphone, old or new, and access a wide range of sounds, from the character and warmth of a vintage mic to the clear transparency of a modern design.

Each mic pre has the option of mic, line or the front-panel instrument input, with variable input impedance to ensure you are getting the best performance from the source. Up to 60dB of gain is available on the four-position rotary and gain range switches, with a further +20dB of continuously variable trim, meaning a huge 80dB of gain is available should it be required. The high-pass filter features variable cut-off frequency between 16 and 420Hz. An array of 6-segment LED meters show peak signal level for the four mic pres, in addition to the four direct inputs to the optional A-D card. Switchable rear-panel insert points allow the use of inline processors such as compression.

Features:

• Classic ISA mic preamp design featuring Lundahl LL1538 input transformer

• Instrument and line inputs with dedicated input connectors and front-panel switch

• Switchable input impedance including classic ISA 110 setting

• Variable cut-off frequency high-pass filter

• Dedicated switchable insert point

• Per-channel six-segment LED peak-level meters

• Optional A-D card with up to 192kHz, 24-bit sampling via ADAT or AES3

• Brainworx bx_console Focusrite – exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules

Mic Inputs

• Frequency response at minimum gain (0dB) (Mic): -0.35dB at 20Hz and –3dB at 122kHz

• Frequency response at maximum gain (60dB) (Mic): –2.5dB at 20Hz and –3dB 103kHz

• Gain range (Mic): 0dB to 60dB in 10dB steps, plus 0dB to 20dB continuously variable trim

• Maximum headroom (Mic): 7.4dBu

• Noise EIN (Mic): -126dB (measured at 60dB of gain with 150O termination and 20Hz/22kHz bandpass filter)

• Noise at main output with unity gain (Mic): -98dBu (measured with a 20Hz/22kHz bandpass filter)

• SNR (Mic): 123dB (relative to max output 25dBu) 120dB (relative to 0dBFS ( 22dBu)

• CMRR (Mic): 88dB

• Input Impedance, variable (Mic): 600O, 1400O, 2400O, 6800O

Line Inputs

• Frequency Response at unity gain (0dB) (Line): -0.3dB at 20Hz and –3dB at 94kHz

• Gain range (Line): -20dB to 10dB in 10dB steps, plus 0dB to 20dB continuously variable trim

• Maximum headroom (Line): 25.4dBu

• THD N (Line): 0.002 (measured with 4dBu input signal, 0dB gain setting, with a 20Hz/22kHz bandpass filter)

• Noise at main output with unity gain (Line): -91dBu (measured with a 20Hz/22kHz bandpass filter)

• SNR (Line): 116dB (relative to max output 25dBu) 113dB (relative to 0dBFS 22dBu). Input Impedance: 10kO

• Frequency Response at 10dB gain (Instrument): -0.2dB at 20Hz and 0dB at 200kHz

• Frequency Response at 40dB gain (Instrument): -3dB at 20Hz and –3dB at 38.4kHz

Instrument Inputs

• Gain range (Instrument): 10dB to 40dB continuously variable

• Maximum headroom (Instrument): 11.5dBu

• Noise at main output with minimum gain ( 10dB) (Instrument): -95dBu (measured with a 20Hz/22kHz bandpass filter)

• Input Impedance (Instrument): >1MO

High Pass Filter

• Roll Off: 18dB per octave 3 pole filter

• Frequency range: 16Hz to 420Hz (continuously variable, measured at the 3dB down point)

Front and Rear Connectivity

• Analogue Audio Outputs (Outputs 1-4): 4 line XLR outputs on rear panel, 4 insert send 1/4” TRS jacks on rear panel

• Other I/O: IEC power input connector 100Vac – 240Vac

Weight and Dimensions

• Weight: 5.5kg (12.2lbs)
• Dimensions: 480mm (W) x 88mm (H) x 280mm (D)
