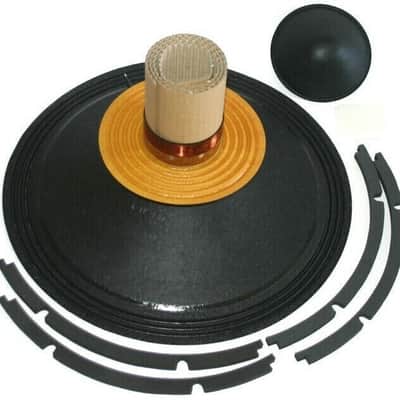

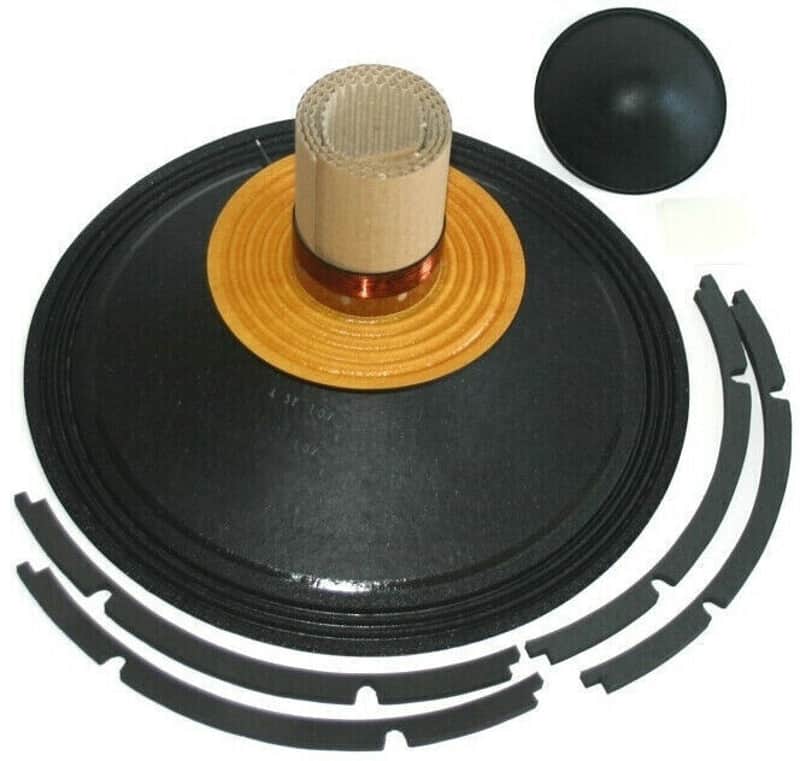

B&C R15NW100 15" Recone Kit For 15NW100 Neodymium Subwoofer Speaker 2000W 8-Ohms

B&C R15NW100 15" Recone Kit For 15NW100 Neodymium Subwoofer Speaker 2000W 8-Ohms 45-1500 Hz

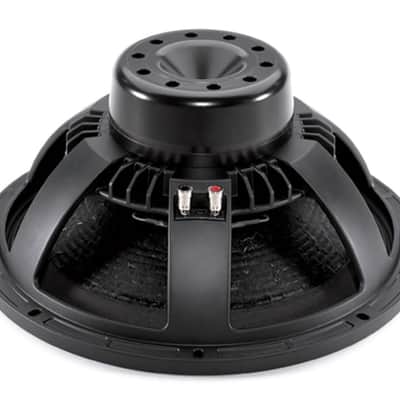

The industry-standard B&C Speakers 18PS100 features a 0.83" long/4" diameter copper wire voice coil with high thermal capability, and a ventilated magnet assembly, both of which contribute to low power compression. A very low distortion figure is obtained using a double spider design and dual demodulation rings in the magnetic path. The 18PS100 is fortified by a proprietary water-proof cone treatment that facilitates safe use in adverse climatic conditions. This benchmark pro subwoofer driver is found in many famous manufacturers' well-established loudspeaker enclosures.

Key Features

• 2000 W continuous program power capacity
• 100 mm (4 in) copper voice coil
• 35 - 1500 Hz response
• 97 dB sensitivity
• FEA optimized Neodymium magnet assembly
• Double silicone spider with optimized compliance
• Ventilated voice coil gap for reduced power compression

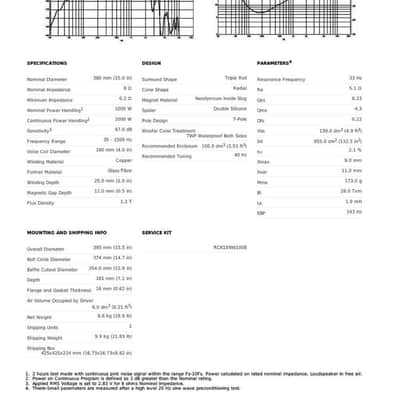

Specifications

• Nominal Diameter 380 mm (15.0 in)
• Nominal Impedance 8 Ohm

• Minimum Impedance 6.2 Ohm

• Nominal Power Handling 1000 W
• Continuous Power Handling 2000 W
• Sensitivity 97.0 dB

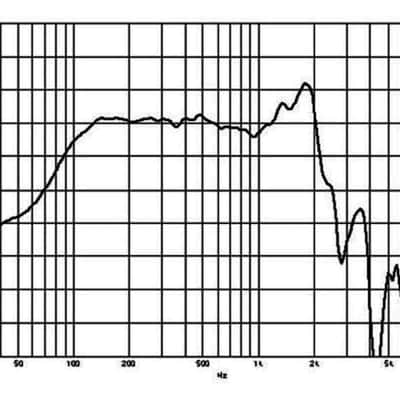

• Frequency Range 35 - 1500 Hz
• Voice Coil Diameter 100 mm (4.0 in)
• Winding Material Copper
• Former Material Glass Fibre
• Winding Depth 25.0 mm (1.0 in)
• Magnetic Gap Depth 12.0 mm (0.5 in)
• Flux Density 1.2 T

Design

• Surround Shape Triple Roll
• Cone Shape Radial
• Magnet Material Neodymium Inside Slug
• Spider Double Silicone
• Pole Design T-Pole
• Woofer Cone Treatment TWP Waterproof Both Sides

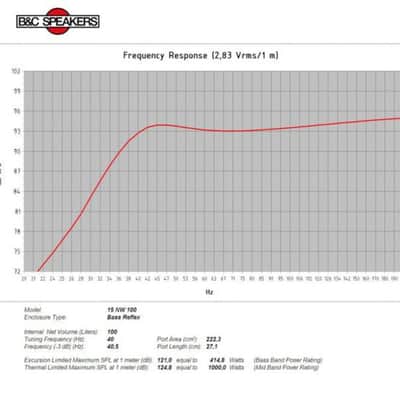

• Recommended Enclosure 100.0 dm3 (3.53 ft3)
• Recommended Tuning 40 Hz

Parameters

• Resonance Frequency 33 Hz
• Re 5.1

• Qes 0.23
• Qms 4.3
• Qts 0.22
• Vas 139.0 dm3 (4.9 ft3)
• Sd 855.0 cm2 (132.5 in2)
• 2.1 %
• Xmax 9.0 mm
• Xvar 11.0 mm
• Mms 173.0 g
• Bl 28.0 Txm
• Le 1.9 mH
• EBP 143 Hz

Mounting and Shipping Info

• Overall Diameter 393 mm (15.5 in)
• Bolt Circle Diameter 374 mm (14.7 in)
• Baffle Cutout Diameter 354.0 mm (13.9 in)
• Depth 181 mm (7.1 in)
• Flange and Gasket Thickness 16 mm (0.62 in)
• Air Volume Occupied by Driver 6.0 dm3 (0.21 ft3)
• Net Weight 8.6 kg (18.9 lb)
• Shipping Units 1
• Shipping Weight 9.9 kg (21.83 lb)
• Shipping Box 425x425x224 mm (16.73x16.73x8.82 in)

Service Kit

• RCK15NW1008
