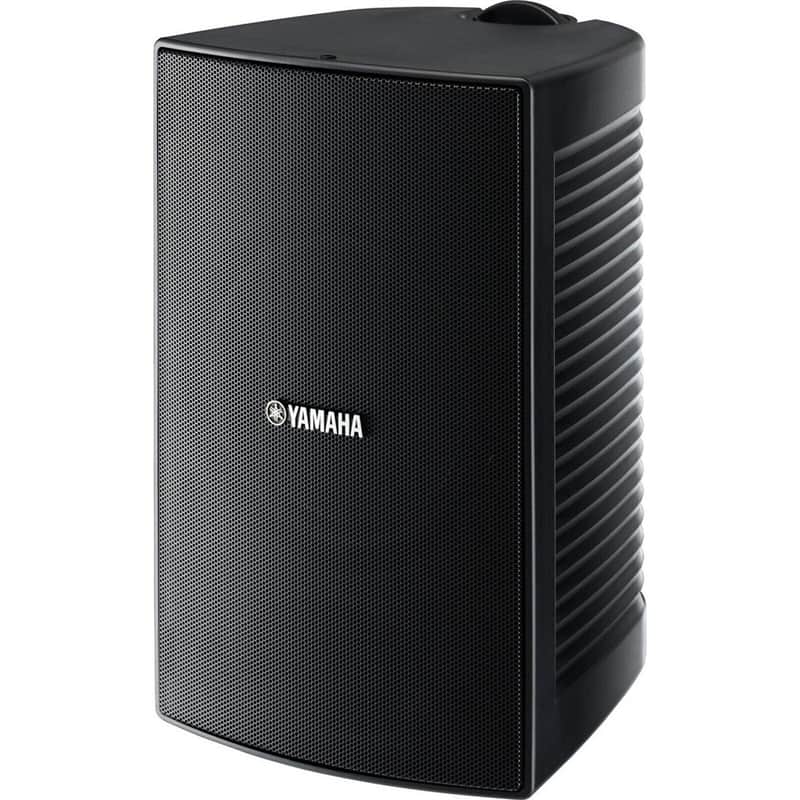

Yamaha VS6 6 Inch Surface Mount Speaker, Black
This seller has not set a shipping cost for Malta. Please contact them to ask about shipping.
Only 1 left
Grab it before it's gone
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
6.5" cone woofer with a 1" balanced dome tweeter
\nEasily adaptable to virtually any environment with its sleek, compact and functional design
\n The VS Series' smart and compact construction makes them well suited to locations where interior design is a consideration. Black and white models are available to choose from to match your applications. The speakers also feature waterproof enclosures and transducers which meet IPX3 rating requirements, allowing them to be used outdoors under cover.
Internal transformer allows operation in 70V or 100V distributed sound systems
\n Tap selector switch is located on the rear panel to select the power tap of 70V/100V line distributed system or 8O sound system. The setting can be easily adjusted by rotating the tap selector with a screwdriver. The terminals and tap selector can be protected using the supplied cover.
Flexible setting of the speakers with the dedicated U-brackets
\n The speakers are supplied with dedicated, color-matched brackets for fast and easy installation. The brackets can be set either horizontally or vertically, depending on where you want to mount the speakers.
Technical Specifications
\nFrequency range (-10dB)
\n 80Hz - 20kHz
\n Nominal coverage
\n H 90
\n V 90
\n Components
\n LF 6,5"(160mm) cone driver
\n HF 1"(25mm) balanced dome tweeter
\n Crossover
\n 15kHz
\n NOISE
\n 25W
\n PGM
\n 50W
\n PEAK
\n 100W
\n Nominal impedance
\n 8O
\n Transformer taps
\n 100V 25W, 12.5W, 6.3W
\n 70V 25W, 12.5W, 6.3W, 3.1W
Sensitivity (1W; 1m on axis)
\n 90dB SPL
\n Peak (Calculated)
\n 110dB SPL (100W)
\n I/O connectors
\n 2 pairs of barrier strip (parallel-wired * Screw size: M3, Terminal Space: 6mm)
\n Shape
\n Rectangular
\n Cabinet material
\n HIPS, 94-HB
\n Finish
\n VS6: Black, VS6W: White
\n Flying and mounting hardware
\n U-bracket (4 x 5.5mm and 2 x 11mm holes)
\n Waterproof
\n IEC60529 IPX3 splash proof rating
\n Dimensions
\n W 190 mm (7 1/2")
\n H 308 mm (12 1/8")
\n D 219 mm (8 5/8")
\n Net weight
\n 2.8kg (6.2lbs)
\n Accessories
