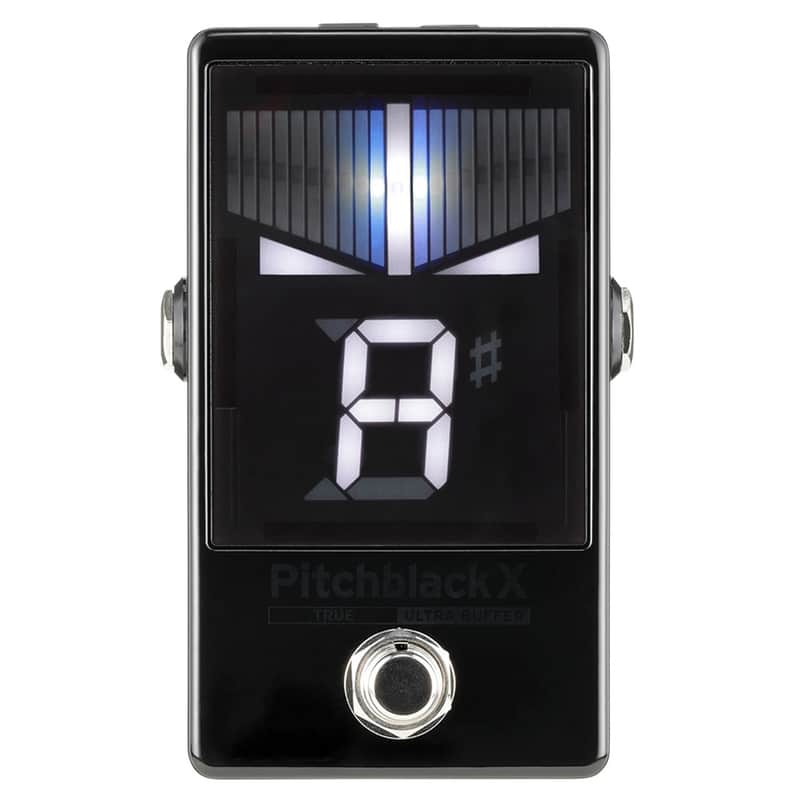

Get an Even More Powerful and Easy to Use Tuner Than Ever Before - The Korg Pitchblack X Pedal Tuner

This Pitchblack pedal tuner is designed with the musicians' needs in mind. Larger and brighter displays are designed with double the meter LEDs for improved visibility and more accurate tuning, while the new Ultra Buffer maintains guitar signal strength over long cable runs or as part of a large pedalboard.

• Allows switching between true bypass and the newly-developed ULTRA BUFFER
• Meter LED also offers bright mode settings for high visibility
• Ultra-high tuning accuracy down to ±0.1 cents
• Four meter display modes
• Built-in “just-right tuning” display
• Runs on battery power or optional AC

The Newly Developed Ultra Buffer

The Pitchblack X not only features a true bypass for outputting the sound exactly as it was input, but now includes a built-in ULTRA BUFFER Why is this important?

The majority of electric guitars use passive pickups with a high impedance output. When you are using a cable there is a loss of tone, usually high frequencies, after about 6 m (around 18 feet) and this problem gets worse the longer your cable. A buffer boosts the signal over long cables to avoid loss of tone, keeping it clean and clear - even when your pedal is off.

The Ultra Buffer enhances the sound quality in bypass mode, so that you can still maintain audio quality even when using a long cable to connect to the tuner, or when inserting the tuner into a complex effects board. On the Pitchblack X, you can switch between true bypass and the ULTRA BUFFER, according to your tastes and performance environment.

Ultra High Tuning Accuracy

The Pitchblack X offers highly precise and accurate tuning within a precision of ±0.1 cents when in Strobe mode, making it ideal for situations where the tuning must be absolutely right whether performing or recording.

SPECIFICATIONS

• Scale: 12 note equal temperament
• Detection Range: E0 (20.60Hz)~C8(4,186Hz)
• Calibration Range: A4=436〜445Hz（1Hz steps）
• Detection Accuracy: +/- 0.1 cent (display mode: Strobe)
• Input Impedance: 1 M-ohm (tuner on)
• Display Modes: Regular, Strobe, Half-strobe, Mirror

Connectors

• INPUT: mono 1/4” jack
• BYPASS: mono 1/4” jack
• DC 9V IN
• DC 9V OUT

Power

• Power Supply: 9V type battery(6LF22/6LR61/6F22)×1 or AC adaptor (9V)
• Power Consumption: Maximum 28 mA
• Battery Life
  • Approximately 24 hours(6LF22/6LR61, A4 continuous input, tuner on, display mode: Regular mode)
  • Approximately 5 hours(6F22, A4 continuous input, tuner on, display mode: Regular mode)

Other Specs

Size Dimensions: 69 x 110 x 49 mm (including protrusions)

Weight: 248 g

Included Items: Notices, Rubber feet, 9V battery x 1

Accessories: AC adaptor (9V)

Manufacturer: Korg USA
Model: PBX
SKU: I722841-N-3-WHXE
EAN: 4959112199798
