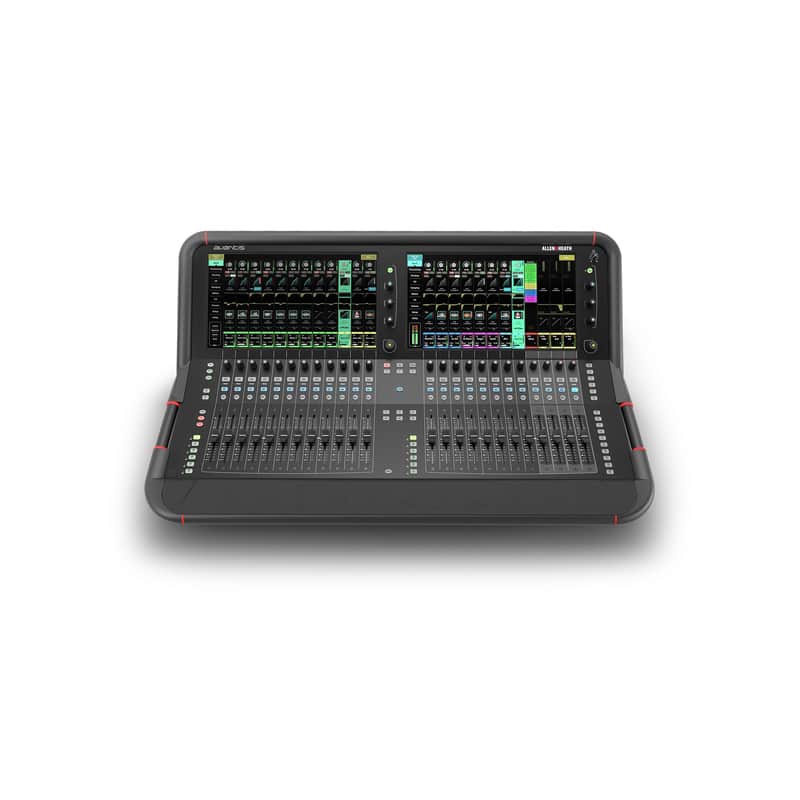

Mix With The Best Using The Allen & Heath Avantis 64-Channel Digital Mixer Its A Small Step To A Giant Leap

The third mixer based on the 96kHz XCVI FPGA engine, Avantis puts all of Allen & Heath's next-generation technology in a 64 channel/42 configurable bus console, with dual Full HD touchscreens, a super-flexible workflow with Continuity UI, extensive I/O options, add-on processing from their flagship dLive mixing system, and a rugged full metal chassis.

It's Your Mixer So Mix Your Way

With a massive 206 square inches of screen space operating at a crisp 1080p Full HD resolution, Continuity UI allows you to see and instantly interact with more of what matters, enabling a seamless connection between the physical controls and the displays. The faders react on touch to immediately highlight the active channels for instant visual feedback. The channel rotaries let you work gains or pans, then at the touch of a button, dynamically fold the display to show EQ or compressor parameters across the whole bank. Each screen also features a FastGrab tab on the right-hand side, giving you split-second access to key freely-assignable parameters like aux sends, EQ, compressor and FX on the currently selected or specific channel. The whole system is set up to dynamically surface the information you need at any moment and put control right at your fingertips.

• 96kHz 64 channel / 42 bus digital mixer
• XCVI FPGA core with ultra-low latency (0.7ms)
• Fully configurable mix bus architecture
• Allen & Heath MixPad and OneMix compatible
• Super-tough, full metal chassis
• Continuity UI seamlessly connects physical and touchscreen controls for the fastest, most intuitive workflows
• dPack option adds dLive processing, including 16 Dyn8 engines, plus per-channel zero-latency DEEP Compressors and Dual-Stage Valve preamp
• 12 RackExtra FX slots with dedicated stereo returns
• 16 DCAs
• Dual 15.6" Full HD capacitive touchscreens with gesture control
• AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
• Fully assignable layout
• 144 fader strips (24 faders, 6 layers) with optional dedicated master section
• SLink port for connection to Remote I/O Expanders and the ME Personal Mixing System
• 12 analogue XLR Inputs / 12 analogue XLR Outputs
• 1 Stereo AES In / 2 Stereo AES Out
• 2 I/O Ports, both capable of 128x128 operation at 96kHz for optional cards inc. Dante,MADI and gigaACE
• User configurable rotary controls
• 24 assignable SoftKeys
• Comprehensive metering with multi-point peak detection
• USB stereo recording and playback
• BNC Word Clock

SPECIFICATIONS

Inputs

• Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
• Mic/Line Preamp: Fully recallable
• Input Sensitivity: -60 to +15dBu
• Analogue Gain: +5 to +60dB, 1dB steps
• Pad: -20dB Active PAD
• Maximum Input Level: +30dBu (PAD in)
• Input Impedance 4kohms (Pad out), 10kohms (Pad in)
• Mic EIN -127dB with 150 source
Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at +24V
• Digital Inputs: AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 SRC range 24 bit, 32k - 192kHz, with bypass option

Outputs

• Analogue XLR Outputs: Balanced, Relay protected
• Output Impedance: 75 ohms
• Nominal Output: +4dBu = 0dB meter reading
• Maximum Output Level: +22dBu
• Residual Output Noise: -95dBu (muted, 22-22kHz),90dBu (muted, 0-80kHz)
• Digital Inputs: AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 - 96kHz sampling rate, globally switchable to 48kHz, 44.1kHz

System

• Measured balanced XLR In to XLR Out, 20-20

Manufacturer: Allen & Heath
Model: AH-AVANTIS
SKU: I619214-N-0-WHXC
EAN: 6938122249325
