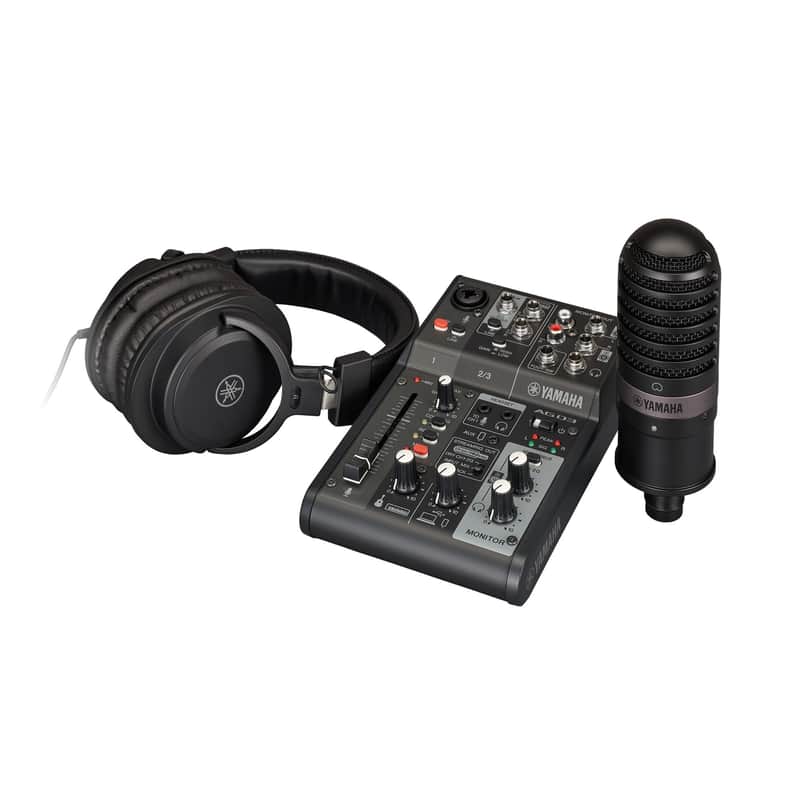

The Yamaha AG03MK2 LSPK (Live Streaming Package) is a full-streaming bundle including an AG03MK2 3-channel mixer, a YCM01 cardioid condenser microphone designed for live vocal or instrument performances, a pair of YH-MT1 high-fidelity headphones, and an XLR mic cable. This bundle is designed for beginners or pros looking for a plug-and-play user-friendly system. The LSPK packages come in either all black or all white.

Yamaha AG03 Mk2 Live Stream Pack Applications:

Streaming

Podcasting

Gaming Audio

Recording

Yamaha AG03 Mk2 Live Stream Pack Includes:

• AG03MK2: 3-channel Live Streaming mixer with USB audio interface
• YCM01: Studio-quality condenser microphone (XLR, Cardioid type)
• YH-MT1: Studio-quality headphones
• XLR microphone cable (3 m, Black)

Yamaha AG03 Mk2 Live Stream Pack Features:

• User-friendly
• Uniform color devices
• Studio quality
• Complete bundle

Yamaha AG03 Mk2 Live Stream Pack Specifications:

• YCM01 Microphone:
  • Microphone Type: Back electret condenser type
  • Polar Pattern: Cardioid
  • Address Type: Side
  • Frequency Responce: 30 Hz - 20 kHz
  • Max Input SPL: 130 dB (THD ≦ 1.0 ％ at 1 kHz)
  • Sensitivity:-37 dB ± 3 dB (0 dB=1V/Pa, at 1kHz)
  • Connector: XLR
  • Dimensions of Mic: Ø2.2" x 6.5"
  • Weight of Mic: 0.9 lbs
  • Included with Mic: Microphone stand adaptor x 1, Microphone pouch x 1, Owner’s manual, Technical specifications
• AG03MK2 Mixer:
  • Input Channels:
  • Mono (Mic/Line): 1 - Combo (Mic, +48 V phantom power / Line),
  • 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power) *CH1
  • input and Headset mic cannot be used simultaneously
  • Stereo (Line): 1 - Stereo Line / Guitar Input (Mono)
  • Smartphone: 1 - 4-pole mini input/output (TRRS)
  • USB: 1
  • Output Channels:
    • Phones: 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously
    • Smartphone: 1 - 4-pole mini input/output (TRRS)
    • Monitor Out: 2 - L/R Stereo: Phone, RCA
    • USB: 1
  • Bus: 1 Stereo
  • Functions:MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
  • On-noard Processors/DSP: COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller
  • USB:
  • USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 Compliant,
  • Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
  • USB DC Power input: 1 - Type-C, 5 V DC, 900 mA
  • General:
  • Power Requirements: 5 V DC, 900 mA
  • Power Consumption: Max. 4.5 W
  • Dimensions (W x H x D): 5.0 x 2.5 x 7.9 "
  • Net Weight of Mixer: 1.8 lbs
  • Included with mixer: USB 2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
  • Operating Temp: 0 to + 40 ℃
