Used: No problem with function but may have signs of heavy usage.

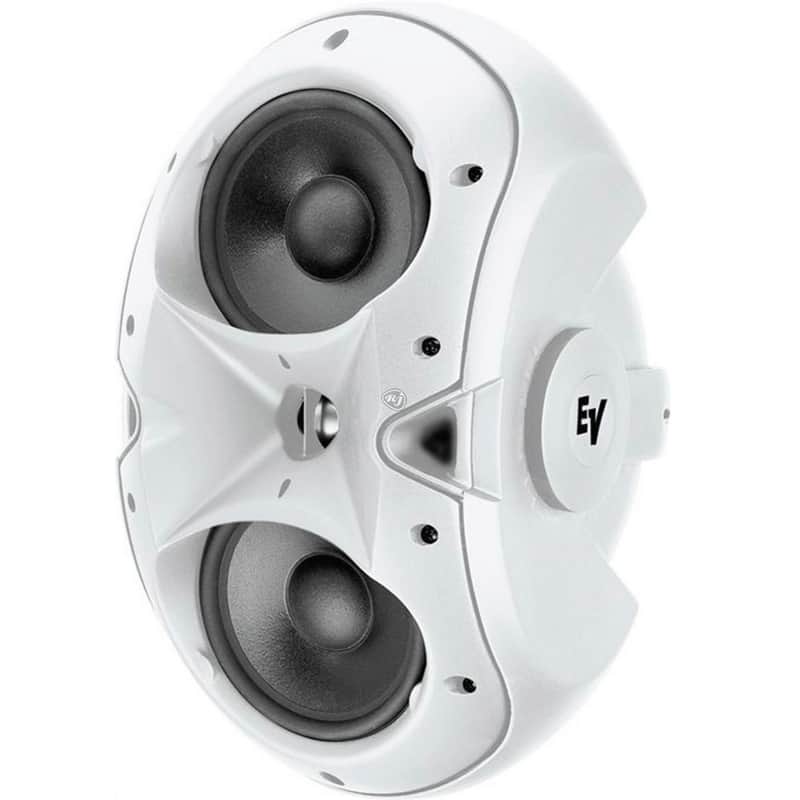

Compact Full Range LF Enclosure Magnetically Shielded Loudspeaker

Dual 4-inch two-way surface-mount loudspeaker.

Key Features

• Compact full range
• Ideal for restaurants, bars, patios, and retail
• Vented LF enclosure
• 1-inch titanium diaphragm HF driver with neodymium magnetic structure
• Coherent Coverage Waveguide
• Full-bandwidth overload protection (LF and HF)
• Elliptical weather-resistant ABS enclosure
• Paintable black or white finish
• Magnetically shielded for video applications
• Strong-Arm Mount for easy, flexible aiming

Technical Specifications

Chassis Size
4†(101.6 mm)
Color
White
Input Connections
Spring Terminal
Speaker Type
Full-range, Mid-High, Two-Way
Frequency Response (-10 dB)
65 - 20000 Hz
Internal Crossover
Yes
Sensitivity 1 W/1 m
89 dB
Max. SPL/1m (calc)
115 dB
Coverage (Nominal -6 dB) H
120 deg
Coverage (Nominal -6 dB) V
80 deg
System Power Handling (Continuous/Program/Peak)
100//400 Watts
LF Transducer
Two 4-inch
LF Power Handling
Two 4-inch Watts
HF Power Handling
1-inch Watts
HF Transducer
1-inch
Nominal Impedance (Passive)
8 ohm
Minimum Impedance
6 ohm
Outdoor
Yes
Height
12.2†(309.89 mm)
Width
6.9†(175.26 mm)
Depth
8.5†(215.9 mm)
Weight Net
3.9 kg (8.6 lbs)
