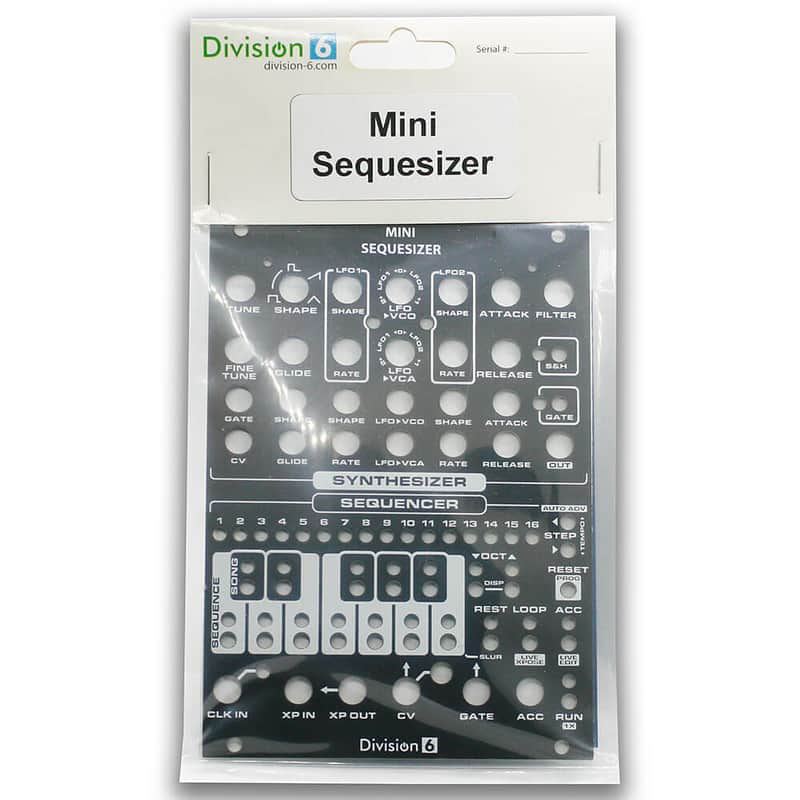

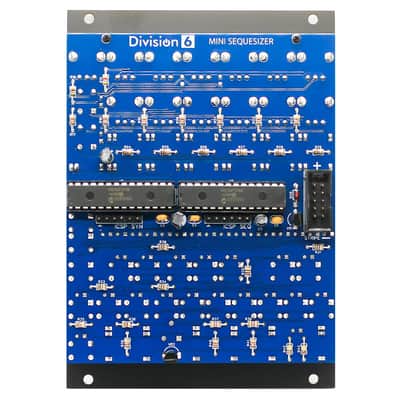

Please note: This is a kit and requires assembly. You can find assembly instructions at the Division 6 website.

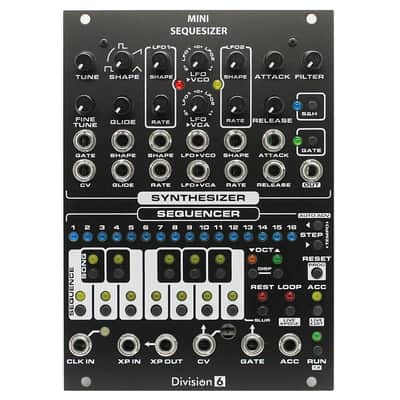

Synthesizer on the top, sequencer on the bottom! The Mini Sequesizer combines the Dual Mini Synthesizer and Dual Mini Sequencer into a single, powerful module.
Synthesizer Features:
- Pulse, square, triangle, and sawtooth waves
- Glide
- 2 LFOs with pulse, square, saw, triangle and ramp shapes
- Attack / Decay
- Low-pass filter
- Sample and hold
- Manual gate trigger (can be locked on)
- Gate normals automatically to the Sequencer
- 1V/O input with course and fine-tune controls
Sequencer Features:
- Daisy-chain additional sequencers using the XP IN/OUT jacks to create sequences of ANY length.
- Has its own internal clock to get you up and running in a hurry, but you can connect an external clock if you need greater control of tempo or want to sync with other devices.
- The module stores your latest sequence even when the power has been removed.
- This module has lots of LEDs and is very shiny, but only two of them are ever on at a time, which keeps it from loading down your power supply.
Now shipping version 2! Here are some of the new features you have to look forward to:
- 7 sequence memories
- 5 song memories (string sequences together)
- SLUR- change pitch between steps without firing gate
- Variable gate timing (including ratcheting)
- ACC can be set to drop or not drop between steps, or follow gate timing for that step
- Auto-advance step when programming
- Live transpose (use the keyboard to shift entire sequence up or down while running)
- Live edit (buttons you push while running get saved to the sequence)
- 1X mode (disable to use XP IN as a reset without requiring an external gate mixer)
- Clock out (use ACC out jack to output clock if using internal clock)
Inputs:
- CLK IN (External clock input)
- XP IN (Expansion input; Starts sequencer back at step 1. Use for daisy-chaining multiple units.)
Outputs:
- XP OUT (Sends pulse when sequencer goes past last step. Use for daisy-chaining multiple units.)
- CV OUT
- GATE OUT
- ACC (accent) OUT (Can be programmed on or off in each sequence step)
- CV OUT covers 5 octaves, and can be tuned using front-accessible trim potSequences can be set to any length up to 16 steps by using LOOP feature
- Setting a step to REST holds previous pitch and doesn't fire GATE
- In Standby mode, sequencer can be used as a tiny keyboard without altering programmed sequences
- Daisy-chain the sequence into INFINITY with other Sequesizers/Sequencers!
Specifications:
- Power supply: +12VDC (reverse-polarity protected!)
- Width: 18HP
- Depth: 21mm
