Rackmount 16 Mic/Line and 1 Stereo Line Input Digital Mixer \n

Ever since the first Yamaha digital mixer was released in 1987, the company has been a leader in digital mixer innovation for a wide range of applications. For small events and halls, large-scale outdoor concerts, music production, commercial installations and more, Yamaha offers a comprehensive lineup that delivers world-renowned sonic quality, operability, functionality and reliability.

\n

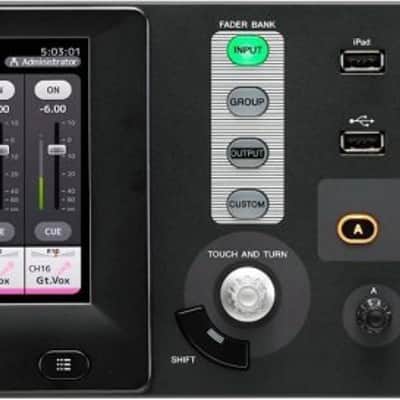

TF Series digital mixing consoles released in 2015 offer TouchFlow Operation which allows the user to respond to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement. With the TouchFlow Operation interface optimized for touch panel control, experienced engineers as well as newcomers to the field will find it easier than ever to achieve the ideal mix. Recallable D-PRE preamplifiers support sound quality that will satisfy the most discerning professional ears, while advanced live recording features and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications.

\n

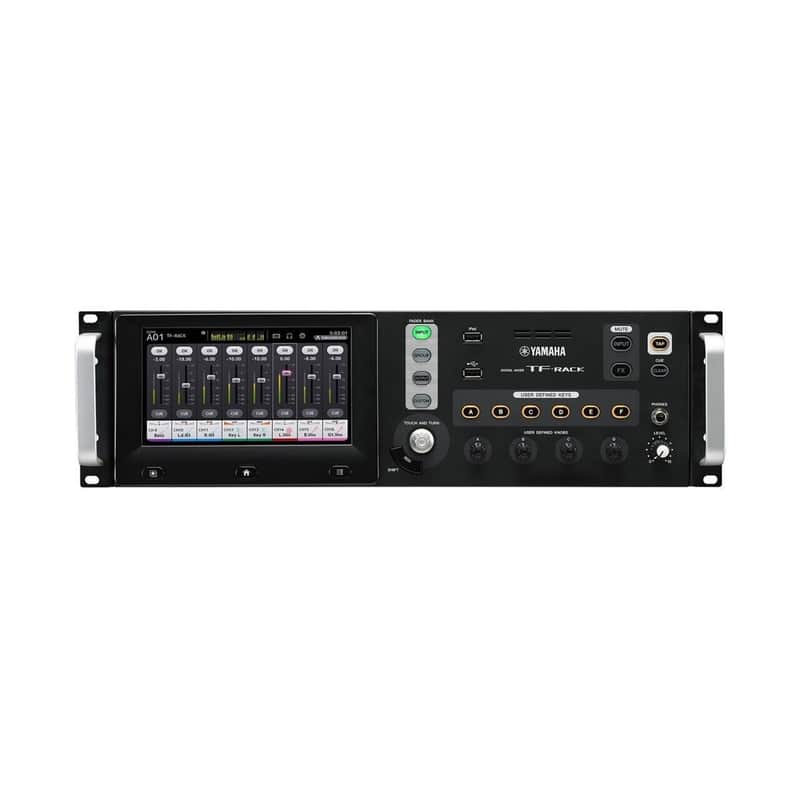

The new TF-RACK is a compact rack-mount version of the TF Series, offering the same levels of performance and groundbreaking operability. This space-saving model is accessible to a wide range of users, from beginners to seasoned engineers. The TF-RACK is an unbeatable choice when smooth, intuitive setup and operation is required in limited spaces.

\n

Technical Specifications

\n

Mixing Capacity\nInput Channels: 40 (32 mono + 2 stereo + 2 return)\nAux Buses: 20 (8 mono + 6 stereo)\nStereo Buses: 1\nSub Buses: 1\nInput Channel Functions\n8 DCA Groups\nI/O\nInputs: 16 mic/line (XLR/TRS combo) + 1 stereo line (RCA pin)\nOutputs: 16 (8 XLR + 8 TRS phone)\nExpansion slots: 1 (for NY64-D)\nOn-Board Processors\nDSP: 8 Effects + 10 GEQ\nSampling Frequency Rate\nInternal: 48 kHz\nSignal Delay\nLess than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz\nFader\nResolution = 10-bit, +10 dB to -138 dB, –8 dB all faders\nTotal Harmonic Distortion\nLess than 0.05% 20 Hz-20 kHz @+4 dBu into 600 ohm, INPUT to OMNI OUT, Input Gain=Min. (Measured with a -18 dB/octave filter@80 kHz)\nFrequency Response\n+0.5, -1.5 dB 20 Hz-20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT\nDynamic Range\n110 dB typ., DA Converter, 108 dB typ., INPUT to OMNI OUT, Input Gain=Min.\nHum & Noise Level\nEquivalent input noise: -128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)\nResidual output noise: -85 dBu, ST master off (Measured with an A-Weight filter)\nCrosstalk\n-100 dB (Measured with a -30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.\nPower Requirements\n100-240 V 50/60 Hz\nPower Consumption\n85 W\nDimensions\nW: 480 mm (18-7/8 in)\nH: 132 mm (5-1/4 in)\nD: 409 mm (16-1/8 in)\nNet Weight\n9.2 kg (20.3lb)\nAccessories\nQuick Guide, Power Cord NUENDO LIVE (DAW Software), Rubber stoppers(4)\nOptions\nAudio Interface Card (NY-64D), Foot Switch (FC5)\nOthers\nOperating temperature range: 0-40 deg C, Storage temperature range: -20-60 deg C
