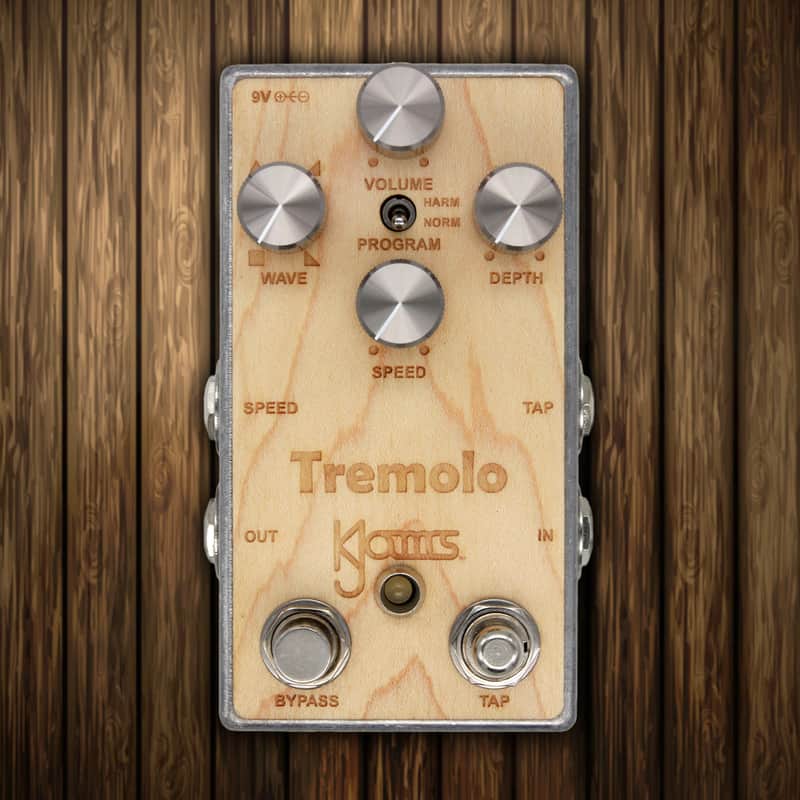

NEW KJams Tremolo! - Tap Tempo Harmonic Tremolo with Tap and Expression inputs from KLEIN JAMS. Wood Top!

Please note: The face plate is solid wood, so the grain / color variance in each piece will be unique.

Description from KJams:

The KJams Tremolo pedal has two tremolo programs. One is a standard tremolo with speed and depth controls. It includes the ability to access four waveforms; square, triangle, sawtooth up, and sawtooth down. The second has the same controls as the first, but is a harmonic tremolo inspired by brown face Fender amps of the early 60s. The input signal is run through a crossover to split it into high and low frequencies. The frequencies are then alternated to create a unique modulation that is somewhere between a tremolo and a vibrato.

The pedal is based on the Spin FV-1 DSP chip, and is designed and assembled in Holland, Michigan, USA.

Features

The pedal features:

•  true bypass
•  three program control pots
•  output level control with gain up to 10dB
•  built-in tap switch
•  external tap switch input
•  external expression pedal input

Instructions
The Tremolo pedal has two programs, selectable by the toggle switch:
-Norm (down) – Tremolo with Speed, Depth, and Wave shape controls.
-Harm (up) – Harmonic Tremolo with Speed, Depth, and Wave shape controls. There is a crossover at 800 Hz; the high and low frequencies are alternated to create a vibrato-like modulation similar to early 60s Fender brown face amps.

Footswitches
-Bypass is a standard bypass/enable latching switch.
-Tap sets the speed of the Tremolo. Two taps set the speed. Tap just once and the speed will be set to the lowest.

Pots
-Speed sets the speed of the Tremolo.
-Depth set the depth of the Tremolo.
-Wave selects between four wave shapes: square, triangle, sawtooth up, and sawtooth down.
-Volume controls output level.

Jacks
-In and Out jacks are standard mono, right to left.
-Tap acts exactly as the built-in tap. Use a standard normally open switch.
-Expression replaces the middle/lower control, Speed.

Power
-Input power is standard center-negative 9VDC.
-Current draw is 62mA.
-The pedal is safe with higher voltages, up to 18VDC, but using higher voltages will not affect the sound, and we discourage using them.
