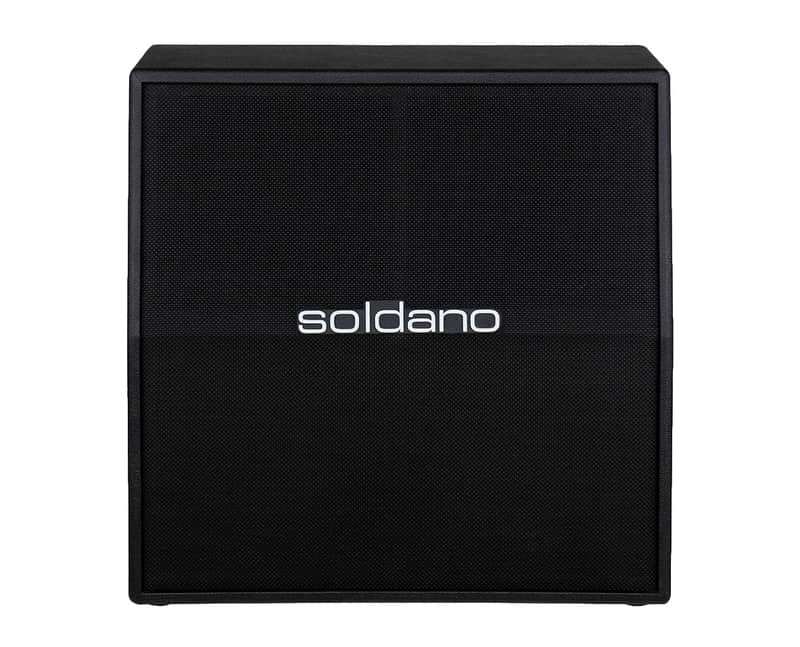

First designed to keep up with the ‘60s rock ‘n’ roll volume wars, the 4×12” guitar speaker cabinet has endured to become today’s go-to for power, volume, and tactile playing experience. The new Soldano angled 4×12” cabinet honors this tradition with unparalleled construction quality and iconic Celestion Vintage-30 speakers. Each cabinet is hand crafted in America with unparalleled construction quality and as much attention to detail and quality as the Soldano amplifiers that power them.

Celestion Vintage 30 speakers

Celestion’s Vintage 30 sits high among the most revered electric guitar speakers in the world. Originally crafted to deliver the sound of the company’s first alnico-based guitar speakers, they instead delivered a new, signature sound that quickly made them a tonal standard for the decades to come. Today, their vocal midrange, detailed top end, and tight lows are indispensable for thousands of players in every genre imaginable and are the bedrock of the Soldano sound. Soldano cabinets are handcrafted with pride in the U.S.A. using multi-layered Baltic birch and are backed by a limited lifetime warranty. Heavy-duty 12-gauge speaker wire is soldered between the speaker and terminal, assuring that you capture every ounce of valuable tone. Includes 3 heavy-duty detachable casters.

Features

Connections

• 2 in / 5 out (one low-noise Amp out)
• 2 ultra-low noise mic in/balanced line in
• Triple topology guitar input with Z-TONE®
• 2 balanced monitor out / 2 line out
• Reference headphones out
• 2 fully configurable external control input
• MIDI input/output
• USB 2.0 compatible with Mac/PC

Best-in-class guitar tone

• Selectable Active/Passive/discrete JFET/Pure instrument preamp
• Patent pending Z-TONE® input for a tonal palette never heard before
• Amp Out for reamplification or Tone Modeling using TONEX for Mac/PC
• Comes with AmpliTube 5 SE and TONEX SE for Mac/PC
• Connect up to 2 expression pedals, single and double-switches
• Fully assignable data-knob – for AmpliTube preset browsing and more
• Built-in Tuner
• Rugged/compact metal housing

Common

• Conversion : 24-bit A/D, 24-bit D/A
• Sampling Rate : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz
• Power : DC IN
• Device Connection : USB B-Type 2.0
• Enclosure : metal sheet
• Line Outputs 1-2 (Monitor)
• Configuration : Electronically balanced and floating, automatically compensates level when connection is balanced or unbalanced, tip hot.
• Output impedance : 150 Ohms balanced, 75 Ohms unbalanced
• Output Level : 0 dBFS corresponds to +21 dBu
• Frequency response : From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
• Dynamic Range : 116 dB(A)
• THD+N : -106 dB(A) at -1 dBFS
• Channels 1-2 crosstalk : 115 dB(A)

Line Outputs 3-4

• Configuration : Unbalanced
• Output impedance : 75 Ohms
• Output Level : 0 dBFS corresponds to +16 dBu
• Frequency response : From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
• Dynamic Range : 115 dB(A)
• THD+N : -102 dB(A)
• Channels 3-4 crosstalk : 112 dB(A)

Output 5 (Amp output)

• Configuration : Unbalanced, floating, with selectable ground lift
• Output impedance : 100 Ohms
• Output Level : 0 dBFS corresponds to -6 dBu
• Frequency response : From 10 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
• Dynamic Range : 110 dB(A)
• THD+N : -104 dB(A)

Headphones Out

• Output impedance : Virtually ideal source (zero Ohms) until clipping
• Maximum Output level : +12 dBu into 50 Ohms load (approx 180 mW)
• Frequency response : From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
• Dynamic Range : 112 dB(A)
• THD+N : -100 dB(A)

Mic Inputs 1-2

• Configuration : Class-A discrete differential microphone preamp, pin 2 hot
• Input impedance : 4 kOhms differential
• Input level, min gain : 0 dBFS is obtained with a +12 dBu signal at the XLR input
• Input level, max gain : 0 dBFS is obtained with a -37 dBu signal at the XLR input
• Frequency response : From 5 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
• Dynamic Range : 116 dB(A)
• THD+N : -106 dB(A) at -10 dBFS

Line Inputs 1-2

• Configuration : Class-A discrete differential line receiver, tip hot
• Input impedance : 20 kOhms differential
• Input level, min gain : 0 dBFS is obtained with a +26 dBu signal at the TRS input
• Input level, max gain : 0 dBFS is obtained with a -24 dBu signal at the TRS input
• Frequency response : From 5 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
• Dynamic Range : 116 dB(A)
• THD+N : -106 dB(A) at -10 dBFS
