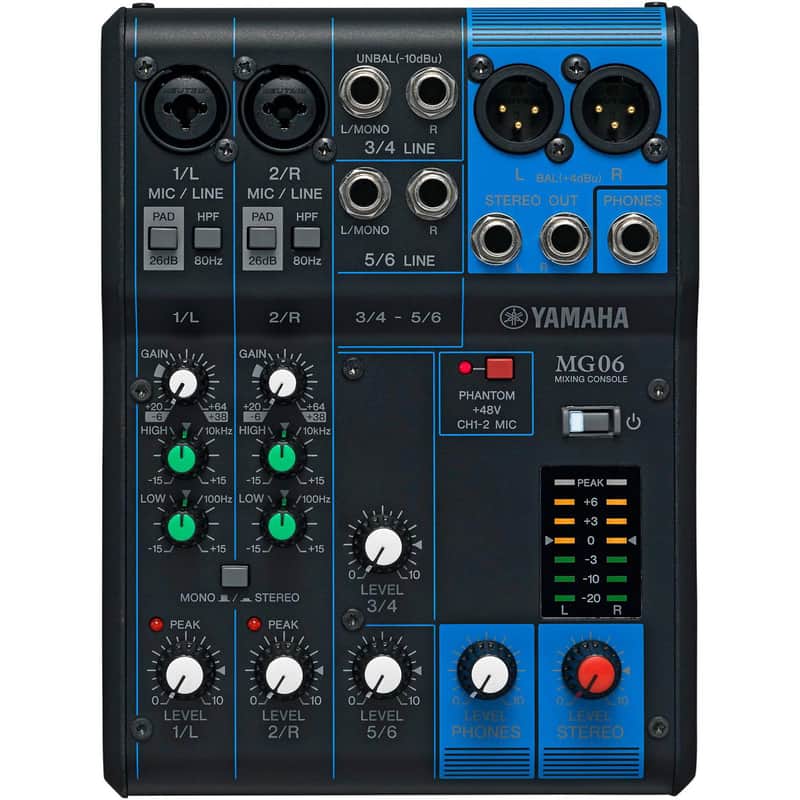

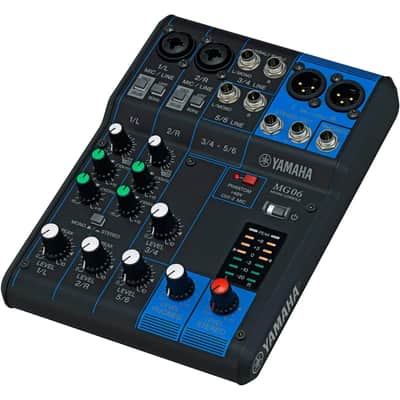

Now in its third incarnation, the MG Series embodies the pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction. The Yamaha MG06 is a six channel mixing console with two mic (XLR hybrid) and six Line Inputs (2 mono + 2 stereo), one Stereo Bus, and one AUX send.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

• On-board processors : SPX algorithm: 24 programs
• Phantom power: +48 V
• Input Channels: 2 Mono[MIC/LINE], stereo[LINE]: 2
• Output Channels: STEREO OUT: 2
• PHONES: 1
• Bus: Stereo: 1
• Input Channel Function
• PAD: 26 dB (Mono)
• HPF: 80 Hz, 12 dB/oct (Mono)
• EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
• EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
• PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
• Level Meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20, -30 dB]
