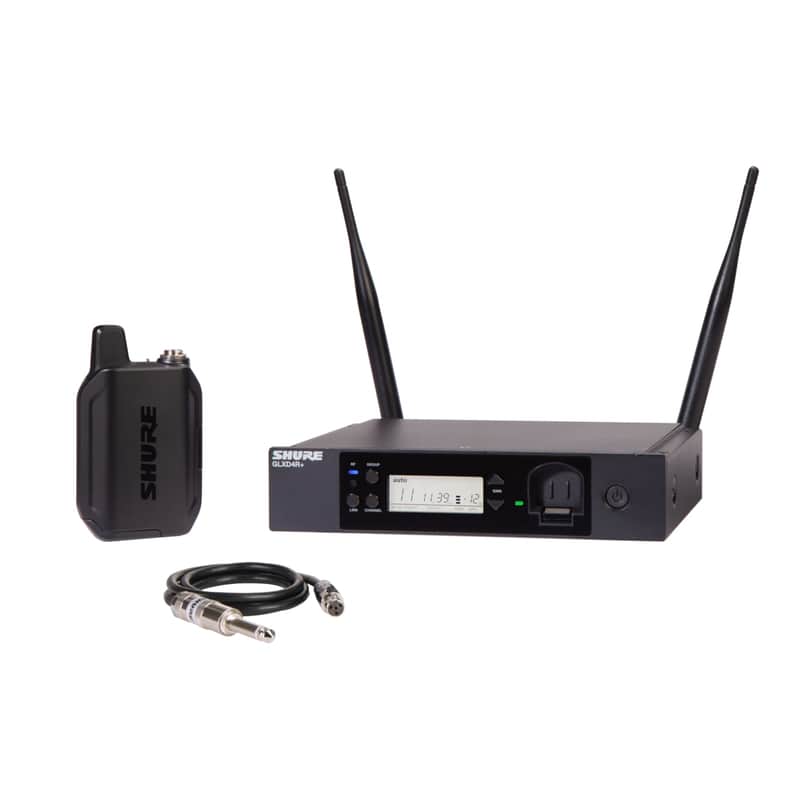

Shure GLXD14R+ Digital Wireless Rack System

Legendary Performance - The Shure GLXD14R+ Digital Wireless Rack System

Frequency Band: Z3 (2.4, 5.8 GHz)

The new GLX-D+ Dual Band Wireless Rack System features the WA302 guitar cable and the GLXD4R+ half-rack receiver. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.

• Exceptional digital audio clarity
• Compatible with multiple legendary microphone options
• Automatically moves away from interference without audio interruption
• Rechargeable battery delivers up to 12 hours of runtime
• Rock-solid RF performance for multiple system installations
• License-free frequency range

SPECIFICATIONS

GLXD1+ Dual Band Bodypack Transmitter

• System Operating Range
• Indoors: Up to 30 m (100 feet) typical, with a maximum of 60 m (200 ft.) under ideal conditions
• Outdoors: Up to 20 m (65 feet) typical, with a maximum of 50 m (165 ft.) under ideal conditions
• Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
• Audio Frequency Response: 20 Hz – 20 kHz Note: Dependent on microphone type
• Dynamic Range: 120 dB, A-weighted
• RF Sensitivity: -88 dBm, typical
• Total Harmonic Distortion: 0.07%, typical
• RF Output Power: 10 mW E.I.R.P. max
• Operating Temperature Range: -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range
• Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
• Battery Life: Up to 12 hours
• Power Requirements: 3.7 V Rechargeable Li-Ion
• Housing Cast: Metal, Black Powdercoat
• Input Impedance: 900 kΩ
• RF Output Power: 10 mW E.I.R.P. max
• Connector: 4-Pin male mini connector (TA4M)
• Configuration: Unbalanced Maximum Input Level (1 kHz at 1% THD): +8.4 dBV (7.5 Vp-p)
• Antenna Type: Dual Band Internal Monopole
• Dimensions: 4.5 x 2.6 x 1.1 inches (115 x 66.94 x 28.51 mm), without antenna
• Weight: 5.4 oz (153.1 g), without battery

Shure GLXD4R+ Dual Band Wireless Receiver

• System Operating Range
• Indoors: Up to 30 m (100 feet) typical, with a maximum of 60 m (200 ft.) under ideal conditions
• Outdoors: Up to 20 m (65 feet) typical, with a maximum of 50 m (165 ft.) under ideal conditions
• Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
• Audio Frequency Response: 20 Hz – 20 kHz Note: Dependent on microphone type
• Dynamic Range: 120 dB, A-weighted
• RF Sensitivity: -88 dBm, typical
• Total Harmonic Distortion: 0.07%, typical
• RF Output Power: 10 mW E.I.R.P. max
• Operating Temperature Range: -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range
• Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
• Battery Life: Up to 12 hours
• Housing: Steel
• Power Requirements: 14.5 V - 17 V, 600 mA
• Spurious Rejection: >35 dB, typical
• Gain Adjustment Range: −18 to 42 dB in 1 dB steps
• Phantom Power Protection Yes
• Configuration
• XLR Output: Balanced
• 6.35 mm (1/4-inch) output: Impedance balanced
• Impedance
• XLR Output: 100 Ω
• 6.35 mm (1/4-inch) output: 100 Ω (50 Ω, Unbalanced)
• Full-Scale
• XLR: LINE setting= +18 dBV, MIC setting= −12 dBV
• 6.35 mm (1/4-inch): +12 dBV
• XLR Output 1=ground, 2=hot, 3=cold
• Pin Assignment: 6.35 mm (1/4-inch) connector: Tip=audio, Ring=no audio, Sleeve=ground
• Mic/Line Switch: 30 dB Pad
• Input
• Impedance: 50 Ω
• Antenna Type Dual: Band 1/2 WaveSleeve Dipole
• Maximum Input Level −20 dBm
• Dimensions 7.7 x 6.4 x 1.6 inches (196.8 x 162.97 x 41.8 mm), without antenna
• Weight 30.5 ounces (866 g) without batteries

Manufacturer: Shure
Model: GLXD14R+-Z3
SKU: I732965-N-6-WHXE
UPC: 042406695749
