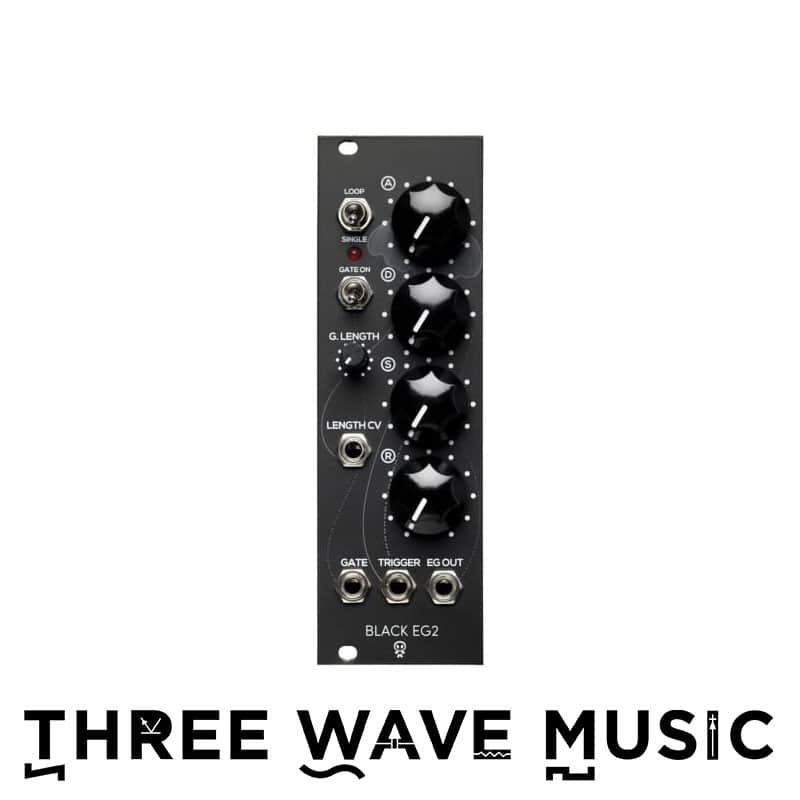

The Erica Synths Envelope Generator 2 is a re-triggerable, looping envelope generator with some unconventional features that are very useful for experimental setups. What sets the Black EG2 apart from other envelope generators is its optional GATE LENGTH setting, which allows for generating full ADSR envelopes even if a short trigger is used at the input. Likewise, in LOOP mode, the module outputs a full ADSR envelope instead of a classical AD envelope. The gate length is both manual and CV controlled, which allows for using this envelope generator in compact modular setups controlled by trigger sequencers only. Features

• Full exponential ADSR envelope
• Retriggering option
• Internal gate generator with adjustable gate length
• Manual and voltage-controlled gate length
• Full ADSR looping mode

Technical specifications:

Gate input level 3…10V Envelope amplitude 0…10V Attack time 0…7,4” Decay time 0…19” Sustain level 0…10V Release time 0…17” Gate length 0…3,7” Panel width 8HP Module depth 25mm Power consumption 29mA@+12V, 33mA@-12V
