Alctron BV563 Multi-pattern, Multi-capsule tube Condenser Microphone, case, shockmount, transformer output

BV563

Professional Tube Condenser Microphone

Product introduction

The Alctron BV563 is a fully featured, large diaphragm tube condenser microphone with three interchangeable mic capsules to allow the use of different capsule sizes and pickup patterns for varying responses on sources.

The capsule sizes include: 32mm, 34mm, 35mm and can be exchanged to provide different tonal characteristics and pickup patterns on any number of sources from vocals to guitar cabs.

The internal Preamp comes equipped with a high quality 7025(12ax7) JJ tube, low noise Sprague, Wima parts throughout.

The preamp is very low noise with superb transient response and good audio character wherever it is placed.

Let’s be honest with most affordable microphones the issue is body resonance.

With the BV563 the shell is made of copper for very low handling noise and ringing and is a sturdy shell for years of abuse.

Microphone Highlights

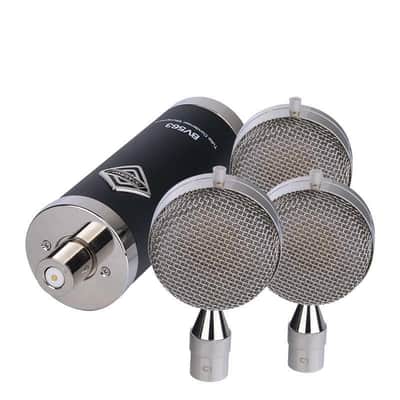

1、Detachable capsule choices—32mm, 34mm and 35mm cardioid capsules

2、High quality JJ 7025 tube

3、Low Self noise and superb transient response

4、Outstanding noise-cancellation

Features

1、Large diaphragm tube condenser microphone

2、Detachable capsule—32mm, 34mm and 35mm cardioids capsule

3、High quality JJ 7025 tube to offer low noise and superb transient response

4、Sturdy Copper microphone shell.

5、Outstanding noise-cancellation with excellent frequency response

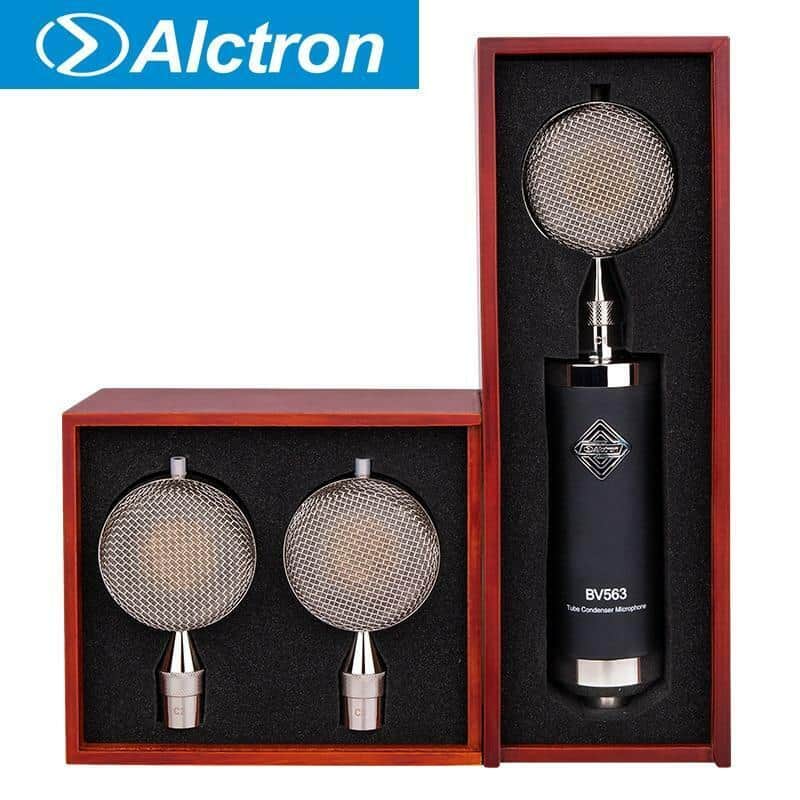

6-   Wood mic box, aluminum carrying case

Specifications

* High performance tube condenser mic

* 32mm, 34mm, 35mm three large diaphragm capsule

* Polar pattern：

caidioid

* Frequency response：

20Hz-20kHz

* Sensitivity：

-34±2dB

* Output impedance：

<200Ω

* Equivalent noise level：

17dB

* Max SPL：

120dB for 0.5%THD

* Connector：

7-pin XLR

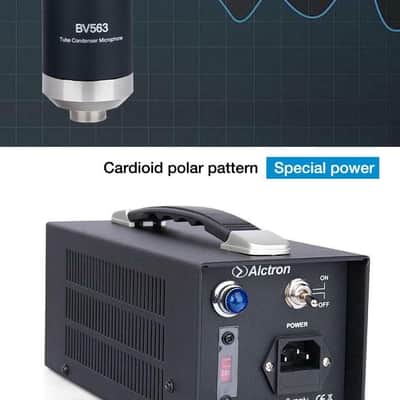

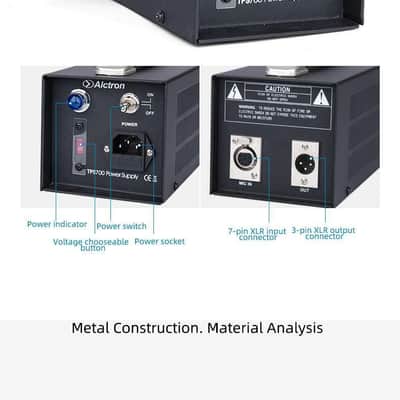

* Power requirement：

special power supply
