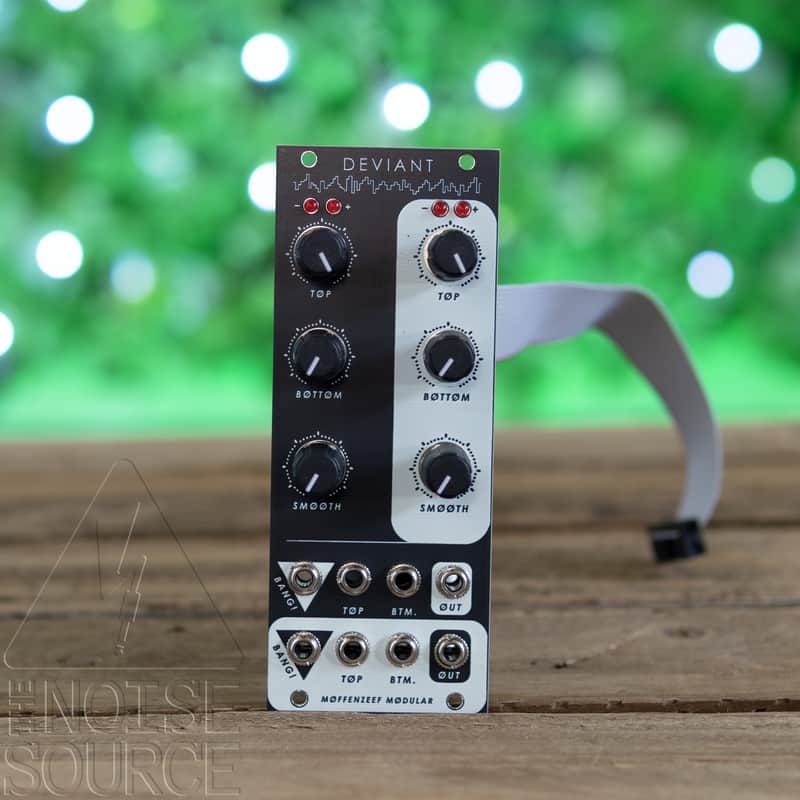

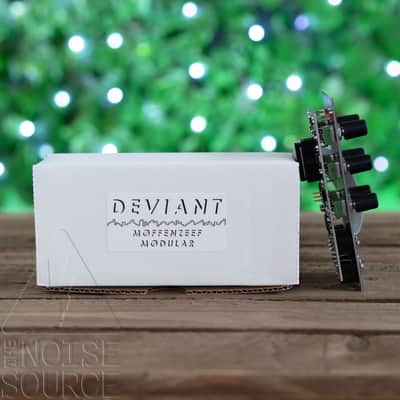

Moffenzeef Deviant - Black

*These are from a limited run of 50 Black finished modules*

When triggered, the Deviant outputs a random voltage between the ranges set by Top and Bottom knobs respectively (-5v to 5v). Both Top and Bottom have bipolar CV inputs, allowing the user to modulate the window of voltages. To continue in the Moffenzeef ethos of kraptastik electronics, there is not a sophisticated DAC (digital to analog converter) on the output of the Deviant. Instead, a simple pulse-width modulated lowpass filter is controlled by the “Smooth” knob allowing the user to dial in the amount of noise, and the overall slew of the output. The design relies heavily on the gnarly sound of the PWM (pulse width modulation) carrier frequency emitted from the brain of the module which injects itself into whatever you plug the Deviant into. When plugged into parameters expecting hard edges (a la Specimen on GMØ) the Deviant will make the target glitch subtly which adds krispidy krunchidy klix n' pops. If plugged into an audio rate source like a VCO or VCF, the carrier frequency gives the target a mild timbral shift reminiscent of ring mod.

*THIS MODULE PAIRS NICELY WITH DRUM MODULES WHERE THE USER WANTS TO DIAL IN SUBTLE VARIATIONS IN TIMBRE UPON EACH TRIGGERING OF THE DRUM.

FEATURES:

• SEPARATE CONTROL OF TOP AND BOTTOM RANGE OF RANDOM VOLTAGES
• BIPOLAR CV INPUTS FOR TOP AND BOTTOM RANGE OF RANDOM VOLTAGES
• SLEW PER CHANNEL
• CH. 1 NORMALIZED TO CH. 2 FOR TWO CHANNELS OF RANDOM FROM A SINGLE TRIGGER SOURCE
• OPEN SOURCE: USERS CAN HACK AND FLASH CODE FROM OUR GITHUB
• LOW RESOLUTION AND NOISY OUTPUT: A CHARACTERIZED TAKE ON A CLASSIC TECHNIQUE.

SPECS:

WIDTH: 10HP
MØUNTING DEPTH: 20MM
CURRENT DRAW:  40 MA +12V
                                20 MA -12V
                                0 MA +5V
100K INPUT IMPEDANCE
1K OUTPUT IMPEDANCE

*The Noise Source is an authorized MOFFENZEEF dealer*
