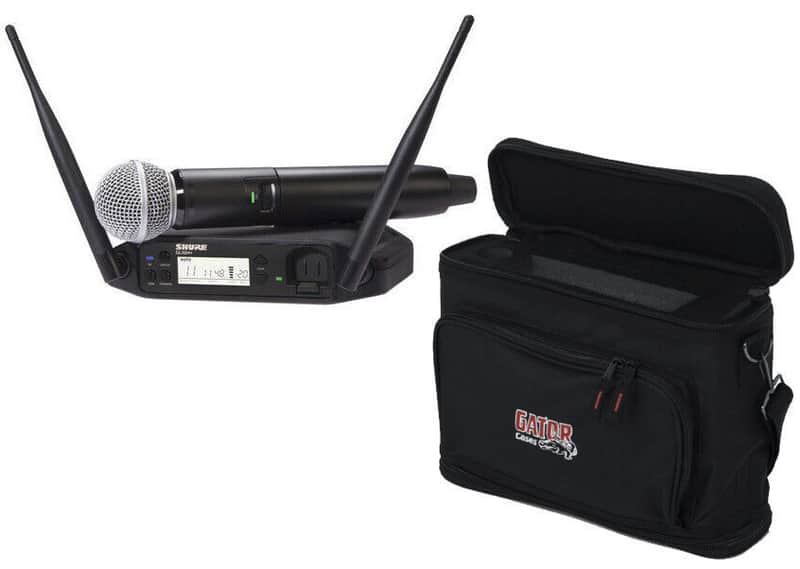

Shure GLXD24+/SM58-Z3 Digital Wireless Handheld System w SM58 Microphone + GM-1W bundle

Package Includes

• Shure GLXD24+/SM58-Z3 Digital Wireless Handheld System with SM58 Vocal Microphone (Z3: 2.4, 5.8 GHz)
• Gator GM-1W Wireless System Padded Travel Bag For A Single Wireless Mic System

Gator GM-1W Wireless System Padded Bag For A Single Wireless Mic System

Features

• Designed for single wireless system to be Used in the bag
• Access for antenna to be extended while in bag
• Holds lavalieres, cables, and wireless mic with receiver mounted
• Front and rear access unzips for easy setup in the field
• Information card window
• Removable and adjustable shoulder strap
• Lightweight durable Nylon outer shell

Specifications

• Model: GM-1W
• UPC: 716408503424

Interior Dimensions

• Length 16.00"
• Width 12.00"
• Height 5.00"
• Weight 5 lbs

Exterior Dimensions

• Length 13.75"
• Width 10.00"
• Height 4.50"
• Weight 4.00 lbs

Shipping Dimensions

• Length 16.00"
• Width 12.00"
• Height 5.00"
• Weight 5 lbs

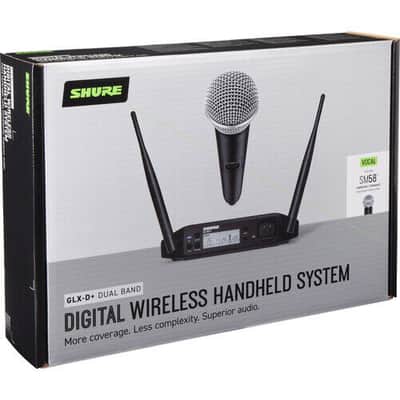

Shure GLXD24+/SM58-Z3 Digital Wireless Handheld System with SM58 Vocal Microphone (Z3: 2.4, 5.8 GHz)

Featuring the industry standard SM58® vocal microphone, the new GLXD24+/SM58 Dual Band Vocal System delivers superior, transparent digital audio.

The Shure GLXD24+ is a digital wireless handheld microphone system that offers reliability and outstanding sound quality in a package that's simple to use, even if you've never operated a wireless system before. Shure's next-generation technology handles the set up for you, automatically scanning both the 2.4 and 5.8 GHz frequency ranges to seek out the best possible digital transmission channel to ensure dependable performance for your performances, presentations, conferences, and events at a typical range of up to 100' indoors and 65' outside.

Specifications

System Wireless Technology

• Digital 2.4 GHz/5.8 GHz

Included Transmitters

• 1 x Handheld

Diversity

• True Digital Diversity

RF Frequency Band

• Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz

RF Bandwidth

• 208.5 MHz

RF Channel Scanning

• Auto-Scan

Max Operating Range

• 100' / 30.5 m (Line of Sight)

Max Transmitters per Band

• 8

Built-In Recorder

• No

Timecode Support

• No

Mobile App Compatible

• No
  *As of February, 2023: Check with manufacturer for the most up-to-date compatibility

Latency

• 4.5 to 8 ms

Dynamic Range

• 120 dBA

Encryption

• None

Modulation

• Proprietary

ReceiverReceiver Type

• Tabletop

Antenna

• 2 x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)

Number of Audio Channels

• 1

Audio I/O

• 1 x XLR 3-Pin Male Balanced Mic/Line Output
  1 x 1/4" TRS Female Balanced/Unbalanced Output

Audio Output Level

• XLR Output:
  +1 dBV
  1/4" Output:
  +8.5 dBV

Phantom Power Protection

• On 1/4", XLR Outputs

Frequency Response

• 20 Hz to 20 kHz (Dependent on Mic)

Network I/O

• None

Word Clock I/O

• None

USB/Lightning Connectivity

• 1 x USB-C Female (Firmware Update)

Impedance

• XLR Output:
  100 Ohms (Balanced)
  1/4" Output:
  100 Ohms (Balanced)
  50 Ohms (Unbalanced)

RF Output Power

• 10 mW (EIRP, Max)

Spurious

• Rejection: >35 dB

Power Requirements

• AC/DC Power Adapter

AC/DC Power Adapter

• 14.5 to 17 VDC at 600 mA (Included)

AC Input Power

• 100 to 240 VAC, 50 / 60 Hz

Display & Indicators

• 1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)

Housing

• ABS

Operating Temperature

• 32 to 113°F / 0 to 45°C

Dimensions

• 7.2 x 1.6 x 4.8" / 183 x 40 x 122 mm

Weight

• 10.9 oz / 310 g

TransmitterTransmitter Type

• Handheld

RF Output Power

• 10 mW (EIRP)

Audio I/O

• None

Pad

• None

Muting

• Off/On Switch

Auto-Level Control

• No

Gain Range

• -20 to +40 dB (1 dB Steps)

Sync Method

• Proprietary

Antenna

• 1 x External, Fixed (Handheld)

Power Requirements

• Battery

Battery Type

• 1 x Shure SB904 (Included, Replaceable)

Internal Battery Capacity

• 2420 mAh

Battery Charging Time

• .25 to 3 Hours

Approx. Battery Life

• 12 Hours (Lithium Rechargeable)

USB/Lightning I/O

• 1 x USB-C (Charging)

Display & Indicators

• 1 x LED (Battery Status, Sync)

Housing

• Metal, Plastic

Dimensions

• 2 x 9.7 x 1.5" / 51 x 246 x 37 mm (without Antennas)

Weight

• 9.7 oz / 275 g (without Batteries)

MicrophoneMicrophone Type

• Handheld

Color

• Black

Sound Field

• Mono

Capsule

• Dynamic

Polar Pattern

• Cardioid

Frequency Range

• 50 Hz to 15 kHz

Impedance

• 300 Ohms

Sensitivity

• -54.5 dBV/Pa

Packaging InfoPackage Weight

• 4.67 lb

Box Dimensions (LxWxH)

• 18.8 x 13 x 4.2"
