RCF HDL6-A Active Line Array Speakers 4 Pack w SUB-8006AS 18" Subwoofers Pk

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers - two powerful 6.0" woofers for a solid bass reproduction plus a high powered 1.7" voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.

The HDL 6-A is a two way active line array module designed for live sound reinforcement and installed sound applications. It features: 2 x 6.5-inch neodymium woofers, 1 x 1.7-inch neodymium compression driver, digital amplifier with switch mode power supply and DSP controlled Input section with selectable presets. The HDL 6-A delivers: 131dB max SPL; 1400 Watt peak power (700 Watts RMS); 65Hz - 20kHz frequency response. The HDL 6-A is a true active and high power ready to use touring system equipped with a high efficiency digital amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum. The HDL 6-A is powered by a 1400W peak power digital amplifier, split 200W for the HF and 500W for the LF. A new generation DSP handles all the processing within the cabinet and allows adjustment of HF projection. This setting is accessed by the button on the rear of the cabinets. MAIN XLR INPUT (BAL/UNBAL). The system accept female XLR input connectors and line level signals from a mixing console or other signal source. The output XLR male connector provides a loop trough for speakers daisy chaining.The Volume Knob controls the volume of the power amplifier. The control ranges from - (maximum attenuation) to the MAX level (maximum output). Status indicators - Power on indicator. When the power cord is connected and the power switch is turned on this indicator lights green. SIGNAL INDICATOR. The signal indicator lights green if there is signal present on the main XLR input. LIMITER INDICATOR. The amplifier has a built in limiter circuit to prevent clipping of the amplifiers or overdriving the transducers. When the peak clipping circuit is active the LED blinks orange. It is okay if the limit LED blinks occasionally. If the LED blinks frequently or lights continuously, turn down the signal level. The amplifier has a built in RMS limiter. If the RMS limiter is active the LED lights red. The RMS limiter has the purpose to prevent damages the transducers. The speaker shall never be used with the limit indicator red, continuous operation with the RMS protection active can cause damages to the speaker.

RCF HDL6-A Active Line Array Module Features:

• 1400 W, two-way amplification.
• 131 dB max SPL.
• 1.7" voice coil neodymium compression driver.
• 2 x high power neodymium 6.0" woofers.
• 48 kHz, 32 bit floating point DSP processing.
• Symmetrical design.
• Extremely low weight.
• FiRPHASE processing.

The SUB 8006-AS is the largest and most powerful active sub woofer in the professional series. Featuring two 18" transducers, with 4" inside/outside voice coils, this cabinet is designed to delivery a serious amount of low frequency. Powered by a 2500W digital amplifier module, the SUB 8006-AS can perform in the most demanding situations.

SUB 8006-AS Features:

• 5000 Watt Peak power - 2500 Watt RMS.
• 141 dB max SPL.
• 30 Hz - 120 Hz frequency response.
• 2 x 18" Woofer.
• DSP controlled Input section with selectable presets.
• Delay control.
• Integrated mechanics for multiple configuration with HDL 20-A.
• Baltic birch tour grade cabinet.

SUB 8006-AS Applications:

• Live sound.
• Rental.
• Portable PA, clubs, ballrooms, live theatre.
• House of worship.
• Theme parks.
• Music playback and sound reinforcement in small and mid-size venues.
• Corporate A/V professionals and sound system hire companies.

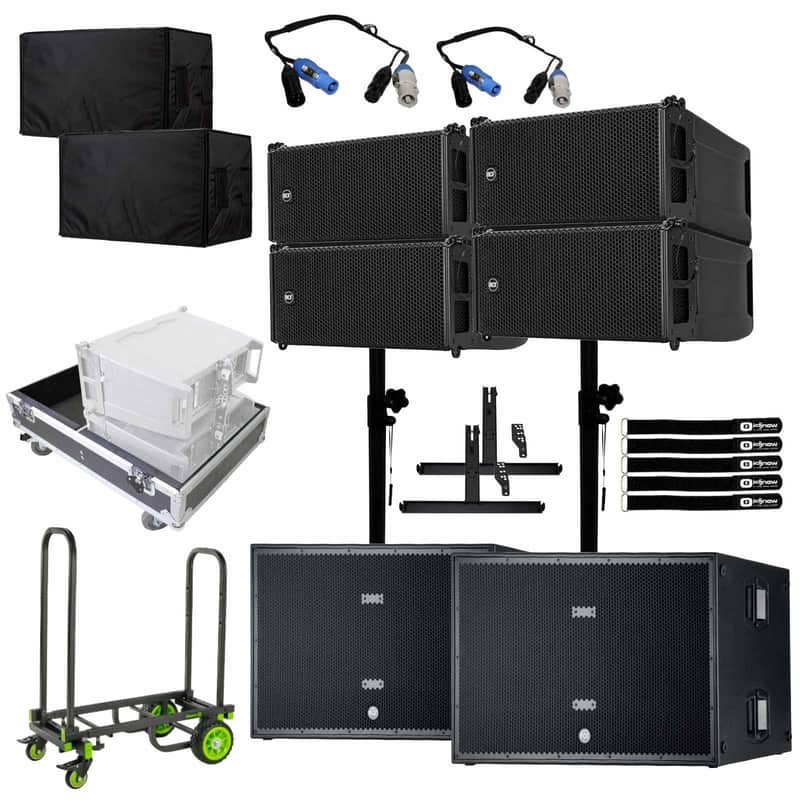

This Package Includes:
(4) RCF HDL6-A Active Line Array Modules
(2) RCF SUB 8006-AS Dual 18" Active High Power Subwoofers
(2) Power cords
(2) RCF PM-KIT 3X HDL 6 Pole Mount Kits for HDL26a Speakers
(2) ProX 2-in-1 36" Aluminum Adjustable Speaker Extension Pole Mounts [X-SPAM20]
(2) ProX 3FT Powercon and XLR Link Cables [XC-PWC14-XLR03]
(1) ProX X-RCF-HDL6ALAX4W Line Array Flight Case for 4 RCF HDL6-A Speakers with Wheels
(2) Properly Fitting & Durable Protective Transport Covers
(1) Gravity GCARTM01B Multifunctional Trolley
(5) 8" Reusable Hook and Loop Cable Ties
