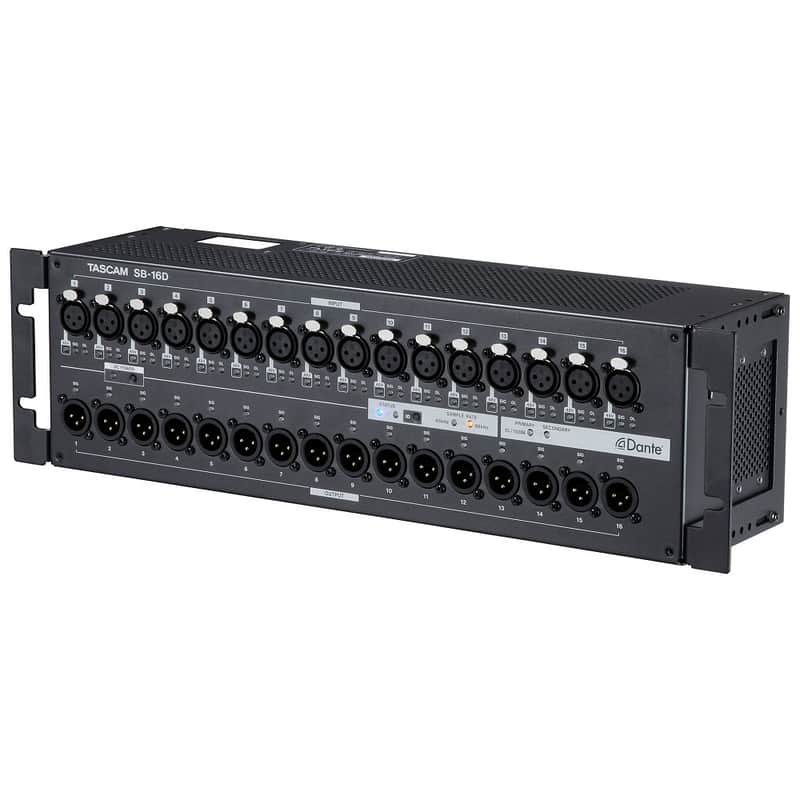

With sixteen microphone inputs and sixteen line outputs, the SB-16D stage box converter brings Dante digital audio functionality to your live stage or studio applications. Designed to work with the Sonicview 16 and 24 consoles (sold separately), the SB-16D features 16 XLR inputs and outputs, 32-bit A to D converters, HDIA mic preamps and is controllable from the Sonicview consoles or via smart devices (sold separately) with the TASCAM IO Control app. The SB-16D adds analog audio to or extracts it from Dante-encoded digital audio streams. The resulting audio is ready for distribution over a local network (Ethernet) to Dante-capable gear like the SonicView or via standard transmission to analog consoles and processors. Whether in a live concert or networked studio environment, the SB-16D's converted audio is compliant with SMPTE 2110 and 2110-30, making it ideal for production broadcast facilities.

Tascam SB-16D Includes:

• SB-16D x 1
• Power cord (JAPAN USA/EUROPE/OCEANIA) x 3
• Rack mount angle(mounting screw)set x 1
• Rack mount screw kit x 1
• TASCAM ID registration guide x 1
• Owner's Manual with warranty x 1

Tascam SB-16D Features:

• 16-channel analog / Dante converter
• 16 XLR microphone inputs with phantom power
• 16 XLR line outputs
• Class 1 HDIA microphone preamp
• 16 x 16 Dante capability with redundancy
• Supports up to 32-bit 96 kHz conversion
• Controllable via SonicView Consoles (sodl separately)
• Floor standing or 3RU mountable
• DB-25 GPIO port for expansion

Tascam SB-16D Specifications:

• Analog Audio Inputs and Outputs
  • MIC/LINE INPUTS (1-16)
    • CONNECTOR: XLR-3-31 type (1: GND, 2: HOT, 3: COLD)
    • Input Impedance: 5.0kΩ and more
    • Max Input Level: +32dBu (TRIM Min, PAD: ON), +12dBu (TRIM Min, PAD: OFF)
    • Min Input Level: -42dBu (TRIM Max, PAD: ON), -62dBu (TRIM Max, PAD: OFF)
    • Phantom Power: +48V available
  • LINE OUTPUTS (1-16)
    • CONNECTOR: XLR-3-32 type (1: GND, 2: HOT, 3: COLD)
    • Nominal Output Level
    • +6dBu (D.ref: -9dB)
    • +4dBu (D.ref: -14dB, -16dB)
    • +4dBu or 0dBu (D.ref: -18dB, -20dB)
  • Max Output Level
  • +15dBu(D.ref.: -9dBFS, A.ref: +6dBu)
  • +18dBu(D.ref.: -14dBFS, A.ref: +4dBu)
  • +20dBu(D.ref.: -16dBFS, A.ref: +4dBu)
  • +18dBu(D.ref.: -18dBFS, A.ref: 0dBu)
  • +20dBu(D.ref.: -20dBFS, A.ref: 0dBu)
  • +22dBu(D.ref.: -18dBFS, A.ref: +4dBu)
  • +24dBu(D.ref.: -20dBFS, A.ref: +4dBu)
  • *D.ref.: Digital Reference Level, A.ref.: Analog Reference Level
  • *0dBu=0.775Vrms
  • Output Impedance: 100Ω or less
• Digital Audio Inputs and Outputs
  • Dante(PRIMARY/SECONDARY)
  • CONNECTOR: etherCON Cat5e compatible
  • Number of channels: 64 channels (48 kHz), 32 channels (96 kHz)
  • Ethernet: 1000BASE T(IEEE802.3ab)
  • Cable: CAT5e STP
  • Supports redundant mode and Switched mode
• Other Inputs and Outputs
  • GPIO
  • CONNECTOR: D-sub 25pin (8in/8out, female, inch)
  • Input circuit: pull up (5V)
  • Output circuit: Open corrector
  • Output impedance: 10Ω
  • Withstand Voltage: 20V
  • Maximum current: 35mA
  • +5V Maximum supply current: 50mA
• General
  • Dimensions
    • 454(W) x 140 (H) x 179.6 (D) mm (The original foot is attached)
    • 482.8(W) x 132(H) x 120(D) mm (Rackmount angle is attached)
    • 17.88(W) x 5.52(H) x 7.08(D) inch (The original foot is attached)
    • 19.01(W) x 5.20(H) x 4.72(D) inch (Rackmount angle is attached)
  • Weight: 4.5kg / 9.93 lb
  • AC Power Supply: AC100V 240V 50/60 Hz
  • DC Power Supply: DC11V/4A - 27V/2A
  • Power Consumption: 44W
  • Operating Temperatures: 0 - 40 ℃
  • Control Software: TASCAM IO CONTROL
• Supported Operating System
  • Windows 11 64 bit, Windows 10 64 bit
  • macOS Monterey(12), macOS Big Sur(11), macOS Catalina(10.15)
  • iPadOS 15, iPadOS 14
• Included Items
  • SB 16D x1
  • Power Cord (JAPAN USA/EUROPE/OCEANIA) x1
  • Rackmount angle (screw) set x1
  • Rackmount angle screw kit x1
  • TASCAM ID registration guide x1
  • Owner's manual with warranty x1
• Audio Performance
• MIC PRE AMP EIN (Equivalent Input Noise): -128dBu or less
  • Distortion
    • 0.002% and less (MIC/LINE >Dante, +4dBu Inputs, PAD=OFF, TRIM MIN, JEITA)
    • 0.002% and less (DANTE >LINE OUTPUT, 0dBFS Outputs, JEITA)
  • Frequency characteristic
    • 20Hz - 20kHz +0dB、-0.5dB(48kHz) (MIC/LINE >LINE OUTPUT, JEITA)
    • 20Hz - 40kHz +0dB、-1.0dB(96kHz) (MIC/LINE >LINE OUTPUT, JEITA)
    • 20Hz - 20kHz +0dB、-0.5dB(48kHz) (DANTE IN >LINE OUTPUT, JEITA)
    • 20Hz - 40kHz +0dB、-1.0dB(96kHz) (DANTE IN >LINE OUTPUT, JEITA)
    • Crosstalk: 100dB or more (MIC/LINE >OUTPUT, 1kHz Sine wave, JEITA)
  • Dynamic range
  • 110dB or more (MIC/LINE >DANTE, PAD=OFF, TRIM MIN, D. 20dBFS, JEITA)
  • 111dB or more (DANTE IN >LINE OUTPUT, Sampling rate: 48kHz)
  • 112dB or more (DANTE IN >LINE OUTPUT, Sampling rate: 96kHz)
• *0dBu=0.775Vrms
• *D.ref: Digital Reference Level
• *Specifications and appearance are subject to change without notice for improvement.
