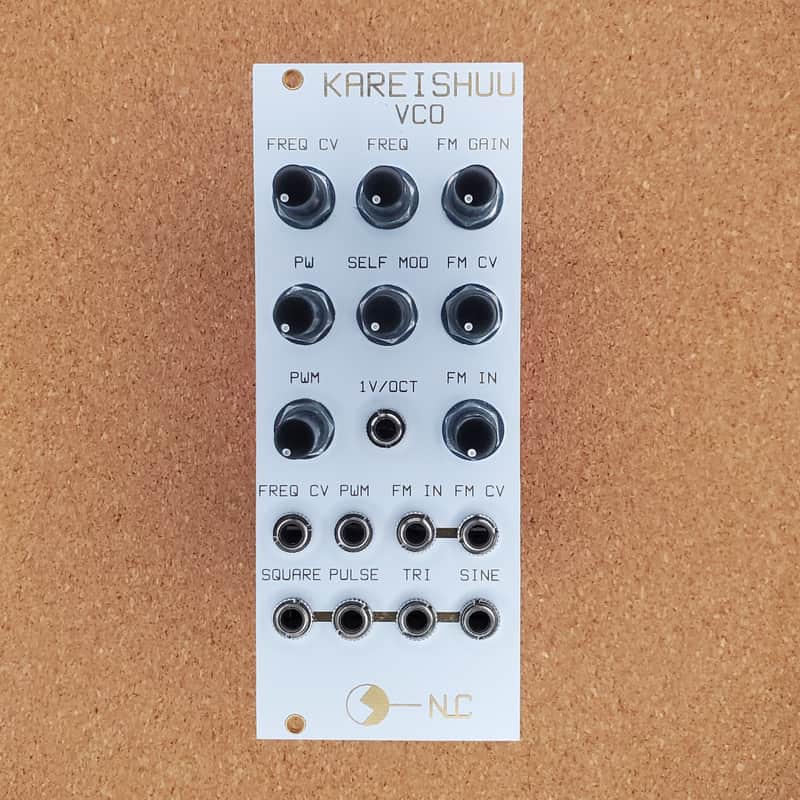

NLC Nonlinear Circuits Kareishuu VCO

NLC Kareishuu VCO

• 10 hp, White Panel

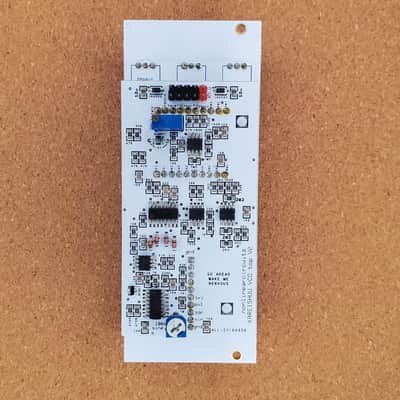

• Fresh build, tested, calibrated and fully functional
• Reverse power protection installed, comes with power cable
• Built with highest quality WQP-518MA jacks (20k+cycles)

Further information from nonlinearcircuits:

This VCO was mainly designed as an upgrade for the dual OTA VCO. It is a traditional triangle core VCO with a built in VCA for the FM control section. The design draws on sections of the Electronotes EN1, EN2 and EN3 VCOs along with some NLC injected in there for good measure.

It has much better tracking, a sine output and attenuators for all inputs. The self modulation control via the FM VCA enables voltage controlled waveshaping, the sine and tri waves can morph between their original shape to a pulse.
