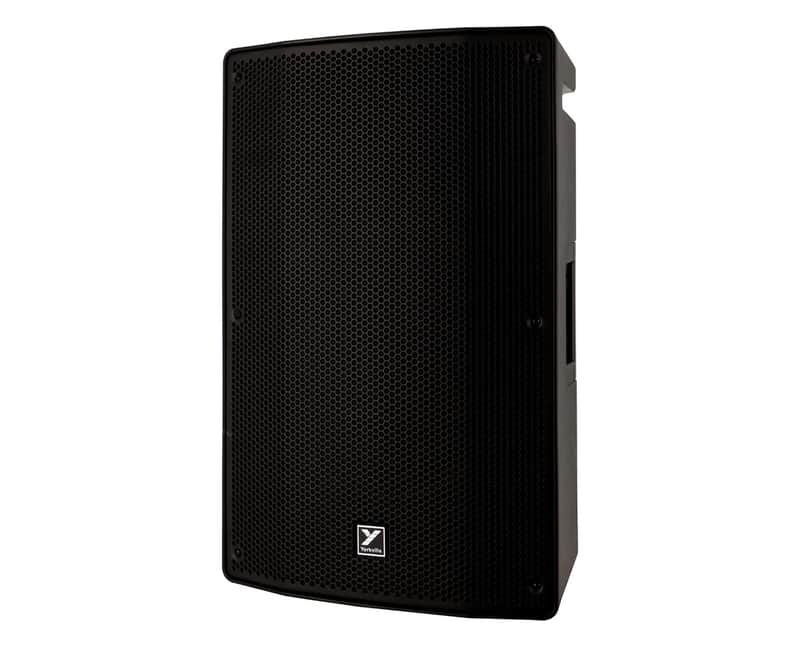

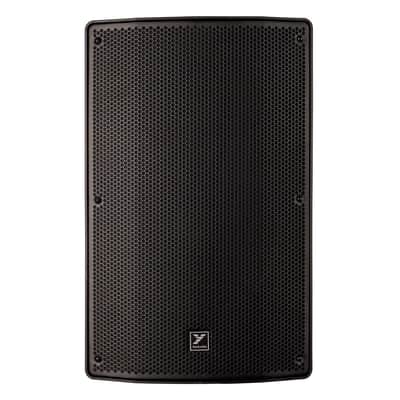

The YXL cabinets use a single driver and 90 x 40 degree horn with 1-inch throat and 1-inch compression driver. Constructed from strong Polypropylene, YXL is poised to uphold Yorkville's reputation for reliability and durability. The cabinets can be positioned upright or used as a monitor wedge.

Designed as an all-purpose speaker with the Musician & DJ in mind, each YXL cabinet features 3 channels. The cabinet supports Bluetooth streaming and EQ pushbutton controls for Concert, Club & Monitor modes.

• 1000 Watts (Peak) 500 Watts (Program)
• 15-inch woofer with 2.5-inch voice coil
• 3 Channels plus Master level
• 1-inch compression driver
• 90° x 40° HF dispersion
• Polypropelene cabinet construction
• Bluetooth streaming
• 3 performance modes (Concert, Club, Monitor)

Features

• System Type : Active Loudspeaker
• Active or Passive : Active
• Power Rating (Watts) : 500 Watts Program (1000 Watts Peak)
• Max SPL (dB) : 127dB Continuous
• Frequency Response (Hz +/- 3dB) : 45 - 16k (Hz +/-3dB)
• Dispersion (°H x °V) : 90 x 40
• Crossover Frequency (Hz) : 1.6kHz
• HF Horn : Integrated into Baffle
• LF Driver(s) : 15-inch (2.5-inch voice coil)
• LF Power Rating(Watts) : 450 Watts Program (900 Watts Peak)
• HF Power Amplifier (Watts) : 50 Watts Program (100 Watts Peak)
• HF Amplifier Type : Class A/B
• LF Amplifier Type : Class D
• Cooling Scheme : Speed controlled fan
• Power Cable : Yes
• Power Switch : Yes

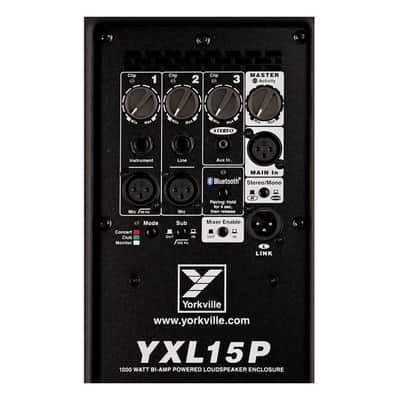

• Mixer Controls : 3 recessed dial controls
• Level Controls : x3 Chanels + Master
• EQ Controls : Push button select, Concert, Club, Monitor
• Limiter : Multiband excursion, RMS, rail
• Other Controls / Features : 100 Hz HP with Sub, Mixer IN/OUT, Stereo/Mono out, 3.5mm Aux in, BT streaming
• Feet : Rubber
• Bar Handles : 2 x Side / 1 x Back
• Flying Hardware : 2 (Top), 1 (Pullback)
• Optional Flying Hardware : Yes
• Enclosure Materials : Polypropelene, Metal grille
• Baffle Material : Polypropylene
• Grille : Powder Coated Steel with Grille Cloth
• Other Details : Rubber feet on bottom and side with the monitor Wedge
• Dimensions (DWH xbackW, inches) : 14.75 x 17 x 27.375
• Dimensions (DWH xbackW, cm) : 37.5 x 43.18 x 70.4
