When it's showtime, Shure's dropout-free GLXD+ Dual Band Digital Wireless lets you take the stage with total confidence, providing rock-solid performance so you can focus on your playing. The GLXD16+ includes a pedalboard receiver, bodypack transmitter, and WA305 premium cable for use with guitar, bass, and other instruments with a pickup and a 1/4" output. The rugged GLXD6+ stompbox receiver will be right at home on your pedalboard and you can make space by removing your current tuner since the GLXD6+ is equipped with a highly accurate, easy-to-read tuner that supports standard and alternate tuning. There's also a 1/4" input for practicing or tuning without turning the receiver on. Plus the system includes Shure's WA305 premium cable! With its advanced Dual Band Wireless Technology, GLXD+ operates in the license-free 2.4 and 5.8GHz ranges, providing more than double the available bandwidth and intelligently avoiding interference. The GLXD16+ is a pedalboard system that's easy to set up and operate thanks to auto-pairing and Smart frequency management. The transmitter features a twelve-hour runtime battery making power concerns a thing of the past. Of course, things don't always go as planned. So Shure engineered the SB904 battery to deliver a 1.5-hour runtime from a 15-minute quick charge. And you have options because the SB904 can be recharged in the receiver's front panel or via USB-C while still in the transmitter. Get your GLXD16+ today and experience the freedom!

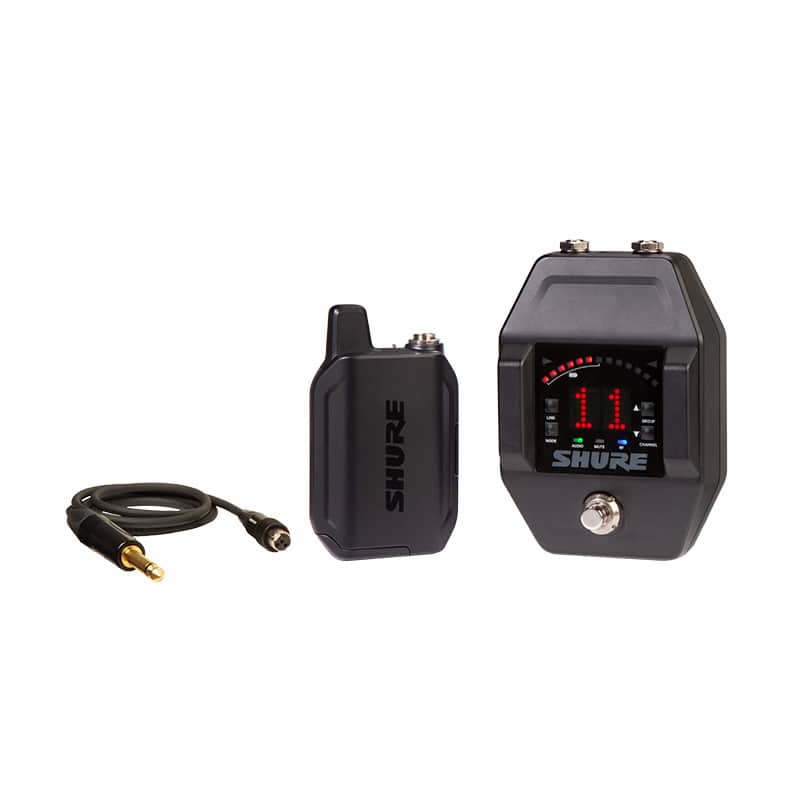

Shure GLXD16+ Includes:

• 1 PS24 Power Supply
• 1 SB904 Lithium-Ion Rechargeable Battery
• 1 WA305 Premium Instrument Cable
• 1 SBC10-USBC Wall Charger
• 1 GLXD6+ Guitar Pedal Receiver
• 1 GLXD1+ Bodypack Transmitter

Shure GLXD16+ Features:

• Guitar Pedal GLXD+ Dual Band receiver + bodypack transmitter.
• Dual Frequency operation (2.4GHz and 5.8GHz).
• Similar look and features of prior GLXD6 version.
• Tuner included.
• WA305 Premium Guitar Cable included.
• New ¼” guitar input allows user to practice and use the tuner without the need of a transmitter turned on and connected.

Shure GLXD16+ Specifications:

• System
• • Compatibility
  • • With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions
    • Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
  • System Operating Range:
  • • Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions
    • Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
  • Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
  • Audio Frequency Response: 20 Hz – 20 kHz Note: Dependent on microphone type
  • Dynamic Range: 120 dB, A-weighted
  • RF Sensitivity: -88 dBm, typical
  • Total Harmonic Distortion: 0.07%, typical
  • RF Output Power: 10 mW E.I.R.P. max
  • Operating Temperature Range: -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.
  • Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
  • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces
  • positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
  • Battery Life: Up to 12 hours
  • NOTE: All Specifications are subject to change. Performance may vary depending on country regulations and operating environment.
• GLXD6+ Receiver
• • Dimensions: 5.4 x 3.7 x 1.89 in. (138 x 95 x 48 mm, H x W x D
  • Weight: 19.75 oz (560 g)
  • Housing: Aluminum alloy
  • Power Requirements: 9 V - 15 V, 400mA (efficiency level VI power supply)
  • Spurious Rejection: >35 dB, typical
  • Gain Adjustment Range: -20 to 40 dB in 1 dB steps
  • Configuration: 6.35 mm (1/4“) output, Impedance balanced
  • Impedance: 6.35 mm (1/4“) output, 100 Ω (50 Ω, Unbalanced)
  • Maximum Audio Output Level 6.35 mm (1/4“) connector (into 3 kΩ load): +8.5 dBV
  • Pin Assignments 6.35 mm (1/4“) connector: Tip=audio, Ring/Sleeve=ground
  • Audio Input Modes: Tuner or True Bypass
  • RECEIVER ANTENNA INPUT
  • Impedance: 50 Ω
  • Antenna Type: Dual Band Internal Monopole
  • Maximum Input Level: −20 dBm
