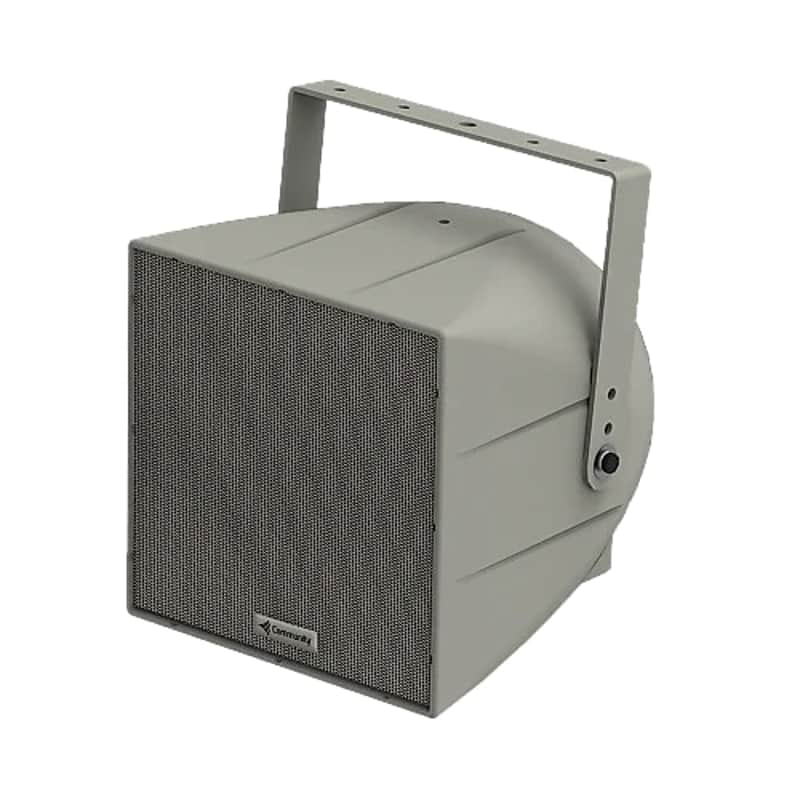

Community R.25-94Z -8" 2-Way Full Range Speaker -Weather Resistant -Light Grey -new-old-stock

Community R.25-94Z -mint and in-box-
~New-old-stock  ~Light Grey  ~Shipping Included

product specs

Applications

• Convention centers
• Fill speaker for stadia, athletic fields, arenas and race tracks
• Outdoor background music / paging systems
• Theme and amusement parks
• Fairgrounds and rodeos
• Malls, cruise ships, skating rinks
• Swimming pools

Features

• 90ᵒ by 40ᵒ compression driven 3/4" HF horn
• 8" LF speaker
• Weather-resistant, rotomolded UV enclosure
• Weather-treated drivers and crossovers
• Max Input Ratings: 200W continuous, 500W program
• 40 volts RMS, 89 volts momentary peak

Specifications

• Loudspeaker Type: 2-way, horn loaded, coaxial, weather-resistant
• Operating Range:
• • 100 Hz to 16 kHz
  • 160 Hz to 12.5 kHz (±3 dB)
• Max Input Ratings:
• • 200W continuous, 500W program
  • 40 volts RMS, 89volts momentary peak
• Recommended Power Amplifier: 420W to 600W @ 8 ohms
• Sensitivity (1W/1m):
• • 97 dB SPL (160 Hz to 10 kHz 1/3 octave bands)
  • 97 dB SPL (250 Hz to 4 kHz speech range)
• Maximum Output: 120 dB SPL / 127 dB SPL (peak)
• Nominal Impedance: 8 ohms
• Minimum Impedance: 4.6 ohms @ 10.4 kHz
• Nominal –6dB Beamwidth:
• • 90°H (+7° / -13°, 2 kHz to 10 kHz)
  • 40°V(+35° / -10°, 2 kHz to 10 kHz)
• Axial Q / DI: 13.5 / 11.3, 2 kHz to 10 kHz
• Crossover Frequency: 2 kHz
• Recommended Signal Processing: 100 Hz high pass filter
• Drivers:
• • LF (1) 8” cast frame, Cool-Coil™
  • HF (1) 3/4” exit, titanium free, Ferrofluid-cooled
• Driver Protection: DYNA-TECH protection circuitry
• Input Connection: 16-2 SJOW (12 ft /4 m)
• Controls: None
• Enclosure: Rotomolded HDPE, light gray color
• Enclosure Hardware: None
• Mounting/Rigging Provisions:
• • (5) rigging points (M8hardware)
  • 1-3/8" pole mount socket
• Grille: 16-gauge perforated stainless steel, 3-layer WeatherStop grille
• Required Accessories: 24 dB/Oct high pass filter
• Supplied Accessories: (1) Stainless steel (304) yoke bracket
• Optional Accessories: Pole mount system
• Dimensions (H x W x D): 11.3" x 11.3" x 11.3" (287 x 287 x 287 mm)
• Weight: 20 lbs. (9.1 kg)
