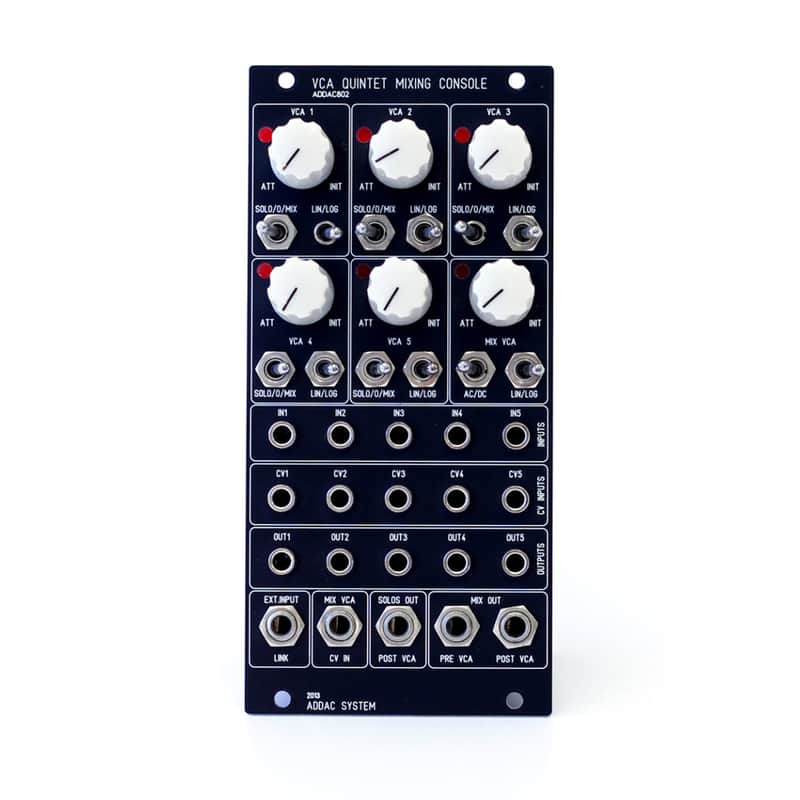

ADDAC System ADDAC802 VCA QUINTET MIXING CONSOLE 2013 - Black

Features:

5 Channel Mixer
1 Master Output
External input into the Mix channel for daisy chaining.
2 independent mixing paths, Solo and Mix
Mix Output includes a 6th VCA with Pre and Post outputs

Each of the 5 channels has:
. VCA with initial Knob
. Monitor LED
. Independent output
. Linear or logarithmic control
. Solo/Off/Mix switch that routes their audio to the Solo Channel or the Mix channel. In Off position the VCA does not go to the outputs.

All 5 VCA's can be used separately for different sources (audio or cv) or mix in 2 different chains.

Outputs:
. 1 Pre Master VCA output
. 1 Post Master VCA output
. 1 Solo output

The Solo line is also intended for Pre Listening purposes, using this output to connect your headphones through some headphone amplifier module.

Specs:

Mechanical:
. Format: Eurorack
. Width: 12 HP
. Depth: 55mm

Control Voltage I/O:
. CV inputs: ± 10v

Electrical:
. Compatible with +-12v and +-15v power supplies

. Max current: +190mA/-150mA
. Bus Board Cable: 8 × 2 IDC (Doepfer style) connector

Note: All specifications and features are subject to change without previous notice.

LEAD TIME - IMPORTANT NOTE:
Although this is also described in our Shop Policy page, it is worth stressing that, by virtue of being a small team and not outsourcing a great part of our production, long story short, we sort of make your order on demand.
After you place an order, it takes 15 business-days to be ready to ship.
This is why you'll see this module as 'in stock', but this in fact means that we do have all its parts and can produce your module. Thanks for understanding, and for choosing us!
