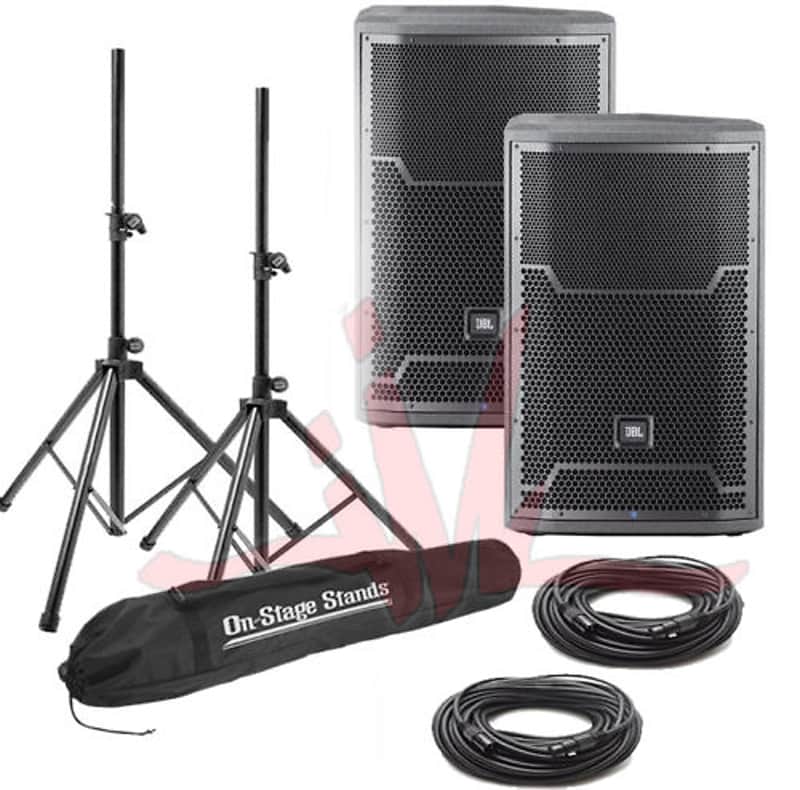

You will receive the following:
2 x JBL PRX 715 Powered Speakers
2 x On-Stage SSP7900 Speaker Stands

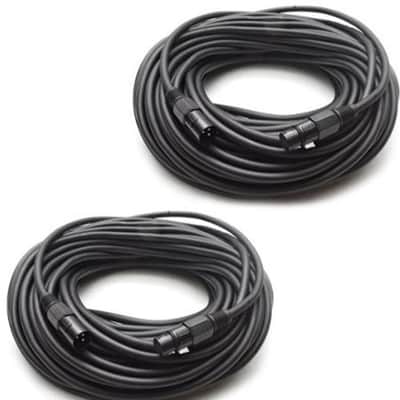

2 x 30FT XLR CablesÃ��Ã�Â

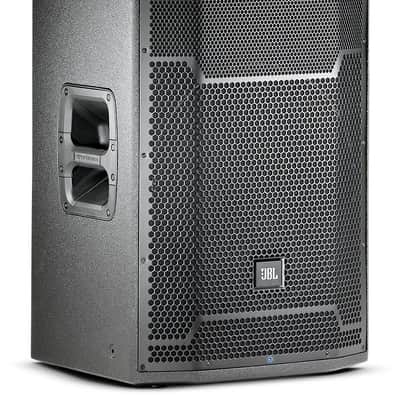

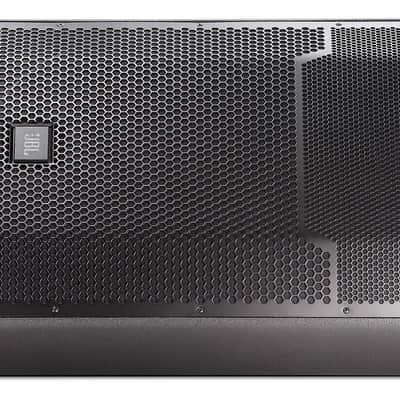

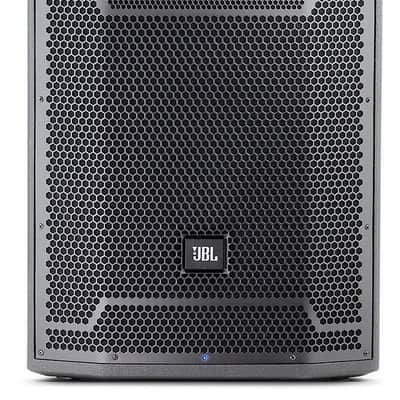

The JBL PRX715 is the next step in the highly successful PRX Series and introduces the first use of JBL�¢ï¿½ï¿½s patented Differential Drive���® Technology with ferrite drivers. Differential Drive technology incorporates lower mass in the ferrite magnet for reduced weight while maximizing power amp efficiency for greater heat dissipation and increased power handling. Powering the PRX715 is a 1500 Watt high performance, exceptionally low distortion biamplification system engineered to deliver clean power with maximum headroom to efficiently deliver smooth high frequencies and rich, deep bass response even at very high sound power levels. Compact, ultra-lightweight, the PRX715 uses JBL�¢ï¿½ï¿½s tour tested technology throughout so you can trust it to deliver a lifetime of reliable performance.

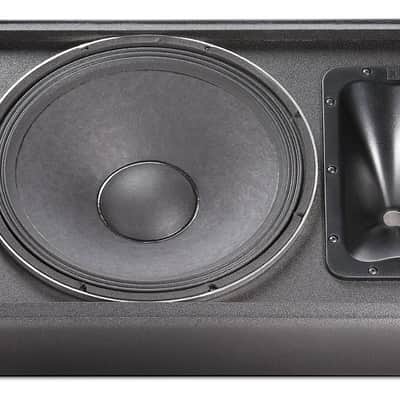

High Performance Drivers
37.5mm (1.5") Annular Polymer Diaphragm, Neodymium Magnet Compression Driver Resulting in Crystal Clear Highs and Sonic Accuracy. Wide coverage angles are achieved without compromise and harmonic distortion is minimized for maximum driver SPL without harshness.
Amplification
Highly efficient Class-D amplification drives Maximum Sound Pressure Levels are the best indication of the performance of a powered speaker and all PRX700 Series excel in this critical specification. JBL's ability to maximize the speaker and amplifier performance guarantees ample power, accurate dynamics and sonic purity.
Low Frequency
Tour tested Differential Drive technology delivers extended frequency response, high power output and low distortion in a dramatically lighter package. With the ferrite magnet positioned inside the dual-coil/dual-gap voice coil, heavy steel pole pieces are eliminated. The heat sink is the chassis itself, further lowering system weight while ensuring consistent, reliable performance
Road Tough Construction
Built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. JBL's tour proven DuraFlexÃ�¢ï¿½Ã�¢ finish, grilles from dent-resistant 16 gauge steel, and light-weight glass-filled nylon handles ensure strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each. A seriously rugged package that will withstand the brutality of constant road use.Ã��Ã�Â
Coverage
System coverage is 90���° horizontal and 50���° vertical with excellent coverage throughout the system�¢ï¿½ï¿½s bandwidth. The sound is smooth and consistent without hotspots so control is optimized.
Configurations
The PRX700 Series is a platform technology with a range of models that integrate seamlessly for multiple system options that excel in challenging audio environments and loud volumes. The PRX715 delivers optimum performance for live music, music playback, DJ and speech, and as an exceptional light-duty installation speaker when hung by the built-in suspension points.
- Single speaker on a stand for public address
- Full-range stereo set up with two top cabinets and asub-woofer for live performance or DJ
- Multiple cabinets for a scalable, highly professionalsound reinforcement system
- Suspend any of the top cabinets for use in commercial installations or Houses of Worship

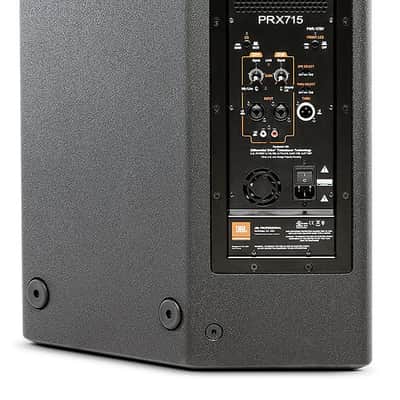

Input Panel
An integrated limiter circuit on the inputs guarantees signal integrity. System performance is optimized through the use of sophisticated Digital Signal Processing for EQ, crossover, amplifier control, and protection.
- DSP Input limiter circuit, crossover, dynamiclimiting, component optimization, selectable system EQ
- XLR-1/4" combination mic/instrument inputs, RCAinputs, and XLR loop-through
- Easy to use mixing via selection switches on both the input andloop-thru
JBL PRX715 Features:
- 136 dB peak SPL
- 15" Differential Drive���® low-frequency driver forlow-distortion and higher SPL
- 1.5" diameter next generation JBL neodymiumcompression driver
- JBL designed waveguide for accurate coverage
- Efficient Class-D amplifier technology
- Optimized EQ for monitor or front-of-houseapplications
- DSP input section, crossover, dynamic limiting,component optimization, selectable system EQ
- Line level and direct microphone input capability
- Professional XLR-1/4" combination inputs, RCA inputs,and XLR loop-through
- Multi-angle enclosure for main PA or floor monitorapplications
- Integrated 36 mm pole mount socket with angle downtilt
- Injection molded handle with backing cup for easytransport
- Integrated M10 suspension points for easy setup
- Lightweight poplar plywood cabinets made structurallysound with tongue and groove joints and protected by JBL's tour provenDuraFlex�¢ï¿½�¢ finish.
- Cloth backed, dent-resistant 16 gauge steel grilles
JBL PRX715 Specifications:
- Power Rating:��� ��� 1500 W
- Frequency Range (-10 dB):
- Main:��� 42.9 Hz - 19.5 kHz
- Monitor:��� 43.6 Hz - 19.3 kHz
- Frequency Response (+/- 3 dB)
- Main:��� 58.1 Hz - 17.2 kHz
- Monitor:��� 60.7 Hz - 16.7 kHz
- Coverage Pattern:��� ��� 90���° x 50���° nominal
- Directivity Index (DI):��� ��� 10.2 dB
- Directivity Factor (Q):��� ��� 10.4
- Crossover Frequency:��� ��� 1.7 kHz
- Maximum SPL:
- Normal: 136 dB
- Boost: 136 dB
- Signal Indicators:Ã��Ã� Ã��Ã�Â
- Limit:��� Yellow LED indicates peak output has been reached and��� DSP limiter is acting
- Signal:��� Green LED indicates signal present
- Power/Standby:��� Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.
- Dynamic Control (Input):��� ��� dbx Type IV�¢ï¿½�¢ limiter circuit
- Input Impedance:��� ��� 20 kOhms (balanced), 10 kOhms (unbalanced)
- LF Driver:��� ��� 1 x JBL 275G (15") woofer
- HF Driver:��� ��� 1 x JBL 2408H-2 37.5 mm (1.5") annular polymer diaphragm, neodymium compression driver
- Enclosure:��� ��� Asymmetrical, 18 mm, plywood
- Suspension / Mounting:��� ��� Dual 36 mmpole socket (straight and slanted pole mount), 12 x M10 Suspension Points
- Transport:��� ��� 1x injection molded handles with backing cup
- Finish:��� ��� Obsidian DuraFlex�¢ï¿½�¢ finish
- Grille:��� ��� Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
- Input Connectors:��� ��� 2x Balanced XLR / 1/4" input, 2x unbalanced RCA input
- Output Connectors:��� ��� 1 male XLR balanced output
- Dimensions:��� 28.13" H x 17.52" W x 14.12" D
- Net Weight:��� 47.5 lbs each
On-Stage Stands SSP7900��� Aluminum Speaker Stands:
On-Stage Stands 'SSP7900 includes 2 all-aluminum speaker stands and 1 speaker stand bag.��� The bag features a��� drawstring closure, an adjustable shoulder carrying strap, and an interior center divider. ��� Holds 2 speaker stands.
Stand Height Adjustment Range:��� 44"-80"
Weight Capacity:��� 120 lbs per stand
