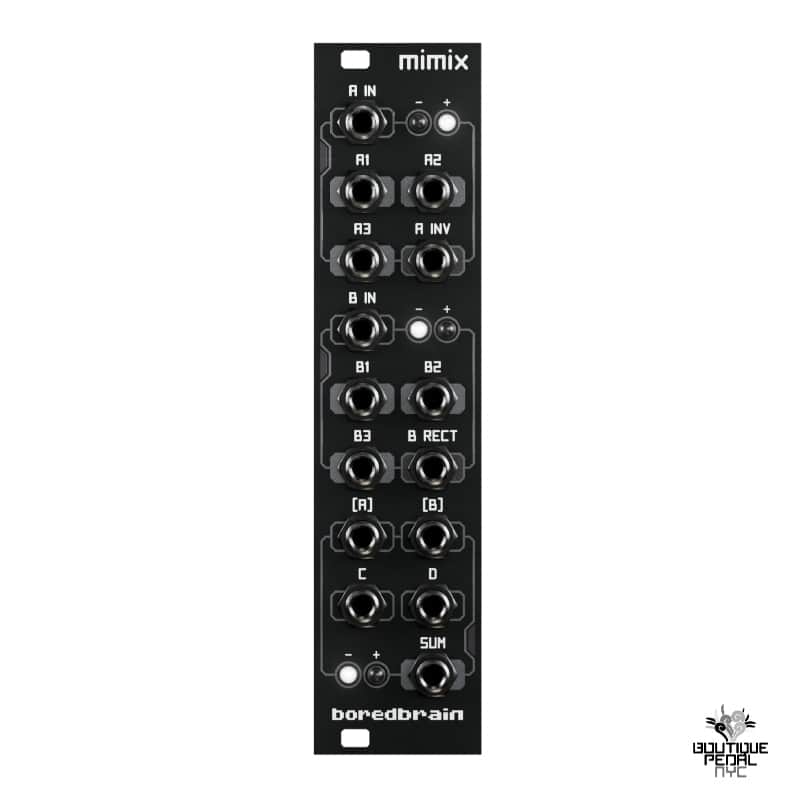

Boredbrain Music mimix (BPNYC)
Only 1 left
Grab it before it's gone
DUAL MULTIPLE & UNITY MIXER
- 1 to 4 buffered multiple with inverted 4th copy
- 1 to 4 buffered multiple with rectified 4th copy
- 4 to 1 unity mixer normalled to the two multiples
- Bipolar LED signal indicators for each section
Mimic and mix
Mimix is a handy utility for copying and combining signals in eurorack systems. The module features three sections: two buffered multiples each with an augmented fourth output, and a 4-input unity summing mixer.
Duplication
Mimix has two independent multiples, A and B, each with four available copies of either audio or CV. Unlike passive multiples, these buffered copies use active circuitry to ensure there is no signal loss or interaction between the signals.
Additionally, the input impedance is very high so the source signal is essentially unaltered, and precision components are used so that each copy is identical. This is necessary when copying voltages scaled to 1V/oct for pitch control of oscillators and sound sources.
The two multiple sections, A and B, each have two WHITE LEDs which help to visualize the strengths and polarities of the input signals.
technical specs
- Width: 6 HP
- Depth: 1.0 in (25 mm)
- Weight: 2.0 oz (57 g)
- Input impedance: 1 MΩ
- Power: +12 V 40 mA, -12 V 40 mA
