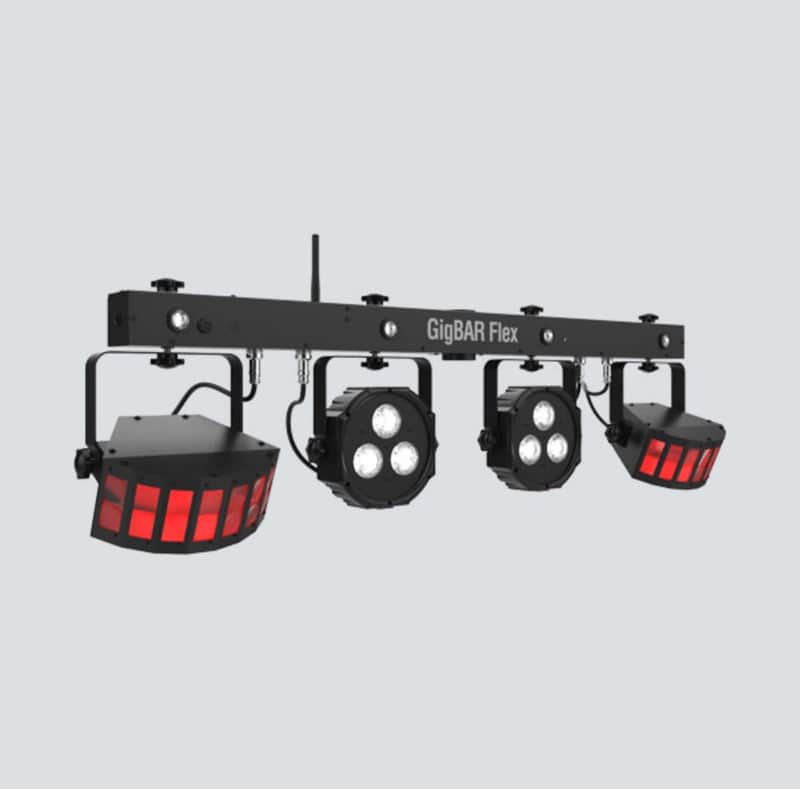

Chauvet GIGBARFLEX DJ Projection Lighting Effect (Gig Bar Flex): Unleash Your Creativity on the Dance Floor

GigBAR Flex is an ultra-convenient 3-in-1 Pack-n-Go lighting system with a pair of LED Derbys, LED Quad-color pars (RGB + UV for increased color mixing and effects) and strobes. A pass-through mounting hole for flexible mounting options with various stage and speaker stands and adjustable leg brackets adds versatility.

Highlights

• 3-in-1 fixture includes a pair of LED Derby, LED pars and strobe effect for ultimate convenience

• Pass-through mounting hole for flexible mounting options with various stage and speaker stands

• Built-in UV (blacklight) for increased color mixing and effects

• Four individually adjustable heads provide wide room coverage and lighting versatility

• Wireless footswitch for convenient hands-free control

• Built-in automated and sound-activated programs make dynamic light shows easy

• Get in and get out quickly with the included wireless footswitch and FREE carry bag

• Master/slave multiple units under the control of a single IRC-6 or wireless foot switch

Features

The Chauvet GIGBARFLEX DJ Projection Lighting Effect offers an array of features that will enhance your stage presence and create stunning lighting effects:

• All-in-one design: The Gig Bar Flex combines multiple lighting fixtures into a single unit, including a derby, laser, wash, and strobe lights. It provides a complete lighting package in one convenient setup.

• Versatile lighting effects: Create captivating light shows with the derby effect, laser beams, wash lighting, and strobe effects. These versatile options allow you to adapt the lighting to suit different moods and musical genres.

• Wireless footswitch compatibility: Control the Gig Bar Flex wirelessly using an optional footswitch (sold separately), giving you the freedom to switch between lighting effects effortlessly during your performance.

• Adjustable stand: The included stand allows you to position the lighting effect at various heights, ensuring optimal coverage and visibility across the dance floor.

• Multiple control options: Take full control of the lighting effect using DMX, standalone, or sound-activated modes. The Gig Bar Flex offers flexibility, whether you prefer manual control or synchronized lighting based on the music.

Specifications

To provide you with a comprehensive overview, here are the detailed specifications of the Chauvet GIGBARFLEX DJ Projection Lighting Effect:

• DMX Channels:3, 8 or 20
• DMX Connectors:3-pin XLR
• Light Source:(pars): 6 LEDs (quad-color RGB + UV) 3.5 W (1 A), 50,000 hours life expectancy
  (strobe): 4 LEDs (white & UV) 5 W (1.5 A), 50,000 hours life expectancy
  (derby): 6 LEDs (2 red, 2 green, 2 blue) 5 W (1.6 A), 50,000 hours life expectancy
• Strobe Rate:0 to 18 Hz
• Beam Angle:(pars): 13°
  (strobe): 8°
• Field Angle:(pars): 24°
  (strobe): 18°
• Coverage Angle:(derby): 114°
• Illuminance:(pars): 1,078 lux @ 2 m (per head)
  (strobe): 86 lux @ 2 m (per zone)
• Power Linking:12 units @ 120 V; 22 units @ 230 V
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:45 W, 0.7 A @ 120 V, 60 Hz
  46 W, 0.4 A @ 230 V, 50 Hz
• Weight:11 lb (5 kg)
• Size:37 x 4 x 15 in ( 949 x 110 x 388 mm)
• Approvals:CE
• Foot Switch Operating Frequency: 433 MHz
• Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
• Footswitch battery: 12 V A 23
