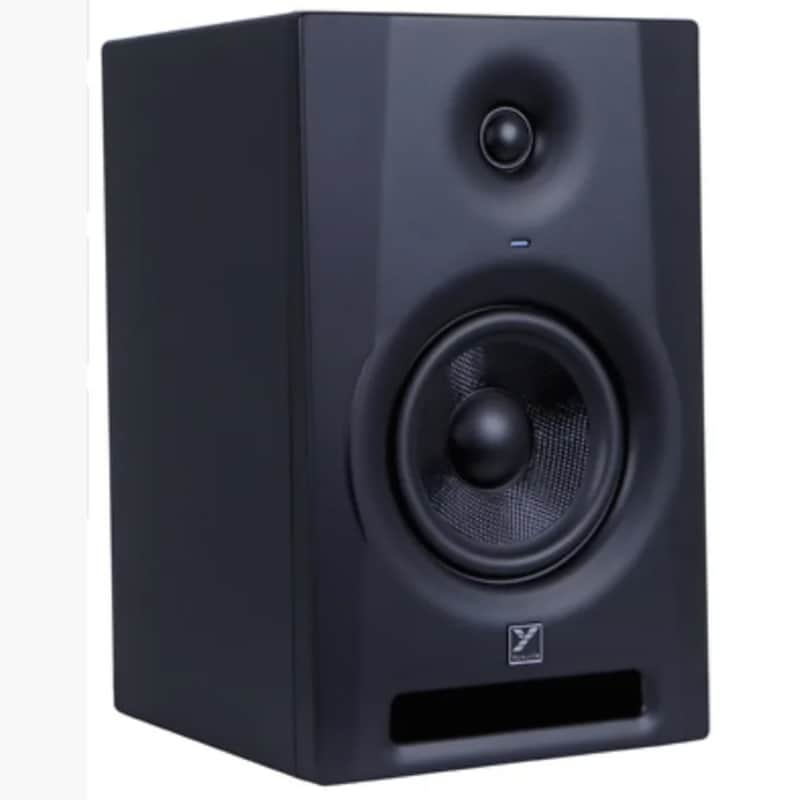

Yorkville YSM8-2 | 8", 2-Way Active Studio Monitor. New with Full Warranty!
This seller has not set a shipping cost for Portugal. Please contact them to ask about shipping.
Our users rate Reverb
Studio Monitors Series - YSM8-2 100w, 8-inch powered studio monitors
Yorkville Sound's YSM SERIES II Powered Studio Monitors are engineered to deliver the uncompromising clarity your mixes demand. Designed with project and professional studios in mind, the YSM SERIES II has been developed to be the best-sounding monitor in its class.
Features
- 8-inch low frequency driver; 1-inch silk dome tweeter
- Balanced XLR and 1/4- inch TRS inputs
- Unbalanced RCA input
- High and Low Frequency Adjust Controls
- Built in HF and LF limiters
- Volume Control
Overview
The YSM8-2 features 1-inch black-silk diaphragm neodymium dome tweeters. These tweeters blend seamlessly into the specially designed low-diffraction waveguide which is integrated into the front baffle. The edges of the wave-guide perfectly couple the tweeter with the woofer, reducing sonic anomalies normally associated with driver/tweeter proximity. The fibre-reinforced composite cone woofers have also been designed to perform with sonic excellence, providing a wide dynamic range at all levels. Integrated DSP is utilized to deliver transparent signal processing and bi-amplification has been optimized for each driver. The woofer and tweeter have been perfectly time aligned to eliminate any phase irregularities usually associated with 2-way designs.
Specifications
System Type 2-Way
Active or Passive Active
Power Rating (Watts) 100
Biampable Self Powered
Biamp Operation Only Yes
Max SPL (dB) 105
Frequency Response (Hz +/- 3db) 40Hz-22kHz
Crossover Frequency (Hz) 2.1 kHz
HF Driver(s) Neo Soft dome Ferro Fluid
HF Power Rating (Watts) 25
HF Protection Therm, Over voltage, Clip
LF Driver(s) 8-inch composite
LF Power Rating (Watts) 75
LF Protection Therm, Over voltage, Clip
HF Distortion 0.015
LF Amplifier Type Class D
LF Distortion 0.01 %
Cooling Scheme convection
Power Cable Included
Power Switch Back, with LED on Baffle
Inputs - 1/4" Jacks 1
Inputs - XLR 1
Level Controls 1
LED Indicators power on front
Enclosure Materials MDF
Baffle Material MDF/ABS
Covering / Finish Textured Vinyl
Dimensions (DWH xbackW, inches) 10.8 x 10.25 x 16.5
Dimensions (DWH xbackW, cm) 27.43 x 26.04 x 41.91
Weight (lbs/kg) 21 / 9.5
Specifications subject to change without notice
