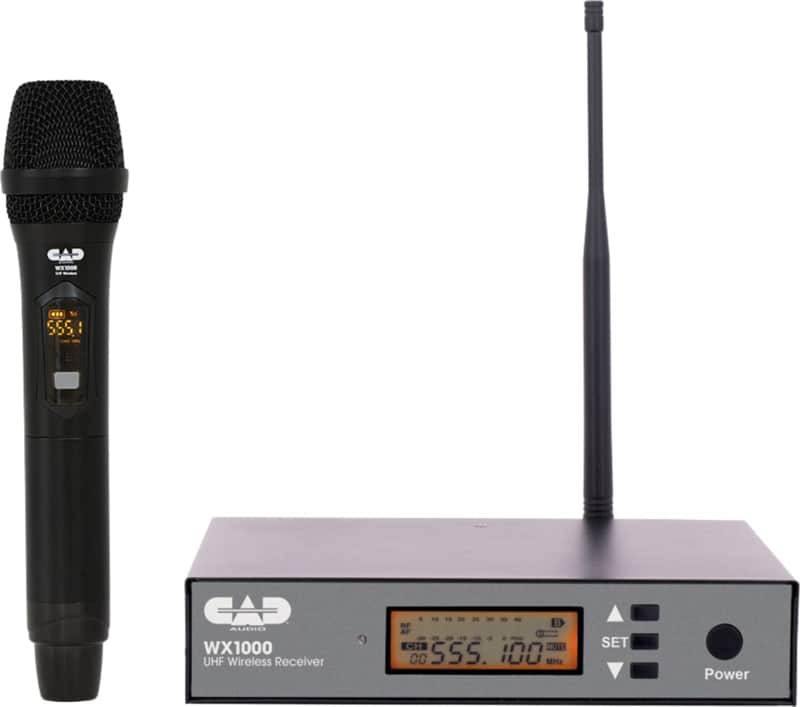

The WX1000HH is a Frequency Agile UHF Wireless Handheld System which operates in the 510-570mHz frequency band and features 100 channels for optimum clarity of signal. Auto-scan and IR sync functions make set up and channel-changing a breeze. Enjoy up to 12 hours of run time using two AA batteries, with a battery level indicator on both the transmitter and receiver, so you’ll know when you need to replace them. All metal construction and included rack mounting hardware help ensure your equipment will stand up to even the toughest conditions.

Product Features

• Frequency Agile Design (100 switchable frequencies)
• Use up to 20 systems at the same time
• Up to 295' (90m) range between transmitter and receiver
• Rugged, all metal construction
• Auto scan finds the optimal frequency setting
• IR sync wirelessly matches transmitter and receiver frequencies
• Transmitter and receiver feature low battery indicators
• Transmitter utilizes 2 AA Batteries with >12 Hrs of operation
• Rack mounting hardware and antennal relocation kit included

Technical Specifications

• Features: Battery-Powered, Rackmountable, Wireless
• Format: Vocal
• System Frequency Range: 510MHz – 570MHz
• System Frequency Response: 30Hz - 18KHz
• System Operating Distance: 278' in open area, 196' indoors
• Transmitter Form Factor: Handheld
• Transmitter Battery Type: 2 x AA
• Transmitter Battery Life: Up to 12 hours
• Receiver Outputs: 1 x 1/4", 1 x XLR
• Receiver Power Source: 12V DC adapter (included)
• Polar Pattern: Cardioid
• System Microphone Included: Yes
• Simultaneous Systems: 16 - 23
• Receiver Mount: Tabletop, Rackmount
• Included Microphone Type: Dynamic
