FOR THE TRULY WILD

Psycho HP/BP/LP filter with a laser etched enclosure. Can be pushed past the limit to glitch out into octaves up, down, and envelope folds. The specific medical grade IC chip used allows for a hyper precise filter that sounds like no other. The Evil Fuzz is just that totally psychotic destruction or totally psychotic destruction times two with blooming inverted compression. The CV/Expression in enables you to move the filter up and down in sync with an arpeggiating synth or control it with an expression pedal.

Sounds amazing with synth, guitar, and amplified skateboard.

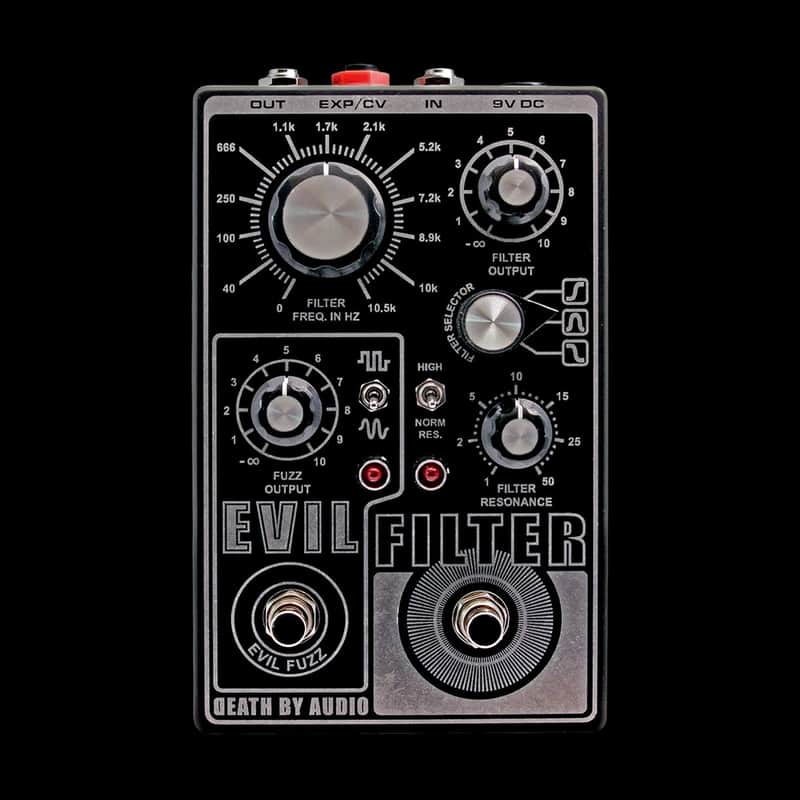

CONTROLS

Filter Freq: Cutoff frequency of the filter. Numbers shown are in Hz.

Filter Output: Volume of the filter section of the pedal.

Filter Selector: Selects between the different filter types -  Low Pass,  Band Pass, and  High Pass.

Filter Resonance: Sets the resonance of the filter in conjunction with the Resonance Switch. WARNING: Will self oscillate at high levels!

Resonance Switch: Sets the range of the Filter Resonance knob - choose between Normal and High.

Fuzz Output: Volume of the fuzz section of the pedal.

Fuzz Type Switch: Choose between two different fuzzes -  lower for a cleaner, more driving fuzz,  higher for a blasted out, blooming, insane fuzz.

EXP/CV Input: Plug in CV control (~0-3.0v) or an expression pedal for external control of the Filter Freq knob. The Filter Freq knob sets the range for the EXP/CV input.

. SPECIFICATIONS

Dimensions: 7.5" x 4.6" x 2.5" (including knobs and jacks).

Weight: 25 oz.

Power: 9V (runs on standard 2.1mm negative center 9V adapter or included 9V battery).

Current Draw: 21 mA.

HAND MADE IN NYC, WHERE ALL GOOD THINGS ARE MADE


GUARANTEED FOR LIFE

All Death By Audio pedals are built with the finest components and constructed in the most robust way we possibly can.

We like to try to destroy things and build these pedals to withstand those urges.

.
