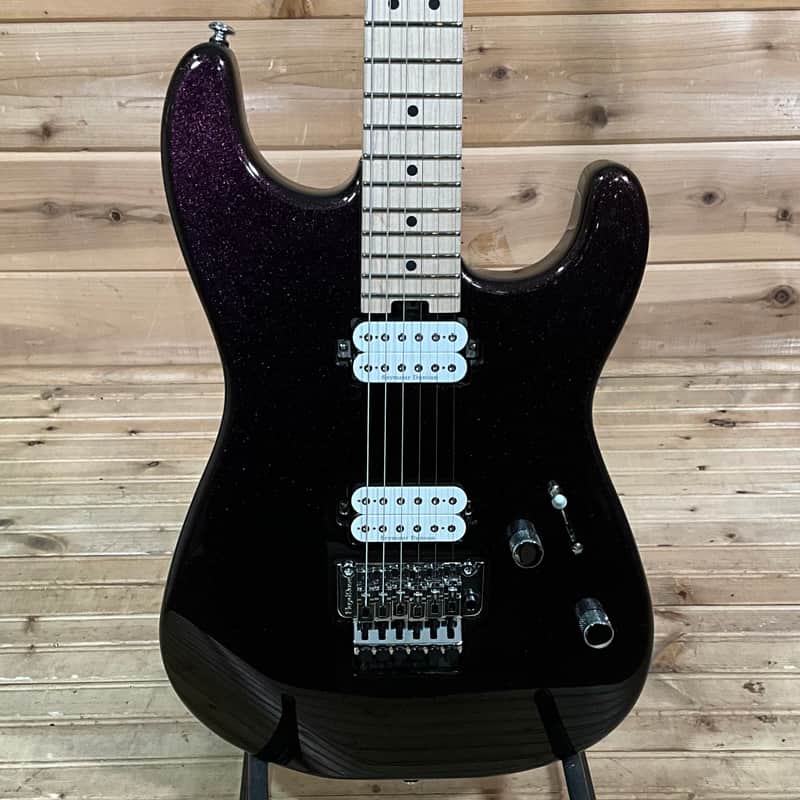

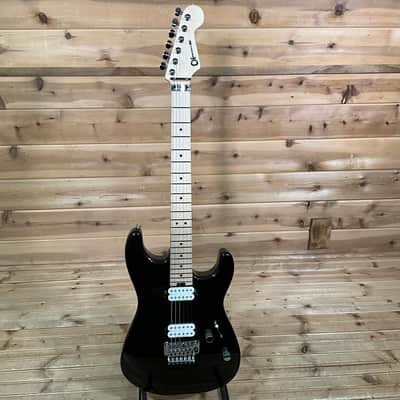

Charvel Pro-Mod San Dimas Style 1 HH FR M Electric Guitar - Chameleon

• Serial Number: KWC2210803
• Weight: 8.4lbs
• Model #: 2975031500

The Pro-Mod Series continues upon Charvel’s storied legacy of innovative excellence in high-performance guitar design, offering the latest technology and top-notch features that modern players need. An ideal instrument for dazzling high-speed playing, the Pro-Mod San Dimas® Style 1 HH FR M boasts scorching sound, stunning style and grin-inducing playing feel and performance.

• Serial Number: KWC2210803
• Weight: 8.4lbs
• Model #: 2975031500

Product SpecsGeneral

• SERIES: Pro-Mod
• ORIENTATION: Right-Hand
• COLOR: Chameleon
• COUNTRY OF ORIGIN: KR

Neck

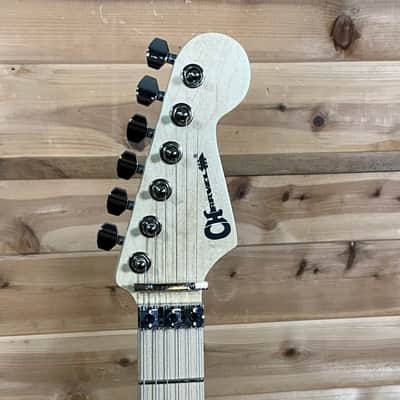

• HEADSTOCK: Licensed Fender® Stratocaster®
• NECK MATERIAL: Maple
• NECK FINISH: Oiled
• NECK SHAPE: Speed Neck with Rolled Fingerboard Edges
• NECK CONSTRUCTION: Bolt-On with Graphite Reinforcement
• FINGERBOARD RADIUS: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• FINGERBOARD MATERIAL: Maple
• POSITION INLAYS: Black Dot
• SIDE DOTS: Black
• NUMBER OF FRETS: 22
• TRUSS ROD NUT: Heel-Mount Truss Rod Adjustment Wheel

• STRING NUT: Floyd Rose® 1000 Series Locking
• NUT WIDTH: 1.6875" (42.86 mm)
• NUT MATERIAL: Floyd Rose® 1000 Series Locking

Body

• BODY: Ash
• BODY FINISH: Satin
• BODY SHAPE: San Dimas® Style 1
• BODY MATERIAL: Ash


Hardware

• BRIDGE: Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed)
• TREMOLO BLOCK: Brass
• PICKUP COVERS: Parchment

• CONTROL KNOBS: Knurled Flat-Top
• SWITCH TIP: Parchment
• HARDWARE FINISH: Chrome

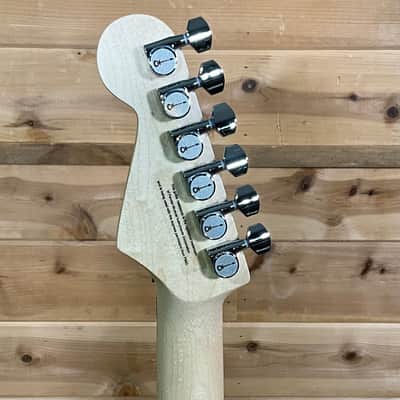

• TUNING MACHINES: Charvel®-Branded Die-Cast
• STRING TREES: Floyd Rose® Retainer Bar
• STRINGS: Nickel Plated Steel (.009-.042 Gauges)
• TREMOLO ARM: Floyd Rose® 1000 Series Locking
• NECK PLATE: 4-Bolt Serialized
• STRAP BUTTONS: Standard

Electronics

• BRIDGE PICKUP: Custom Seymour Duncan® Full Shred™ SH-10B
• NECK PICKUP: Custom Seymour Duncan® Alnico II Pro™ APH-1N
• PICKUP CONFIGURATION: HH
• CONTROLS: Volume (Push/Pull Coil Split), No-Load Tone
• SWITCHING: 3-Position Blade: Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup - (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil

Measurements

• FRET SIZE: Jumbo
• SCALE LENGTH: 25.5" (64.77 cm)

Miscellaneous

• UNIQUE FEATURES: Side Mounted Jack
