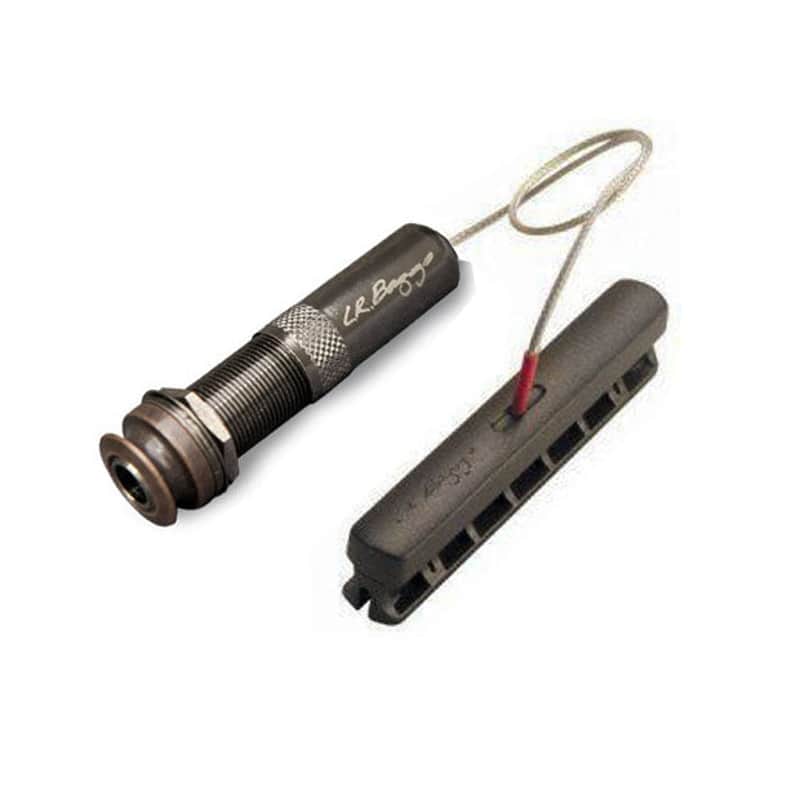

LR Baggs iBeam Passive System Acoustic Guitar Bridge Plate Pickup

Includes the IBeam™ Under-Bridge Transducer Pickup, a pre-wired strapjack, an installation jig, as well as wire clips. The IBeam pickup is designed to work with a preamp, which is not included with this model.

Winner of the M.I.P.A.'s "best pickup" award for 2002 and 2003, the IBeam™ bridge plate transducer features fidelity and sensitivity comparable to top-quality studio microphones at a significantly lower price. It has quickly become a top choice for professionals (especially soloists and players in small ensembles) who require studio-level fidelity on stage.

The IBeam Active System combines a patented bridge plate transducer with an all-discrete class A endpin preamp that enables you to simply "plug-in-and-play". The user-installable IBeam reproduces the natural tone of an acoustic guitar while maintaining perfect string balance and providing full dynamic range.

IBeam Pickup

The IBeam itself is the heart of the system and weighs only 1/3rd oz. This revolutionary bridge plate transducer easily sticks to the bridge plate on the inside of the guitar and does not affect the acoustic tone of the guitar in any way. The IBeam is microphonic enough to hear the rich (but correct) texture of finger squeak and top tapping, but is resistant to feedback and gives you excellent amplified sound without a hint of piezo quack. Included with each IBeam is a placement jig that allows you to install the pickup in minutes and get the ideal placement for the transducer inside the guitar.

This system provides studio-quality fidelity for the most natural acoustic tone available from a pickup. The entire system is ultra light (1/3 oz) and will not alter the acoustic response of the guitar. Quick and easy installation: minimal alteration to guitar, jig included to help with pickup placement (note: jig works on pin bridge guitars only). One size fits all: No more worry about saddle slot sizes or altering the saddle. Action and acoustic sound remain unchanged.

Installation

Installation of the IBeam pickup requires no drilling, as it mounts in the guitar under the bridge. An installation jig is included to align the IBeam in the correct position. The Strapjack Plus (which includes the active preamp) requires a 1/2" hole where your existing strap button is on the base of the guitar (note that some guitars are pre-drilled to accept a 1/2" strap jack). The pickup sensor is 2 7/8" L x 7/16" W x 5/8" H.

Features:

• IBeam Pickup for Steel String Guitars
• Easy to Install!
• Includes Installation Jig
• Includes Pre-wired StrapJack
• Brand New in Box
• Authorize L.R. Baggs Dealer - Full Warranty
