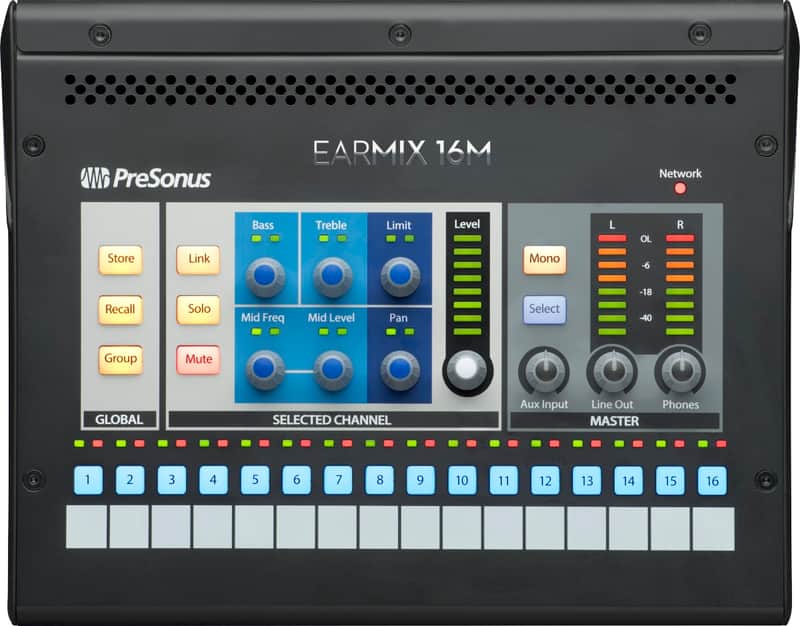

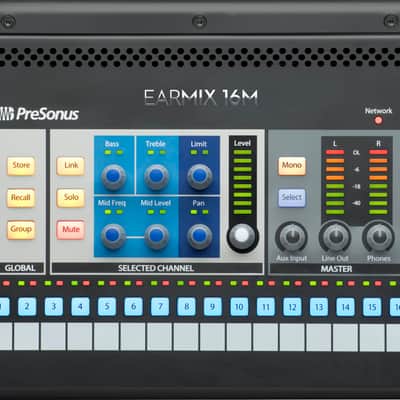

Presonus Earmix 16M Personal Monitor Mixer...

Designed to work seamlessly with PreSonus’ StudioLive Series III family of mixers, yet compatible with other
AVB-enabled systems, the PreSonus EarMix™ 16M personal monitor mixer accepts 16 mono channels of input
via AVB networking. An aux input admits an external source to the local mix. You get stereo channel linking and
channel grouping, along with three-band EQ and limiting for each channel and the main mix, balanced ¼-inch TRS
L/R outputs, and a loud, clear headphone amplifier that can drive low impedance devices such as high quality in-ear-
monitors. Two AVB jacks enable daisy chaining; network up to 24 units with a StudioLive Series III mixer. The EarMix
16M can be powered from the included external power supply or over Ethernet (PoE) from a compatible switch.

Features:
Electronics
VOLTAGE 100-120V

Performance
DIGITAL AUDIO DYNAMIC RANGE 115 dB (A-Weighted, 48 kHz)

Outputs
HEADPHONE OUTPUTS FREQUENCY RESPONSE 20 Hz to 20 kHz, +/-0.5 dB
HEADPHONE OUTPUTS MAXIMUM OUTPUT 150 mW /Channel at 60 Ω
HEADPHONE OUTPUTS TOTAL HARMONIC DISTORTION 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
LINE OUTPUTS CONNECTION TYPE 1/4" TRS, Balanced
LINE OUTPUTS MAXIMUM OUTPUT LEVEL +18 dBu, ±0.5 dBu
LINE OUTPUTS OUTPUT IMPEDANCE 100 Ohms

Hardware
DIGITAL AUDIO AVB AUDIO NETWORK PORTS RJ45
